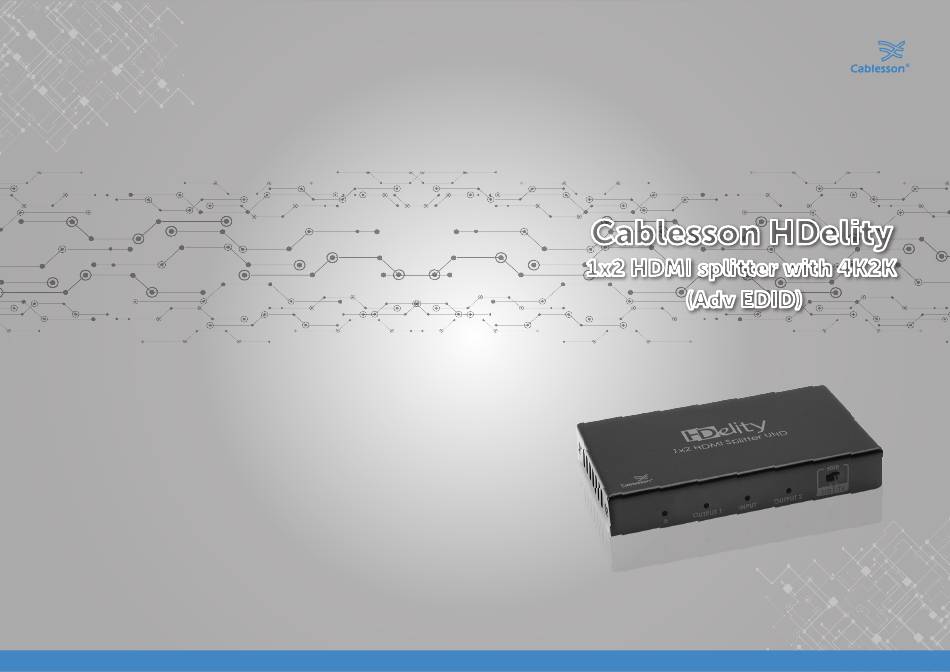

- Page 1 Cablesson HDelity 1x2 HDMI splitter with 4K2K (Adv EDID) User manual V1.0ep © All rights reserved - CABLESSON © All rights reserved - CABLESSON...
- Page 2 Thank you for purchasing our product, we hope you will find it to your complete satisfaction. We at Cablesson take pride in every product we design and create, and will ensure you receive the very best care for your merchandise.
-
Page 3: Table Of Contents
TABLE OF CONTENTS REVISIONS VERSION NO. DATE(DD/MM/YY) SUMMARY OF CHANGES Topic page RDV1 15/02/2017 First Revision Revisions ..................Package contents ................ Introduction ................Features ..................Tech specs ................Supported Input Video Formats ........Operation Controls and Functions .......... Front Panel ................ -
Page 4: Introduction
FEATURES PACKAGE 1x2 HDelity UHD Splitter Supports HDR, UHD, HDMI Deep Colour & 3D Cablesson 5V power supply HDMI 2.1 and HDCP 2.2 compliant Our perfection Video bandwidth: 18Gbps and beyond Resolution up to 8K Supports xvYCC, x.v.Colour & Deep Colour Supports Dolby Digital, DTS-HD and Dolby True-HD audio Easy “plug &... -
Page 5: Supported Input Video Formats
TECHNICAL SPECIFICATIONS SUPPORTED INPUT VIDEO FORMATS Resolution Input Output √ √ 640x480@60/72/75/85 Video Bandwidth 600MHz/18Gbps √ √ 720x400@85 Input Ports 1 × HDMI (Female type) √ √ 800x600@56/60/72/75/85 √ √ 1024x768@60/70/75/85 Output Ports 2 × HDMI (Female type) √ √ 1152x864@75 √... -
Page 6: Operation Controls And Functions
CONNECTION DIAGRAM OPERATION CONTROLS AND FUNCTIONS Front Panel EDID STD TV OUTPUT 1 INPUT OUTPUT 2 1) Power indicator EDID 2) Output 1 connection indicator 3) Input signal indicator STD TV OUTPUT 1 INPUT OUTPUT 2 4) Output 2 connection indicator 5) EDID interface INPUT OUTPUT 1... -
Page 7: Edid Management
(TVs / screens/ projectors). implied warranties and conditions of merchantability and fitness for a particular purpose. In no case shall Cablesson be liable under any legal TV mode - When this is switched on the unit will automatically detect and replicate the sink EDID data of output 1 to the rest. -
Page 8: Technical Support And Warranty
For UK customers: If your product does not work properly because http://www.cablesson.co.uk/pages/faqs of a defect in materials or workmanship, Cablesson (referred to as “the warrantor’’) will, for the length of the period indicated as below, (One Year) which starts with the dale of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished...
