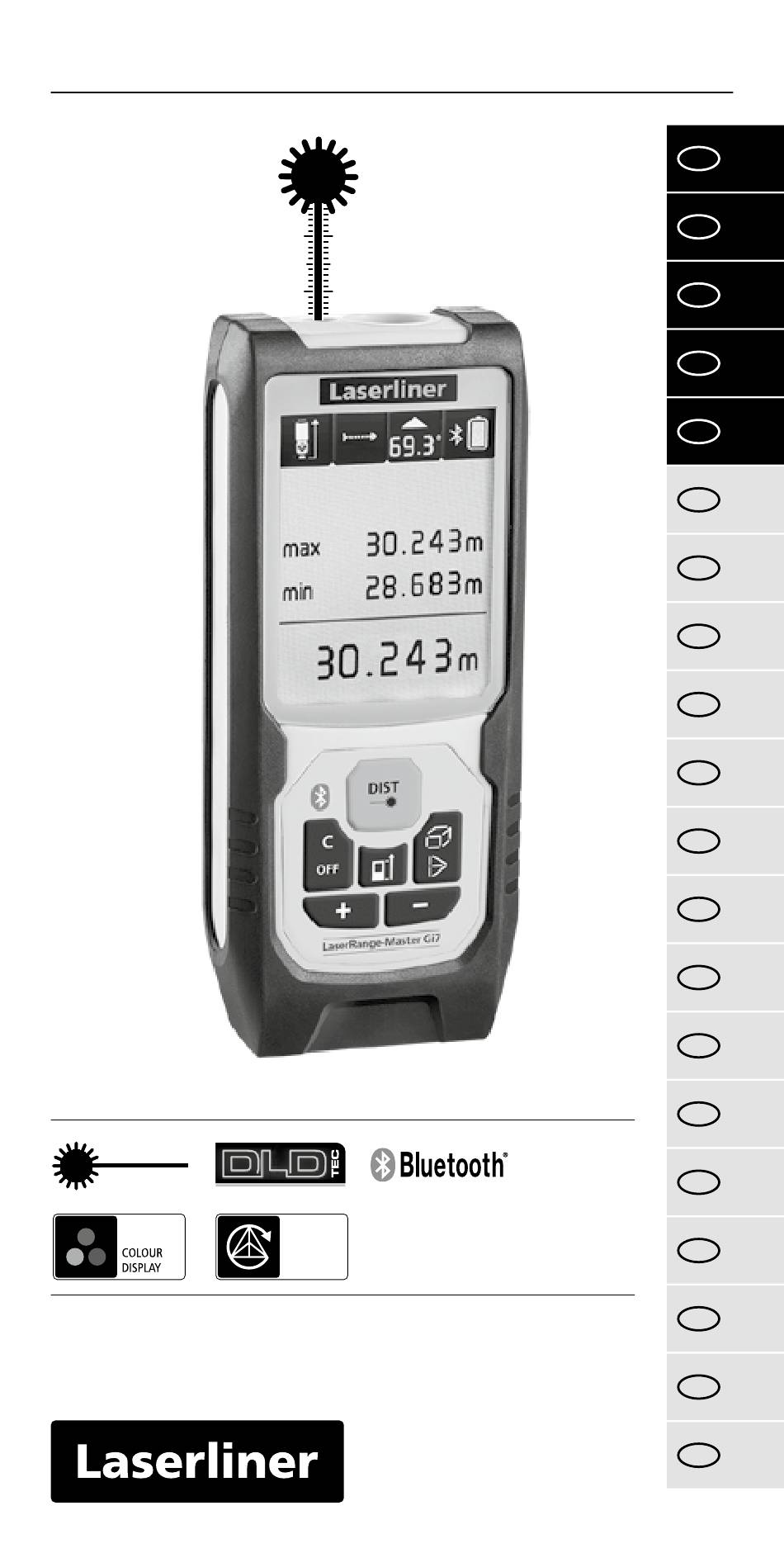

- Page 1 LaserRange-Master Gi7 Pro Laser 515 nm 360° ANGLE FUNCTION...
- Page 2 Laser...
- Page 3 LaserRange-Master Gi7 Pro x · y = m x · y · z = m...
-
Page 4: Function / Application
Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it. - Page 5 LaserRange-Master Gi7 Pro – Tampering with (making changes to) the laser device is not permitted. – Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) Safety instructions Dealing with electromagnetic radiation – The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU.
- Page 6 DISPLAY: a Function display b Measurement point (reference) rear / front c Display min./max. continuous measurement / area / volume / angle function 1 + 2 + 3 d Min/max continuous measurement e Measurement values / measurement results / malfunction / service required f Slope angle device g Battery symbol h Bluetooth...
-
Page 7: Inserting Batteries
LaserRange-Master Gi7 Pro Inserting batteries Open the battery compart- ment and insert batteries (2 x typ AA) according to – the symbols. Be sure to pay attention to polarity. Switch on, measure and switch off: Device on Laser on Measure... -
Page 8: Area Measurement
Addition and subtraction of lengths: Result Length Laser on Laser on etc. (Device on) + – 1x 1x Min/max continuous measurement: Min/max Measurement starts Stop automatically The LC display shows the max value, the min value and the current value. Area measurement: Area Laser on... -
Page 9: Volume Calculation
LaserRange-Master Gi7 Pro Volume measurement: Volume 1. measurement 2. measurement 3. measurement Volume calculation: Volume 1. volume + – 1x 1x etc. Result etc. Angle function 1: Angle function 1 Measurement Results The measurement results are determined automatically by the 360°... -
Page 10: Angle Function
Angle function 2: Angle 1. measurement 2. measurement function 2 Results The measurement results are determined automatically by the 360° inclination sensor. The back of the device can be used as a reference surface for measuring angles. Angle function 3: Angle 1. -
Page 11: Data Transfer
LaserRange-Master Gi7 Pro Data transfer The laser distance meter features a Bluetooth * function that enables ® wireless data transfer to mobile devices with a Bluetooth * interface ® (e.g. smartphone, tablet). The system prerequisites for a Bluetooth * connection are specified ®... -
Page 12: Important Notices
After starting the app and activating the Bluetooth * function, ® a connection can be set up between a mobile device and the laser distance meter. If the app detects several active measuring devices, select the matching device. This measuring device can be connected automatically the next time it is switched on. - Page 13 LaserRange-Master Gi7 Pro Technical Data (Subject to technical changes without notice. 19W07) Distance measurement Precision (typical)* ± 2 mm Measurement range (inside)** 0,05 m - 70 m Angle measurement Measuring range ± 90° Resolution 0,1° Precision 0,1° Laser class 2 < 1 mW...
- Page 15 LaserRange-Master Gi7 Pro...
- Page 16 LaserRange-Master Gi7 Pro SERVICE Umarex GmbH & Co. KG – Laserliner – Möhnestraße 149, 59755 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: +49 2932 638-333 info@laserliner.com Umarex GmbH & Co. KG Donnerfeld 2 59757 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: -333...
