1
PUSH IN THE
PIN ON EACH
LEG AND
EXTEND THEM
DOWN FULLY
UNTIL THE PINS
POP OUT.
5
C
A:
PASS THE CONNECTION END FROM THE
STRATACAM MINI THROUGH THE ENCODER IN
THE DIRECTION SHOWN (B).
C:
REINSERT THE LOCKING PIN.
8
MOUNTING OF THE
MONITOR AT THE POSITION CIRCLED.
2
OPEN THE
THREE LEGS TO
THEIR MAXIMUM POSITION.
6
A
B
ADD THE OPTIONAL WEIGHT
ON TOP OF TRIPOD.
9
MOUNT THE BOTTOM MOUNTING
POSITION THE
BRACKET AND TIGHTEN AS SHOWN.
BE SURE TO NOT OVER TIGHTEN
AS THIS COULD CAUSE DAMAGE.

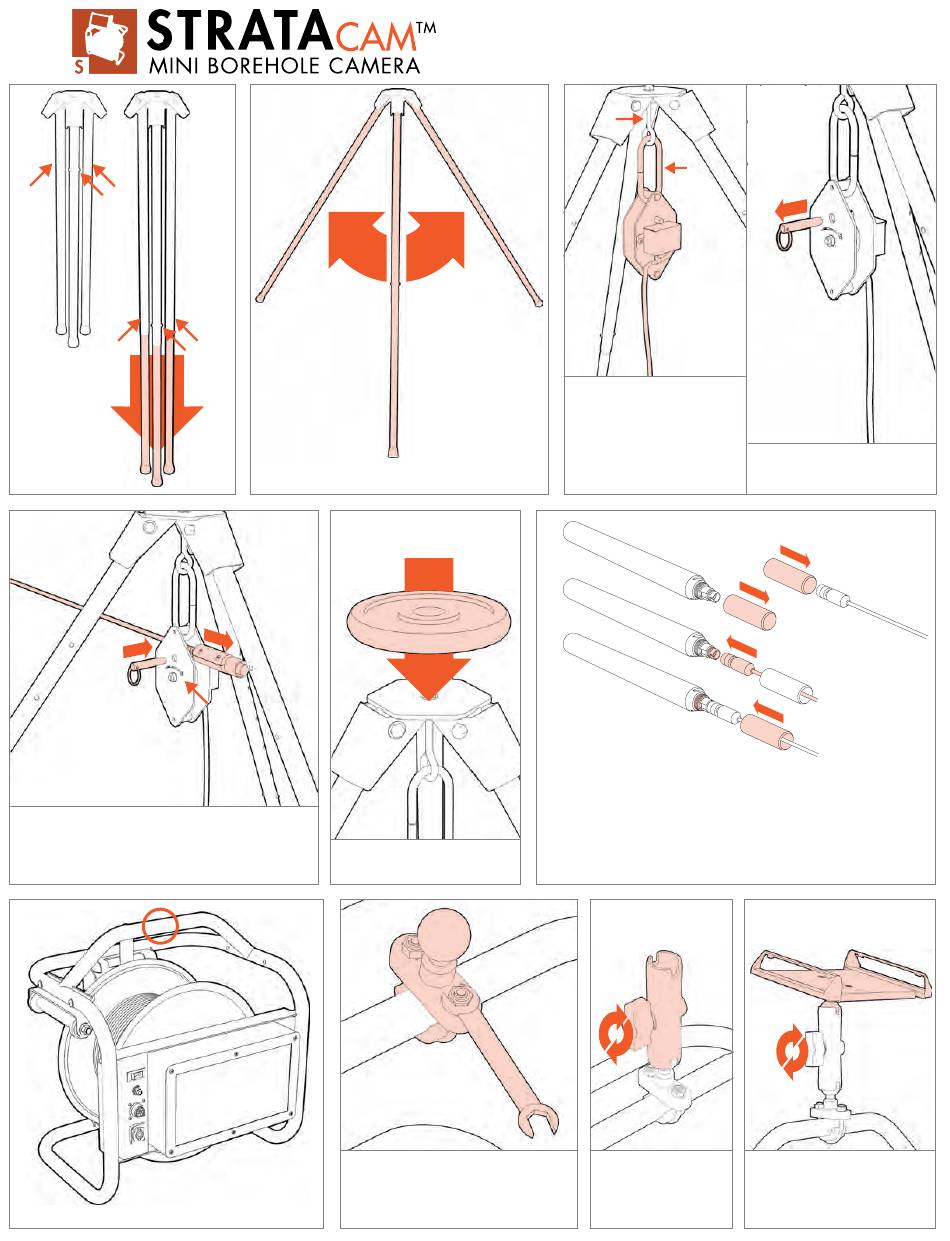

QUICK START GUIDE
3
C
OPEN UP THE
CARABINER (A) ON THE
ENCORDER (B) AND
ATTACH THE ENCODER TO
THE HANGING BOLT (C)
UNDERNEATH THE TRIPOD.
7
A
D
A:
UNSCREW THE CAMERA SHEATH.
B:
LOCATE THE CONNECTION END AT THE END OF THE
BOOM ARM ON THE STRATACAM MINI™ AND PASS
THROUGH THE CAMERA SHEATH.
C:
CONNECT THE CONNECTION END TO THE CAMERA.
D:
SLIDE THE CAMERA SHEATH DOWN TO THE CAMERA
AND SCREW INTO CAMERA.
10
ATTACH THE
MOUNTING ARM AS
SHOWN, ROTATING
THE MARKED KNOB.
4
A
B
REMOVE THE LOCKING PIN
FROM THE ENCODER.
B
C
11
ATTACH THE MONITOR
MOUNT AS SHOWN,
ROTATING THE MARKED
KNOB ONCE AGAIN.
