Summary of Contents for Omega Digitech M202

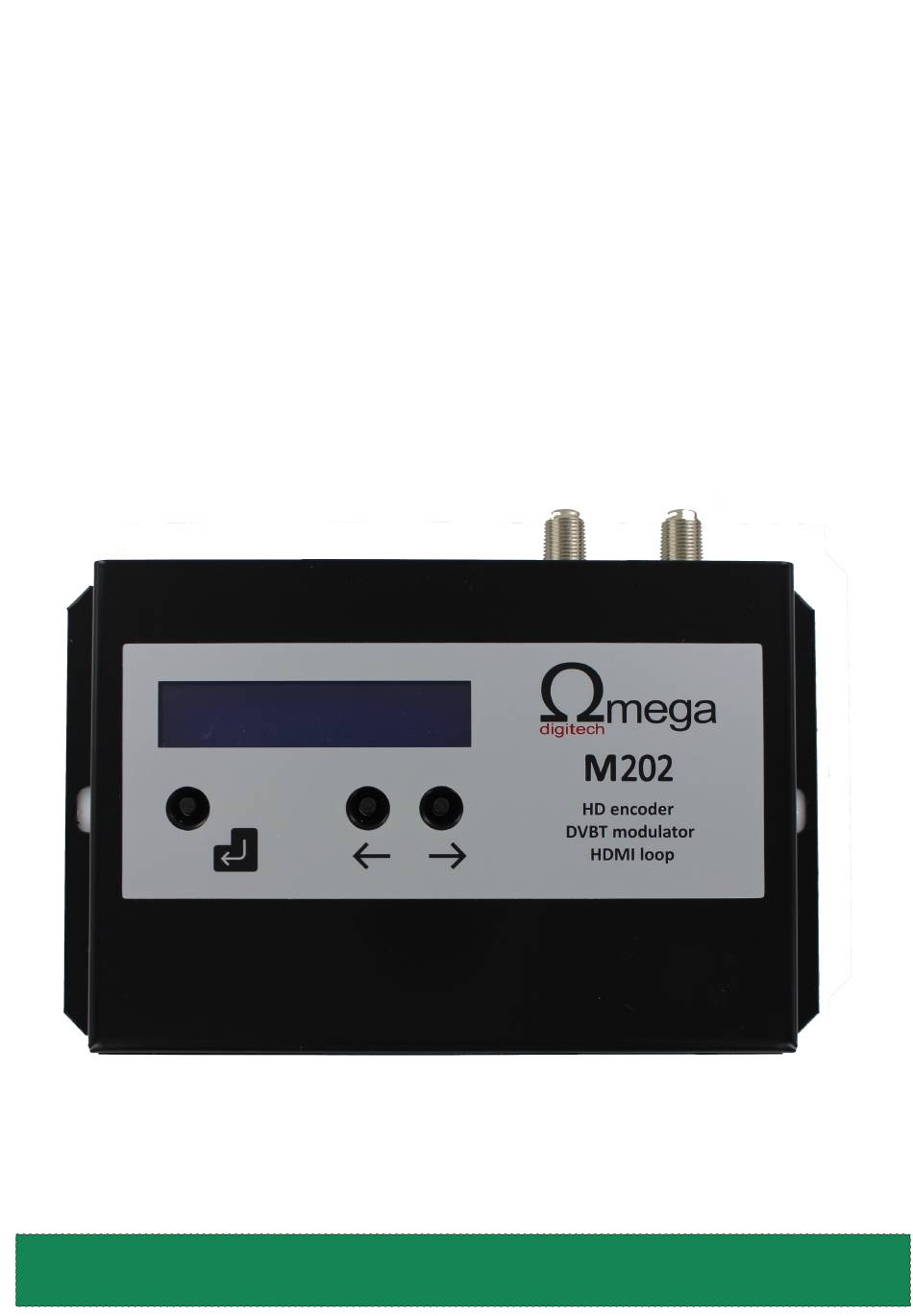

- Page 1 M202 HD encoder DVBT modulator HDMI loop USER MANUAL...
-
Page 2: Table Of Contents
DVB-T signal. Stand-alone confi guration is made easy through 3 tact switches and ergonomic menu’s. To make the configuration of the M202 ultra simple, a special software ia available that you can download it from our wbsite www.onetrade.gr Contents 1 - Safety considerations ................3... -
Page 3: Safety Considerations
M202 USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modifi... -
Page 4: Description Of The Different Elements
M202 USER MANUAL 2 - Description of the different elements Power supply input (5V/2A) RF output USB input (PC programming) HDMI input RF input HDMI output Display ENTER button LEFT button RIGHT button Ωmegadigitech ©2018 PAGE 4... -
Page 5: Software Settings
M202 USER MANUAL 3 - Software settings : The M202 has a quick menu to allow for quick basic settings. For adnanced settings an andvanced menu is available. 3.1 - Quick menu : To enter the quick menu please push following sequence of buttons... -
Page 6: Advanced Menu
M202 USER MANUAL 3.2 - Advanced menu To enter the advanced menu please push following sequence of buttons M202 19.0 DVB M202 19.0 M202 19.0 Set the output frequency SETTINGS FREQUENCY 474000 KHz M202 19.0 M202 19.0 [8 Select the bandwidth. - Page 7 M202 USER MANUAL M202 19.0 NIT M202 19.0 TS M202 19.0 Set the NIT version RELEASE SETTINGS M202 19.0 M202 19.0 Set the Network ID NET ID. 10000 M202 19.0 M202 19.0 Set the original network ID for your country ORIG.
-
Page 8: Programming Using A Pc
First, please install the software TMHDIFace on your PC. ΜYou can download this software from our internet site www.onetrade.gr After installation of this software, connect the M202 using a USB cable (not included) to your per- sonal computer. Then launch the program TMHDIface.
