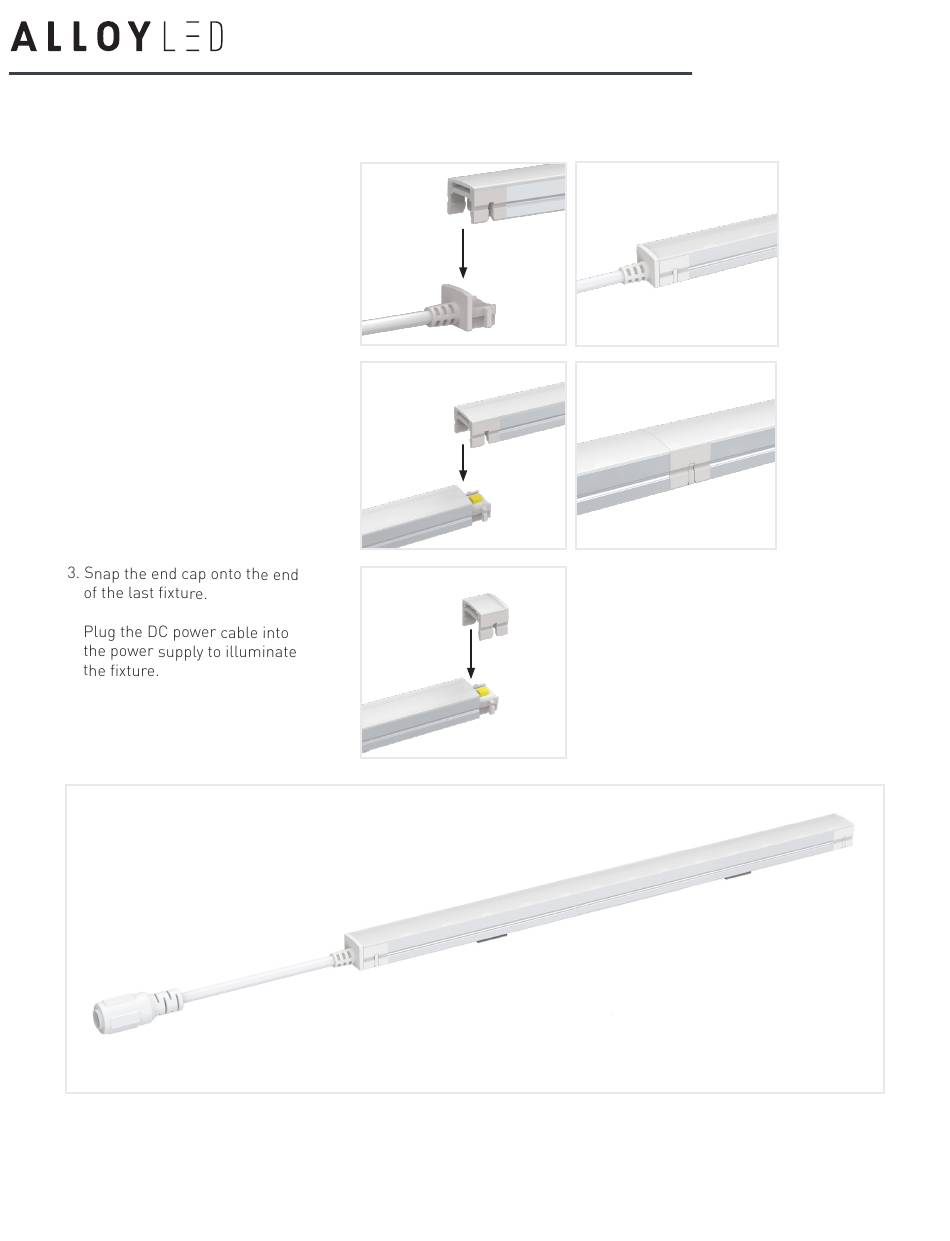

Assembling PolyForm Fixtures
1. Snap the front connector of
the PolyForm fixture to the
wire socket of the plug from
the top down.
2. Follow this same method
to seamlessly link fixtures
and connectors to create the
desired design.
www.AlloyLED.com
page 1 of 2
®
®
See Next Page For Mounting Instructions
|
Call: 800.910.LEDS [5337]
Specifications subject to change without notice.
Note: PolyForm is 12V DC - Do Not Connect To 120V AC Power
| Text: 510.400.6690
PolyForm
Modular LED Light Bars
™
Installation Instructions
|
solutions@AlloyLED.com
v1
Advertisement
Table of Contents
Related Manuals for Alloy LED PolyForm
Summary of Contents for Alloy LED PolyForm
- Page 1 ® ® Installation Instructions Assembling PolyForm Fixtures Note: PolyForm is 12V DC - Do Not Connect To 120V AC Power 1. Snap the front connector of the PolyForm fixture to the wire socket of the plug from the top down.
- Page 2 This is NOT a result of the lighting components. 1. Remove the screw from the front of the PolyForm fixture. Slide the connection cap off. (This is the receiving end where the PCB/diodes are not visible.)
