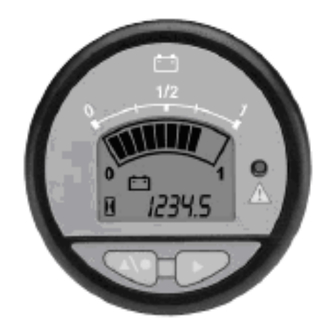

enGage II: Programmable Battery Discharge
Technical Specifications
Operating Voltage Range 12V-48VDC nominal voltage, +/-
25%
Operating Current Range Nominal- 14 mA, maximum 20
mA. Values reflect key switch in "on" position
Display: LCD with 10-segment bar and 5 digit numeric
(5mm high)
Hour Meter Range: 99,999 Total Hours
Hardware: Mounting Bracket
Panel Cutout: 52 mm / 2 1/16" diameter
Shock SAE J 1378 Amplitude
44-55 g, half sine, 9-13 ms duration
Vibration SAE J 1378 Double amplitude of 1.53mm with
frequency sweep for 10-80-10 Hz (20 g max) at 1 minute
intervals
Storage Temperature: -50°C to +90°C
Operating Temperature: -40°C to +85°C
Humidity: 95% RH (non-condensing)
IP Rating: 65 Front & Rear with AMP connector installed
Indicator
3003R-57X-0001
Description
(V+) Supply voltage positive
terminal
(V-) Supply voltage negative
terminal
Key switch (+): When V+ is
applied this switch operates the
.
gauge display
MOSFET output: MOSFET
(0.5A) open drain type internally
tied to V-.
Setup Enable (+): When V+
applied, gauge can be
programmed via panel buttons.
Hour Meter Enable (+): When
V+ applied, accumulation of
time occurs when key switch on.
AutoRange Switch (-):
No connection = 24 04 48 VDC;
Connection = 12 or 36 VDC
AMP
Pin #
4
8
6
7
2
3
1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curtis enGage II 3000 Series
Summary of Contents for Curtis enGage II 3000 Series
-
Page 1: Technical Specifications
enGage II: Programmable Battery Discharge Indicator 3003R-57X-0001 Technical Specifications Description Pin # Operating Voltage Range 12V-48VDC nominal voltage, +/- (V+) Supply voltage positive terminal Operating Current Range Nominal- 14 mA, maximum 20 mA. Values reflect key switch in "on" position (V-) Supply voltage negative terminal Display: LCD with 10-segment bar and 5 digit numeric... - Page 2 Entering the Configuration Mode Configuration Notes The gauge remains in configuration mode for 30 To change the Battery Discharge Profile V+ must be seconds without input from the user. When configuring connected to the set up pin (2). After V+ is applied to each function (time-of-day, BDI Profile), you must pin 2 press and hold the left button until the time of day enter in all data for that function for it to be saved.
-
Page 3: Safety Instructions
This unit is designed for a mounting panel loss of profits or other damages. Returned goods will thickness of 0.8mm-6.4mm. not be accepted unless identified by a Curtis Return Panel cutout: 52mm diameter dash panel Material Authorization (RMA). All specifications are hole. -
Page 4: Installation Procedure
Once installed correctly, attempts to remove bracket from gauge may result in damage to the bracket. Curtis enGage™ II instruments are mounted in a 52mm round cutout. Serrations on the barrel of the gauge, combined with the mounting bracket provided, insure fast and trouble free installation.
