JDW ZQ626 Instruction Manual

3000w leaf blower
Hide thumbs

Advertisement

Quick Links

Download this manual

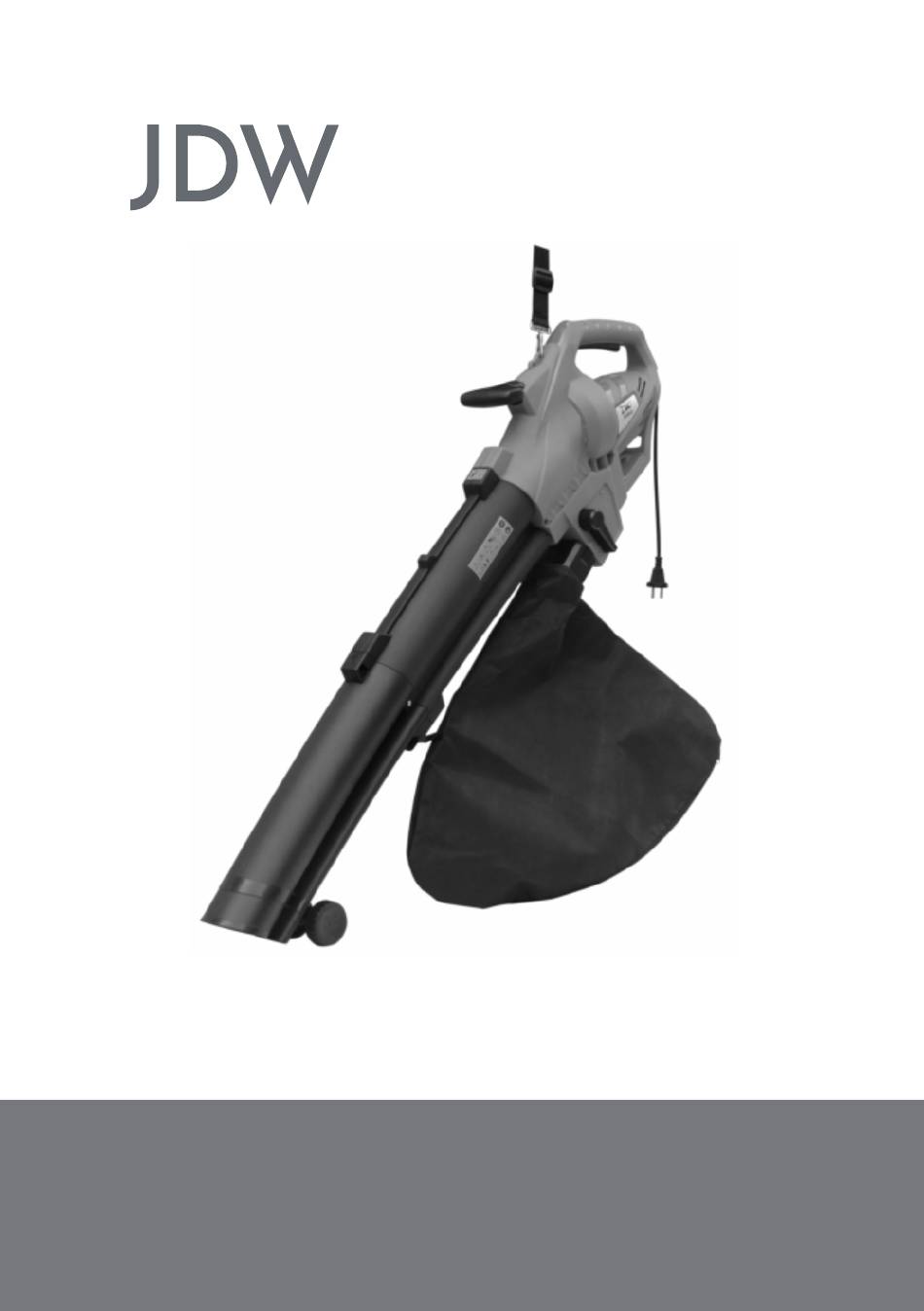

ZQ626 15102018
3000W Leaf Blower
Instruction Manual
1
Model Ref: ZQ626

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZQ626 and is the answer not in the manual?

Questions and answers

Related Manuals for JDW ZQ626

Summary of Contents for JDW ZQ626

  • Page 1 ZQ626 15102018 3000W Leaf Blower Instruction Manual Model Ref: ZQ626...

  • Page 2: Table Of Contents

    INTRODUCTION Thank you for choosing this Leaf Blower. This product is manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your device. Remove all packaging material. You may wish to keep the packaging for future use or storage of your device.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 Damaged or entangled cords increase the risk of electric shock. - When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. - If operating a power tool in a damp location is unavoidable, use a residual current device (RCD with a tripping current of 30 mA or less) protected supply.
  • Page 5 all times. This enables better control of the power tool in unexpected situations. - Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

  • Page 6: Special Safety Requirements

    Service - Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. SPECIAL SAFETY REQUIREMENTS For outdoor use only. Do not use when it is raining. Check that the ventilation slots are not blocked.

  • Page 7: Product Overview

    PRODUCT OVERVIEW 1. Wheel 2. Blower/Vacuum Tube 3. Blower/Vacuum Body 4. Auxilary Handle 5. Hole For Belt Hook 6. Shoulder Belt 7. Switch Trigger 8. Blower/Vacuum Selector Lever 9. Collection Bag...

  • Page 8: Before First Use

    BEFORE FIRST USE WARNING! The Vac-Blower must not be used or switched on until it has been fully assembled. - Insert tube 2-2 into tube 2-1 forcibly. Fasten the screw until they connect well (Fig. 3). Then put the whole tube into the machine body and secure fixed by other two provided screw, see Fig.

  • Page 9: Using The Machine

    IMPORTANT - Do not use the Vacuum-Blower to suck up water or very wet debris. - Never operate the Vacuum-Blower without the debris collection bag fitted. USING THE MACHINE Blower mode Inspect the area to be worked before starting. Remove any objects or debris that could be thrown, jammed or become entangled in the Vacuum-Blower.

  • Page 10: Maintenance, Cleaning And Storage

    MAINTENANCE, CLEANING AND STORAGE Warning! Before carrying out any checks or maintenance operations, disconnect the plug from the electric power supply. - Check your machine regularly before starting the work. Make sure that all nuts, bolts and screws are tight and that the guards are fitted correctly.

  • Page 11: Specification

    SPECIFICATION DT2201A,DT2202A,DT2203A, Model No. DT2204A,DT2205A,D2206A, DT2200A Voltage / Frequency 220V-240V~ , 50Hz 1800W/2000W/2400W/2500W Input Power 2600W/2800W/3000W No Load Speed 15,000/min Max. air speed: 270KM/H 270km/h Max. air volume 13.2m³/min Collection bag Mulching rate 10 : 1 Net Weight 3.0kg Sound pressure level(in accordance with EN 50636-2- 83.54dB(A) K=3dB 100)
  • Page 12 DISPOSAL INFORMATION IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE APPLIANCE IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, the Pressure Washer must NOT be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
  • Page 13 JD Williams Ltd. Manchester, UK, M60 6ES M606ESO1...
