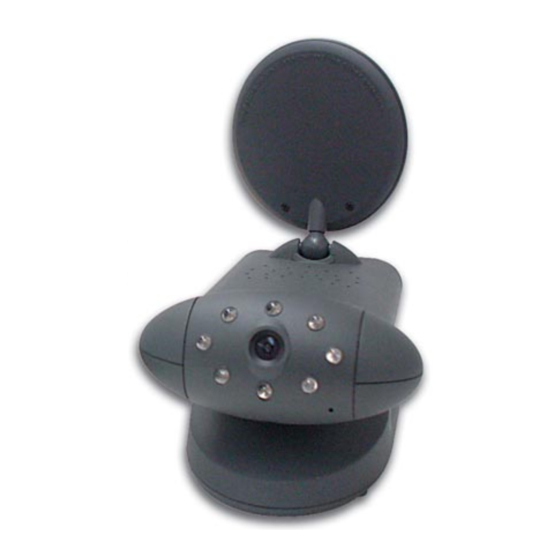

AVMOD9 – WIRELESS B/W 2.4GHz CAMERA SYSTEM WITH IR LEDS
AVMOD10 – WIRELESS COLOUR CAMERA SYSTEM 2.4GHz

1. Content

• Camera (AVMOD9BC or AVMOD10CC)
• Receiver (AVMODRX)
• A/V cable (RCA to RCA for NTSC (not incl.); RCA to SCART for PAL (incl.)
• Two adapters
• 8 AA-batteries
• Detailed manual

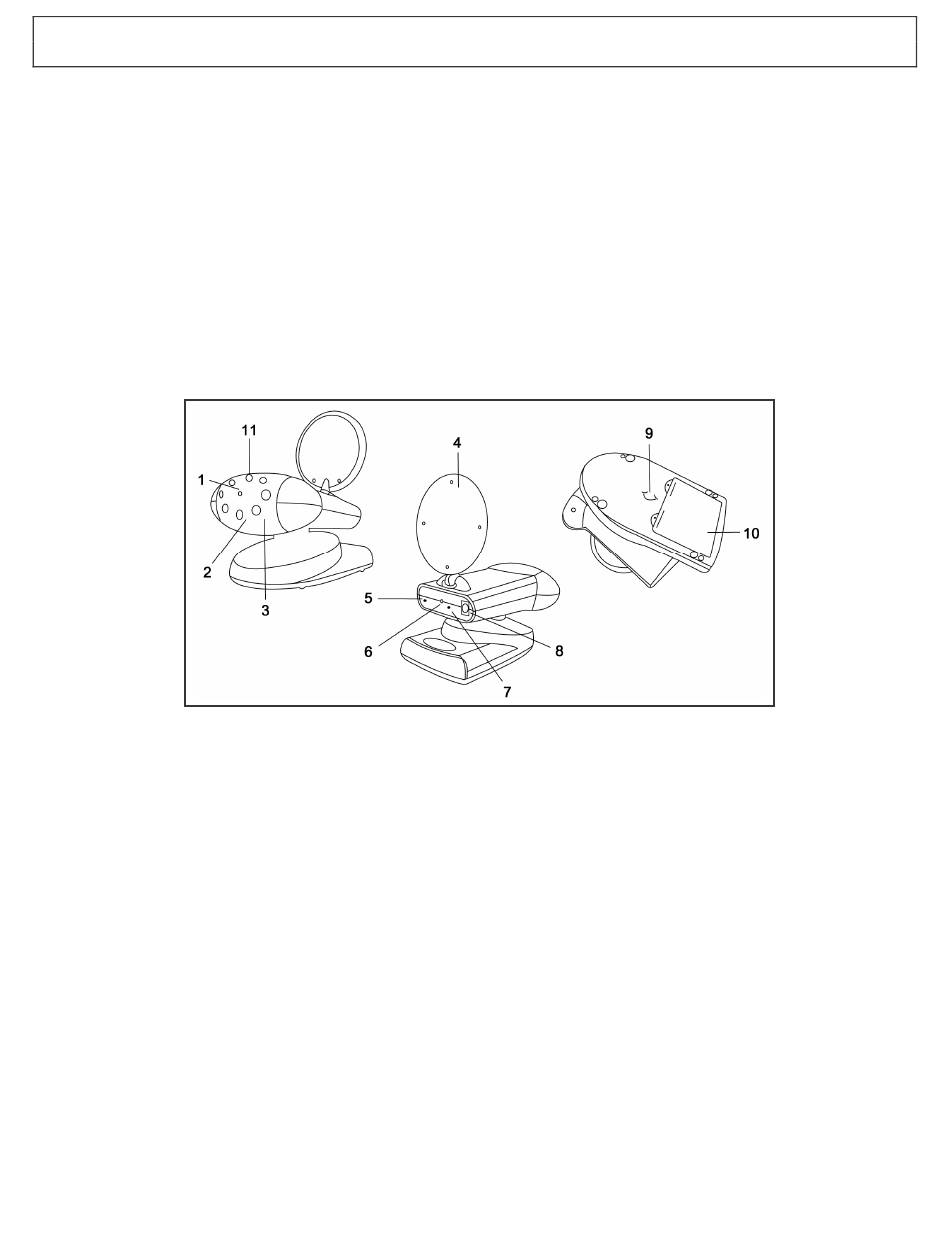

2. Camera Description

1. Lens : automatic focalisation, without additional adjustments by the user.
2. Lens body : can rotate 170°
3. Microphone.
4. 2.4GHz A/V antenna (front) : transmits A/V signals. The antenna has a limited rotation range (see "Orienting Devices"
on p. 3).
5. Channel switch : Put the switch on the desired number to select the appropriate channel. Select the same channel for
the camera and the receiver.
6. ON/OFF LED
7. OFF/ON switch : power switch
8. Plug for 9V-adapter
9. Mounting hole
10. Battery compartment
11. IR LEDs : 8 IR LEDs for night vision (ONLY FOR AVMOD9)
AVMOD9 & 10
1
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVMOD9 and is the answer not in the manual?

Questions and answers

Related Manuals for Velleman AVMOD9

Summary of Contents for Velleman AVMOD9

  • Page 1: Camera Description

    6. ON/OFF LED 7. OFF/ON switch : power switch 8. Plug for 9V-adapter 9. Mounting hole 10. Battery compartment 11. IR LEDs : 8 IR LEDs for night vision (ONLY FOR AVMOD9) AVMOD9 & 10...

  • Page 2: Installing The Camera

    Remark : For PAL systems the connector on the A/V component is a SCART socket. Connect the SCART connector (RECEIVER) with the SCART socket (IN) of the A/V component and connect the RCA connector with the receiver. AVMOD9 & 10...
  • Page 3 Night Vision (ONLY FOR AVMOD9) • The AVMOD9 is equipped with 8 IR LEDs capable of picking up clear images in low-light conditions. Put the OFF/ON/NIGHT switch at the back of the device in the NIGHT position to engage the night vision function. Deactivate the night vision function when you don't need it as this saves electricity.

  • Page 4: Troubleshooting

    • Check the setting of the receiver's channel DIP switches. 10. Maintenance • Protect your AVMOD9 or AVMOD10 from moisture. Water contains minerals that corrode electronic circuits. • Do not store this device in dusty or dirty environment to avoid damage to moving parts.
