LB management
eNet radio centre plate
eNet radio centre plate
Art. no.: FM..1701..
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
The radio communication takes place via a non-exclusively available transmission path, and is
therefore not suitable for safety-related applications, such as emergency stop and emergency
call.
These instructions are an integral part of the product, and must remain with the end customer.
2
Device components
(1)
Insert
(2)
Frame
(3a) Blind/shutter up / light on, brighter
(3b) Blind/shutter down / light off, darker
(4a) Disabling function
(4b) Memory function
(5)
Function LED
Red = Disabling function active
Green = Memory function active
(6)
Status LED
Green = Blind/shutter activated / light switched on
red = sending status
red flashing = error message, programming mode
or resetting to the default setting
32597903
J0082597903

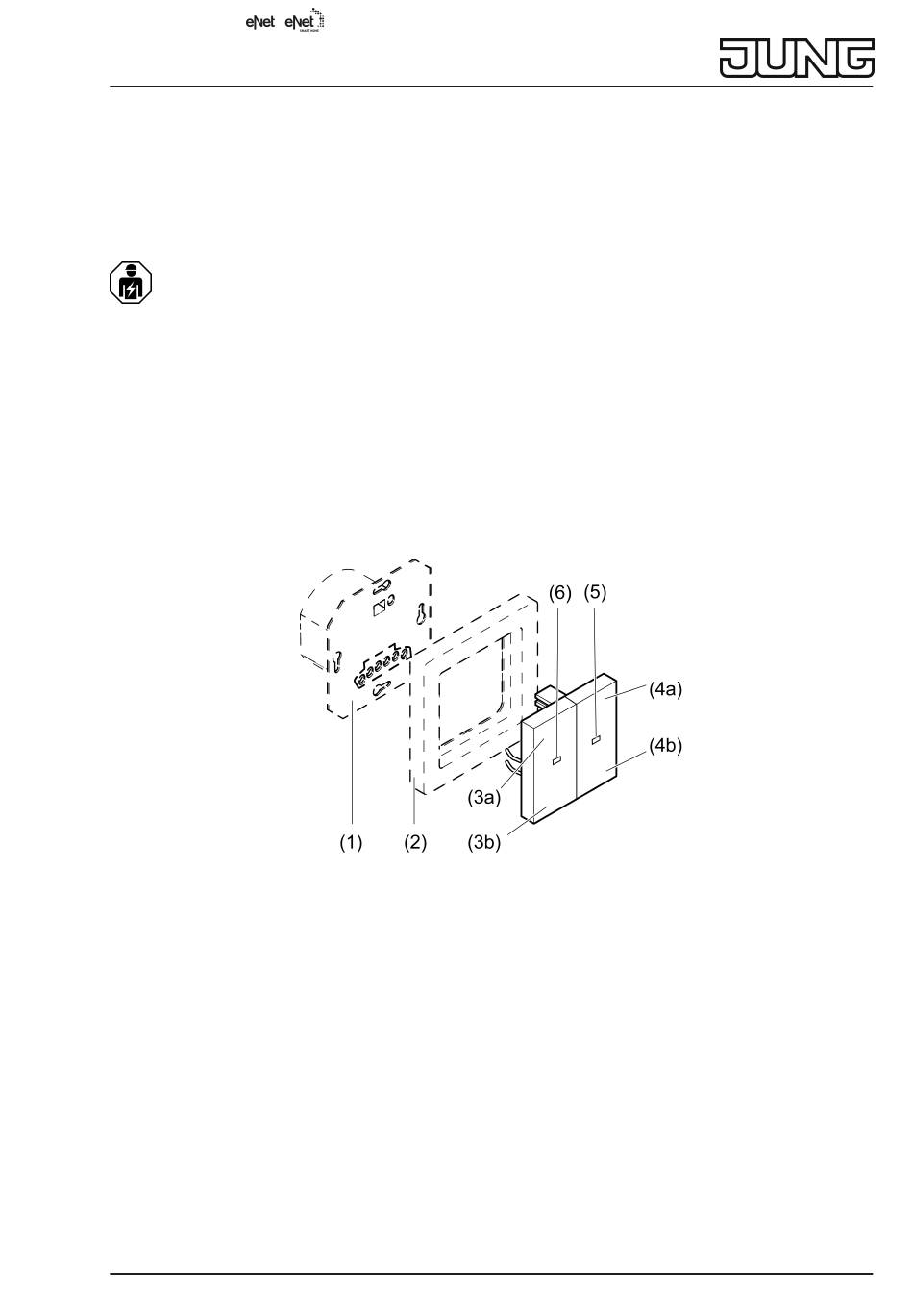

Figure 1: Device components
1 / 29
07.08.2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the FM 1701 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Jung FM 1701 Series

Summary of Contents for Jung FM 1701 Series

  • Page 1 LB management eNet radio centre plate eNet radio centre plate Art. no.: FM..1701.. Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock.

  • Page 2: Intended Use

    LB management eNet radio centre plate Intended use – Manual, radio- and time-controlled operation of e.g. Venetian blinds, shutters, awnings, lighting or fans – Transmitter for radio communication of switching, dimming and blind movement com- mands – Operation of switching, dimming or Venetian blind insert or 3-wire extension from LB man- agement When operating with the eNet Server, operation and signalling could vary from what is de- scribed here.
  • Page 3 LB management eNet radio centre plate – The response after mains voltage return can be configured with the eNet server. Operation of Venetian blind and shutters Moving the blind/shutter ￭ Press button (3a) or (3b) for longer than one second. The blind/shutter moves in the desired direction to the end position or stops when the but- ton is pressed again.

  • Page 4: Activate Functions

    LB management eNet radio centre plate Save switch-on brightness ￭ Adjust the brightness. ￭ Press the buttons (3a) and (3b) for longer than 4 seconds. Switch-on brightness is saved. For confirmation, the light is switched off briefly and switched on again. Delete switch-on brightness ￭...
  • Page 5 LB management eNet radio centre plate In memory operation, the function LED (5) turns continuously green. It is only possible to switch to memory operation if at least one switching time has been saved. Activating / deactivating the disabling function The disabling function disables extension operation and operation via radio and deactivates all automatic functions.
  • Page 6 LB management eNet radio centre plate 10 Commissioning DANGER! Mortal danger of electric shock. During commissioning, cover the parts carrying voltage on radio transmitters and ac- tuators and in their surrounding area. The attachment can also be commissioned with eNet Server as an alternative to the com- missioning described here.

  • Page 7: Technical Data

    LB management eNet radio centre plate The status LED flashes quickly for 5 seconds. The attachment is disconnected from the radio transmitter or radio actuator. The attachment and radio transmitter or radio actuator exit the programming mode automatically. If there several connections or scene buttons for a radio transmitter, all connections must be disconnected individually.
  • Page 8 LB management eNet radio centre plate Parameters Setting options Explanations Basic setting The flash frequency can be changed using para- meters. The parameter "Switch-off delay" is used for the pulse time and the parameter "Switch-on delay" for the pause time. Continuous on The output switches to continuously "On".
  • Page 9 LB management eNet radio centre plate Parameters Setting options Explanations Basic setting The output switches to continuously "On". All op- erations of radio transmitters or directly on the at- tachment are ignored. Continuous off The output switches to continuously "Off". All op- erations of radio transmitters or directly on the at- tachment are ignored.
  • Page 10 LB management eNet radio centre plate Parameters Setting options Explanations Basic setting Flashing Switch-on starts flashing and switch-off stops flashing. The default flash frequency is 1 Hz. This frequency is also the maximum flash frequency. The flash frequency can be changed using para- meters.
  • Page 11 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Allow extension On, Off Allows operation via wired extensions. unit operation Basic setting: On Extended channel settings Sensor channel Parameters Setting options, Basic Explanations setting Manual commis- On, Off Blocks manual commissioning for the sensor sioning Basic setting: On...
  • Page 12 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting automatically entered in the "Run-on time" para- meter and this then also applies to all switching and dimming commands. Off: Only motion detector commands lead to switch- ing on for the duration of the transmitted or set run-on time.
  • Page 13 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Manual saving of On, Off Disables the saving of the current actuator state the scene values Basic setting: On (On/Off) as scene value in an actuator for a com- mand via a transmitter.
  • Page 14 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Deactivate twi- On, Off Defines the behaviour of the output on deactivat- light switching Basic setting: Off ing the twilight function. Only visible when the pri- state ority for the twilight function is 0. Invert switching On, Off Inverts the switching output from NO contact...
  • Page 15 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Dim down ramp 0 s … 24 h Time until reaching minimum brightness. The Basic setting: 0 s light is dimmed to minimum brightness and then switched off. Only applies to switch-off with trans- mitters (short operation).
  • Page 16 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Operating hours 0...65535 The time is counted during which the load is Basic setting: Current switched on. This parameter can be reset to "0", value for example after exchanging the load. The Reset button is used to reset the counter to "0".
  • Page 17 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Priority, lock-out 0...4 Specifies the priority for recalling and removing a protection Basic setting: 1 scene of type Lock-out protection for the channel. Note: 1 is the highest priority and 4 the lowest. 0 means no priority.
  • Page 18 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting function brightness", then the system dims to the set minimum brightness when the hotel function is activated. Brightness hotel 0.4 ... 100 % Brightness to which the light is switched when the function Basic setting: 20 % hotel function is activated, if switched off.
  • Page 19 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting The Reset button is used to reset the counter to "0". The device must be programmed to apply the change. Operating hours, 0...65535 The time is counted during which the load is Down Basic setting: Current switched on (relay contact closed).
  • Page 20 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Behaviour after no change Behaviour of the output when a block is removed. the end of the Last value disabling function Down Basic setting: No change Manual saving of On, Off Disables the saving of the current Venetian blind the scene values...
  • Page 21 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Activate wind 0 ... 100 % Defines the behaviour of the output on activating alarm blind posi- Basic setting: 0 % the wind alarm. tion Recall wind alarm 0 ...
  • Page 22 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Deacitvate twi- 0 ... 100 % Defines the slat position of the output on deactiv- light slat position Basic setting: 0 % ating the twilight function. Only visible when the priority for the twilight function is 0 and the Vene- tian blind operating mode is set.
  • Page 23 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Switch-on delay, 0 s … 24 h Switch-on delay for output 2 of a 2-channel in- output 2 Basic setting: 2 min sert, e.g. for fan control in sanitary facilities. Switch-off delay, 0 s …...
  • Page 24 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Switch-off warn- On, Off If the switch-off warning is active, the light is not Basic setting: Off switched off directly. The light briefly goes off 30, 20 and 10 seconds before permanent switch-off. During the switch-off warning, a switch-on com- mand activates direct switch-on.
  • Page 25 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Minimum switch- 100 ms ... 10 sec Limits the switching speed of the device by in- ing repeat time Basic setting: 100 ms creasing the value, in order to protect the load, for example.
  • Page 26 LB management eNet radio centre plate Parameters Setting options, Basic Explanations setting Manual switch-off On, Off Allows manual switch-off of a running run-on of the run-on time Basic setting: Off time. If the parameter is switched off, then a switch-off command will also switch the actuator on.
  • Page 27 LB management eNet radio centre plate Activate lock-out On, Off Defines the behaviour of the output on activating protection switch- Basic setting: Off the lock-out protection. ing state Deactivate lock- On, Off Defines the behaviour of the output on deactivat- out protection Basic setting: Off ing the lock-out protection.
  • Page 28 LB management eNet radio centre plate Information window During channel selection in the Information window, the following settings can be made or val- ues displayed. "Switching" Display value Explanations Load state The load can be switched on or off. Restraint Display of forced position status.

  • Page 29: Warranty

    Only displayed if the fan channel has been configured. 13 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. FM..1701.. meets the directive 2014/53/EU. You can find the full article number on the device. The com- plete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
