Summary of Contents for ACR Electronics OLAS CORE

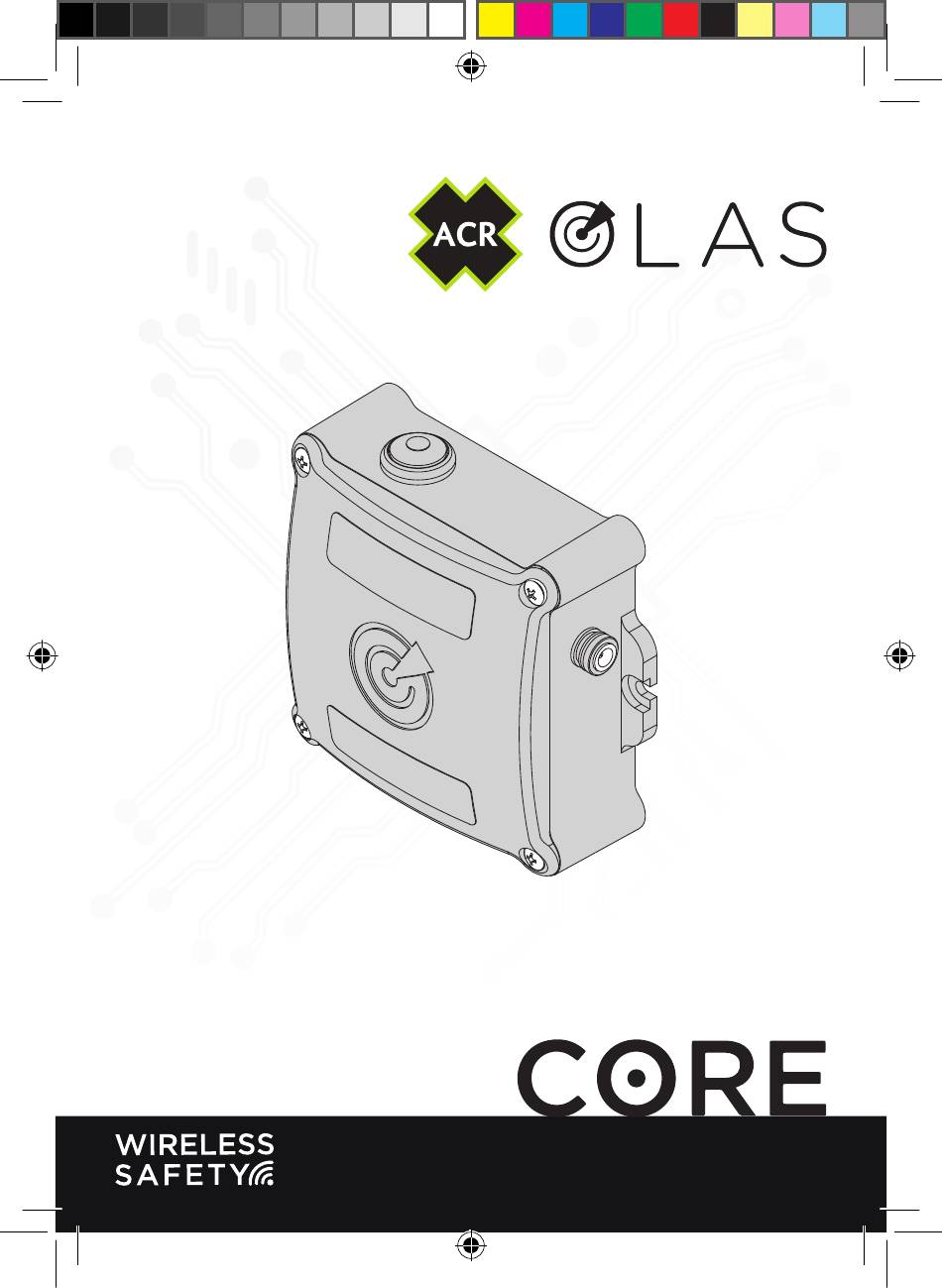

  • Page 1 Quick Start Guide EXPUG2...
  • Page 2 3.29” All dimensions are in inches...
  • Page 3 Control Switch with red indication LED Core Hub Power Connection Internal buzzer Internal emergency light...
  • Page 4 OLAS TRANSMITTERS The OLAS TAG or the OLAS FLOAT-ON are considered OLAS transmitters. They emit a Bluetooth signal which is monitored by the OLAS receivers. OLAS RECEIVERS The OLAS receivers track the OLAS transmitters. OLAS receivers are: 1. OLAS Mobile application 2.

  • Page 5: Core Functions

    CORE FUNCTIONS There are 2 operating states (Tracking and Paused) which can be applied to individual OLAS Transmitters using the OLAS mobile app: Tracking Paused Add new transmitters within 2 meters Pause all tracking a. Alert When an OLAS transmitter goes out of range, within 4 seconds the Core will sound its internal alert and trigger the MOB alert on the OLAS App.
  • Page 6 OPERATION MANUAL Index 1. Start up or returning to the vessel 2. Checking logged OLAS transmitter (without the OLAS mobile application) 3. Checking logged OLAS transmitter (with the OLAS mobile application) 4. OLAS mobile application features 5. Pause Tracking 6. Adding an OLAS transmitter (without the OLAS app) 7.
  • Page 7 4. OLAS MOBILE APPLICATION FEATURES (AVAILABLE FROM HOME SCREEN) • Customise the OLAS transmitters name (press the unique number associated with the transmitter ~ eg. OLAS Float-On 1670 - then type the custom name) • Check OLAS tag battery status •...
  • Page 8 9. LOW BATTERY ALERT • A low battery alert will be initiated by the Core when an OLAS Tag’s battery level goes below 20% • The alert is indicated by a red flash every 10 seconds on the control switch and the Core Hub •...

  • Page 9: Operation

    SOUND AND LIGHT INDICATIONS OPERATION ACTION / REACTION DURATION Control switch - Red Turning On Box: Low red 4 seconds Buzzer ON Control switch - Red No OLAS transmitter in range Box: Low red Pulsing 0.5 seconds ON/OFF Buzzer ON Control switch - Red Initial scan for OLAS transmitters within 2 meters Pulsing 1 second ON/OFF for 30 seconds...
  • Page 10 Ultimate Sports Engineering Ltd. accept no liability for any injuries or other damages arising from the use of their product in any circumstances. We are here to help. If you are experiencing any problems with your ACR OLAS Core or accessories please contact our Technical Service Department at (954) 981-3333 or service@acrartex.com ACR Electronics, Inc.

  • Page 11: Terms And Conditions

    TERMS & CONDITIONS The OLAS systems are products from Ultimate Sports Engineering Ltd. OLAS wireless systems utilise OLAS transmitters (OT) and OLAS receivers (OR). OLAS transmitters consist of the OLAS tag and OLAS Float On. OLAS receivers include the Core, the Guardian, the Extender and the OLAS mobile application (OLAS app) Before using any OLAS wireless system it is imperative that you read the DISCLAIMER and the LIMITATION OF LIABILITY which follows.
  • Page 12 Credits Product: Ultimate Sports Engineering Ltd OLAS CORE Declaration of Conformity: Hereby, Ultimate sports Engineering Ltd declares that this Bluetooth Alarm System is in compliance with Directive 2014/53/EU and Directive 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.acrartex.com/support/acr-support/acr-declaration-of-conformity/...
