MKI -FH4 Manual

Pipe inspection camera system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

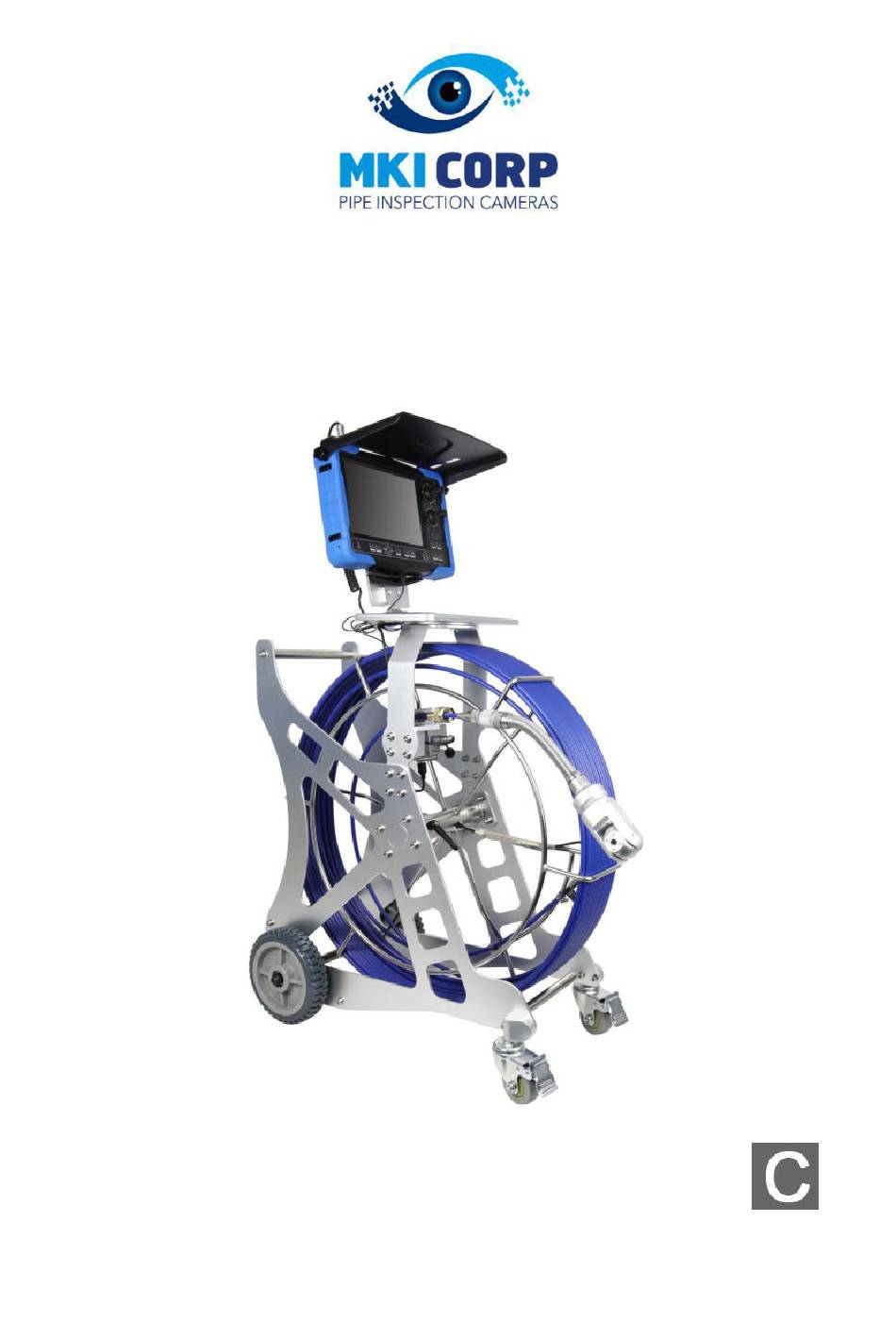

PIPE INSPECTION CAMERA SYSTEM
MODEL: MKI-FH4
Please read these instructions completely before operating this system.
Please charge the battery firstly before using it.
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKI-FH4 and is the answer not in the manual?

Questions and answers

Summary of Contents for MKI MKI-FH4

  • Page 1 PIPE INSPECTION CAMERA SYSTEM MODEL: MKI-FH4 Please read these instructions completely before operating this system. Please charge the battery firstly before using it. MANUAL...

  • Page 2: Table Of Contents

    Catalog CATALOG ..................2 SAFETY AND NOTICE ..............3 1.PARTS LIST ................. 5 ..................5 1.1 A CCESSORIES ..................7 1.2 C ONTROL 2.QUICK START GUIDE ...............8 ..............8 2.1 C HARGING THE ATTERY ..................9 2.2 S TARTING .................. 11 2.3 M UNCTION .....12...

  • Page 3: Safety And Notice

    Warning Warning To Avoid electrical shock put the item indoor when Charging Warning Use only input 110~240V AC output DC 13.5V, 5000mA charger. This machine can only use the original charger and lithium battery, reminding the charging time is 5 hours. Please charge the battery before use! Warning Item contains battery, dispose according local legal requirements properly After using the PT camera, clean the camera with water...
  • Page 4 4. Keep the inspection system and its accessories out of the reach of babies, toddlers, and children. In particular, small parts such as memory cards and battery could be easily dismantled and swallowed. 5. Use only the original accessories to avoid possible risks to health and property, and thus meet all related legal regulations.

  • Page 5: Parts List

    1.Parts List 1.1 Accessories Item Image Description Size: 60*146mm  Total Length: 360mm  Pixel: 1920*1080  View Angle: 105°  Rotation: horizontal 360° vertical 180°  Sensor Size: 1/2.9” SONY CMOS  Camera Manual focus  Head & Focus Distance: 200~1200mm ...
  • Page 6 Item Image Description Cable Size: 875*978*406mm  Cable Material: fiberglass rod  Cable Length: 60m standard  Cable Diameter: ø9.5mm, 9cores  Cable Wheel Material: stainless steel and aluminum  alloy Counter Accuracy: 0.1m  Counter Deviation: ±1%  Cable Wheel Metric and imperial conversion ...

  • Page 7: Control Box

    1.2 Control Box Sunshade Reset 10.1 inch screen Metric / Imperial Infrared receiving window Far focus Video / video pause or resume / delete Light brightness up Confirm / one-touch photo / play or pause Near focus Left button / rewind / recording switch Light brightness down Down button / volume - Tilt-up...

  • Page 8: Quick Start Guide

    SD card slot Charge jack HDMI-OUT Earphone / Mic. Video output USB keyboard port 2.Quick Start Guide 2.1 Charging the Battery 1. Connect the adapter to the AC cable 2. Plug in the 220V power supply 3. Connect the plug to the jack of control box 4.

  • Page 9: Starting Up

    2.2 Starting Up 1. Take out the control terminal and insert it into the coil 2. Tighten the screws 3. Open the sunshade 4. Connect one end of the cable to the coil 5. Connect the other end to the control box 6.
  • Page 10 10. Tighten the other end to the coil connector 11. Unlocking coil 12. Fixed caster 13. The fiber optic cable is placed in the cable clamp 14. Tighten the screw after adjusting the direction of the calibration handle 15. Adjust the direction of the calibration handle on the other end 16.

  • Page 11: Main Function

    2.3 Main Function 1. Adjust the brightness of the lamp up and down 2. Adjust the camera focal length left and right...

  • Page 12: Checking Waterproof Ring & Assembling Skid

    3. Press and hold to pan and tilt the camera 2.4 Checking Waterproof Ring & Assembling Skid 1. First remove the camera 2. Tighten the screws after loading the bracket 3. Tighten the camera and coil connector 1. First remove the camera 2.

  • Page 13: Recording And Menu

    3.Recording and Menu 3.1 Insert the SD Card and Assemble the Microphone and USB Flash Drive 1. Insert the SD card into the slot and press it gently. Make sure the SD card is in good contact with the finger, then gently press and pull the SD card 2.

  • Page 14: Recording Video

    3.2 Recording Video 1. Press the " " button to record the video 2. Press the " " button to pause 3. press the " " button again to resume recording 4. Record video can take pictures...

  • Page 15: Recording Photo

    3.3 Recording Photo Press the “ ” button to snap picture 3.4 Playback Video 1. Press the “ ” button 2. Press the “ ” button Video Files 3. Select the file you need 4. The monitor plays the video 5&6.

  • Page 16: Playback Photo

    3.5 Playback Photo Follow the same steps that the “Playback Video” has mentioned...

  • Page 17: Menu

    3.6 Menu Press “ ” key enter into main menu Language Select the operating language  Date Time Set the date and time, press OK to confirm  Date Format Time format setting  Display 800X600  1024X768  1280 X1024 ...
  • Page 18 Video Setting Frame rate quality etc  Video System AUTO  1080P-PAL  1080P-NTSC  720P-PAL  720P- NTSC  CVBS-PAL  CVBS-NTSC  Video Time Length of the video recording 1minutes  5 minutes  10 minutes  15 minutes ...

  • Page 19: Delete Files

    Disk Select   Format Disk CANCEL: The system will not format the SD card  OK: The system will format the SD card (caution: PLS backup the data of the SD card before  operating) Upgrade Software Update  cancel: The system will not update the firmware ...

  • Page 20: Zoom In & Zoom Out The Image (8 Levels)

    Press “ ” button to choose the file you want to delete, one and all  Press “ ” button to delete it  3.8 Zoom in & Zoom out the Image (8 levels) 1. Press the "up" navigation button to enlarge the image 2.

  • Page 21: Meter Counter

    4.Meter Counter 1. Press the “ ” button to alternate metric and imperial unit 2. Press the “ ” button to reset the value of cable length...

  • Page 22: Keyboard

    3. Hold the “ ” button for 3 seconds, the meter count number hide; hold the button again for 3 seconds, the meter count number show 5.Keyboard 5.1 Keyboard Assemble 1. Insert the USB plug of keyboard to the “KEYBOARD USB” jack 2.

  • Page 23: Keyboard

    5.2 Keyboard The font and text size are fixed and cannot be changed. The basic operation of the text overlay unit is straight forward. A flashing underscore cursor indicates the current screen position. This cursor can be moved the screen by the keyboard cursor keys.

  • Page 24: Troubleshooting Guide

    Shift display left Shift display right Reset display X-Y position (defaults) Clear the screen The video text overlay unit divides its display between four on screen pages. Text written to each of these pages will be stored in the unit’s non-volatile memory until overwritten. These is no default on screen indication of which page is currently selected.
  • Page 25 SD card can’t work Didn’t insert SD card correctly  The write protection switch of SD card is open  SD card is full, please replace SD card or transfer the files to free the space  DVR SD card slot damage ...
