INSTALLATION INSTRUCTIONS
2 BIKE FREESTAND STORAGE RACK
THANK YOU FOR YOUR PURCHASE. We take a SATISFACTION GUARANTEED approach to our
products and our business, if you are not satisfied in any way, or if we can provide you with assistance
or information, PLEASE call us or e-mail us.
This 2 Bike Freestand™ Bicycle Storage System is designed to hold up to 4 Bicycles. The Bicycle Holder Arms can be
adjusted in 3 different ways to hold Bicycles level. Maximum load is 200 pounds. Overall height of unit is 84 inches.

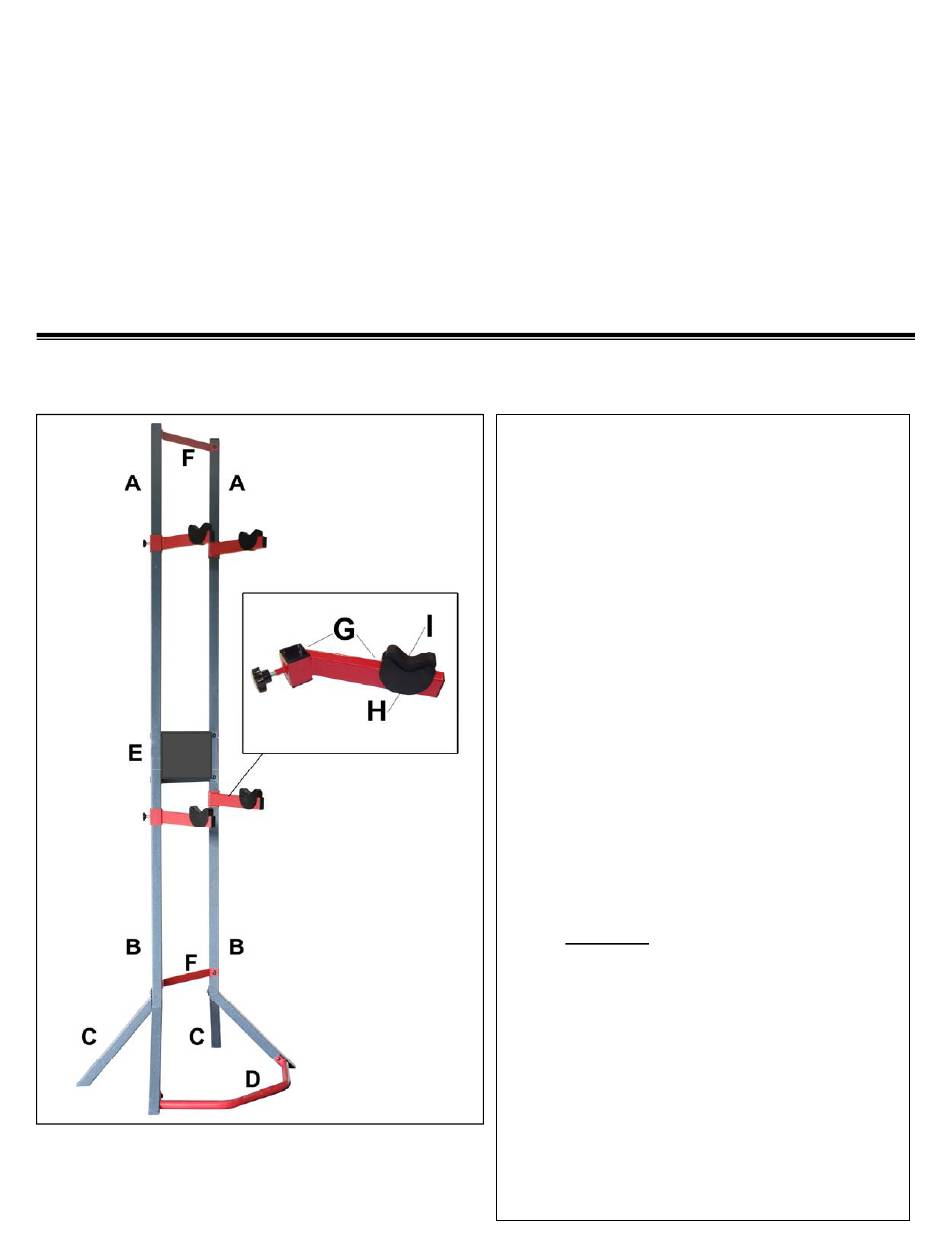

Bill of Material
A.
Top Vertical Upright
B.
Bottom Vertical/Leg Upright
C.
Back Leg
D.
Front Stabilizer Bar
E.
Middle Logo Plate
F.
Top/Bottom Connectors
G.
Bike Arm Bar
H.
Plastic Bike Cradle
I.
Rubber insert for Bike Cradle
J.
Upright Internal Connectors
(Not Shown in picture)
K.
Parts Bag
SHCS screw (25mm)
4mm head Cap Nut
Washer
13mm Hex Head Bolt (40mm)
13 mm Nut
Small Hex Key (4mm)
Large Hex Key (6mm)
Knob for Bike Arm
Plastic End Caps (for part A)
(may already be installed)
2 ea
2 ea
2 ea
1 ea
1 ea
2 ea
4 ea
4 ea
4 ea
2 ea
14ea
14ea
6 ea
2 ea
2 ea
1 ea
1 ea
4 ea
2 ea
Advertisement
Summary of Contents for GEARUP PLATINUM
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS 2 BIKE FREESTAND STORAGE RACK THANK YOU FOR YOUR PURCHASE. We take a SATISFACTION GUARANTEED approach to our products and our business, if you are not satisfied in any way, or if we can provide you with assistance or information, PLEASE call us or e-mail us. - Page 2 Pre - Assembly: Unload all contents from box and check to make sure all parts and components are present Thread Knob into Part (G) Bike Arm Bar (approx. 10 turns to the right). Repeat until all 4 Bike Arm Bars have Knobs in them.
- Page 3 Step 4: For this step you’ll need the parts B/C/F assembly you just created, other parts B/C assembly, 1 bolt, 1 nut Repeat the steps from Step 3 above to attach part F to the other parts B/C assembly. The finished assembly should resemble image below: Step 5: For this step you’ll need the above assembly as well as part D, 2 Long SHCS screws, 4 washers, and 2 cap nuts...
- Page 4 Step 6: For this step you’ll need both the large and small hex keys and the assembly we’ve been creating At this point we can now tighten all the SHCS screws and bolts we’ve used to this point. It will be helpful to place this assembly on the floor in the area you intend to use it so that you can get the unit as level as possible based on the specific area you plan on using it.
- Page 5 Step 9: For this step you’ll need the assembly we’ve created, 1 part J (upright internal connector), 2 Short SHCS screws, and 2 cap nuts. Repeat Step 8 for the other part B upright using the other part J (upright internal connector). Tighten with your hand for now. DO NOT TIGHTEN ALL THE WAY YET –...
- Page 6 Step 10: For this step you’ll need the 2 part A, and 2 part G (Bike Arm Bars), 2 part H (Plastic Cradles), 2 part I – Rubber insert for Bike Cradles Before we mount the Uprights (part A) to the assembly we’ve created, we need to slide the Bike Arm Bars onto them. For straight tube bikes, slant tube frames 19”...
- Page 7 Step 11: For this step you’ll need our assembly so far, 1 part A, 2 Short SHCS screws, 2 Cap Nut, Small Hex Key, Large Hex Key We are going to attach part A to the assembly now using part J and part G just like we just completed in Steps 8 and 9. First we’ll slide part A over part J and into position on top of part B and in between part J and part G.
- Page 8 Step 13: For this step you’ll need the assembly we’ve created, 1 part F, 2 short SHCS screws, 2 cap nuts, small hex key, large hex key It’s time to add the top connector bar across parts A. To do this, line up the holes of part F and parts A, and insert 1 cap nut in the back of part A.
