LIGMAN LH-10583 Installation And Service Manual

INSTALLATION AND SERVICE MANUAL

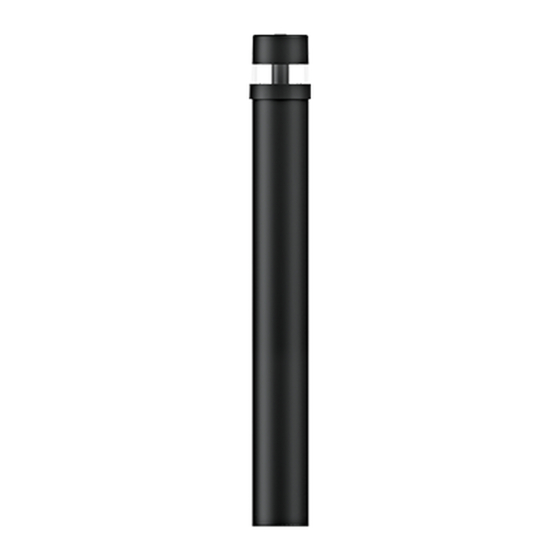

For Installation of Mini Lightsoft bollard.
Model. LH-10573,LH-10583 and LH-10593 and LH-10603

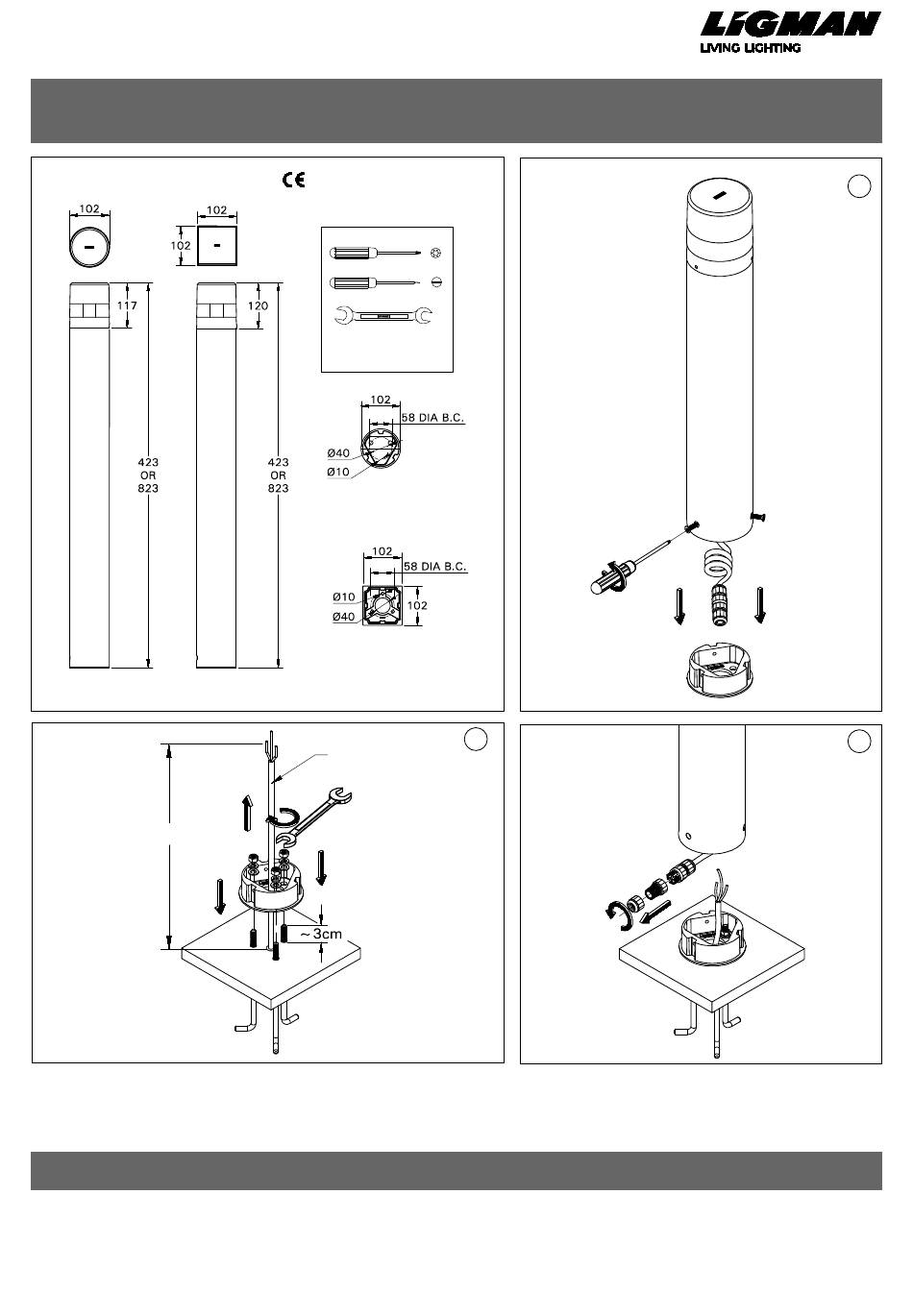

Product drawing (dimensions)
LH-10573 LH-10593
LH-10583 LH-10603
~0.2m.
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504 sales.cz@ligman.com
|
www.ligman.com
IP65 IK08 CLASS I
TOOL
LH-10573,LH-10583
MOUNTING DETAIL
LH-10593,LH-10603
MOUNTING DETAIL
Cable OD
2
Min. 6mm.
Max. 12mm.
Torque :10.5Nm.
