FSR SW-DB-2GEXT Installation Instructions

FSR
SW-DB-2GEXT Extension Cover Installation Instructions
244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: 973.785.4347 - Fax: 973.785.4207
1. INSTALL SMART-WAY 2-GANG ELECTRICAL BOX (SOLD SEPARATELY, SEE BOX INSTALLATION INSTRUCTIONS)
WITHOUT COVER PLATE (EXTENSION COVER WILL NOT WORK WITH SW-DB-1P1D BOX!). END KIT (SOLD
SEPARATELY) & RACEWAY BASE EDGE (SOLD SEPARATELY) MUST BE INSTALLED FIRST IF MOUNTING BOX ON
RACEWAY BASE END.
2. Install #6-32 Nut Completely Onto #6-32 Hex Standoff AND INSTALL STANDOFF TO ELECTRICAL BOX.
3. Make Wiring Connections As Required And Install Decora Units (SOLD SEPARATELY) AND EXTENSION
COVER TO ELECTRICAL BOX.
RACEWAY BASE
(SOLD SEPARATELY)

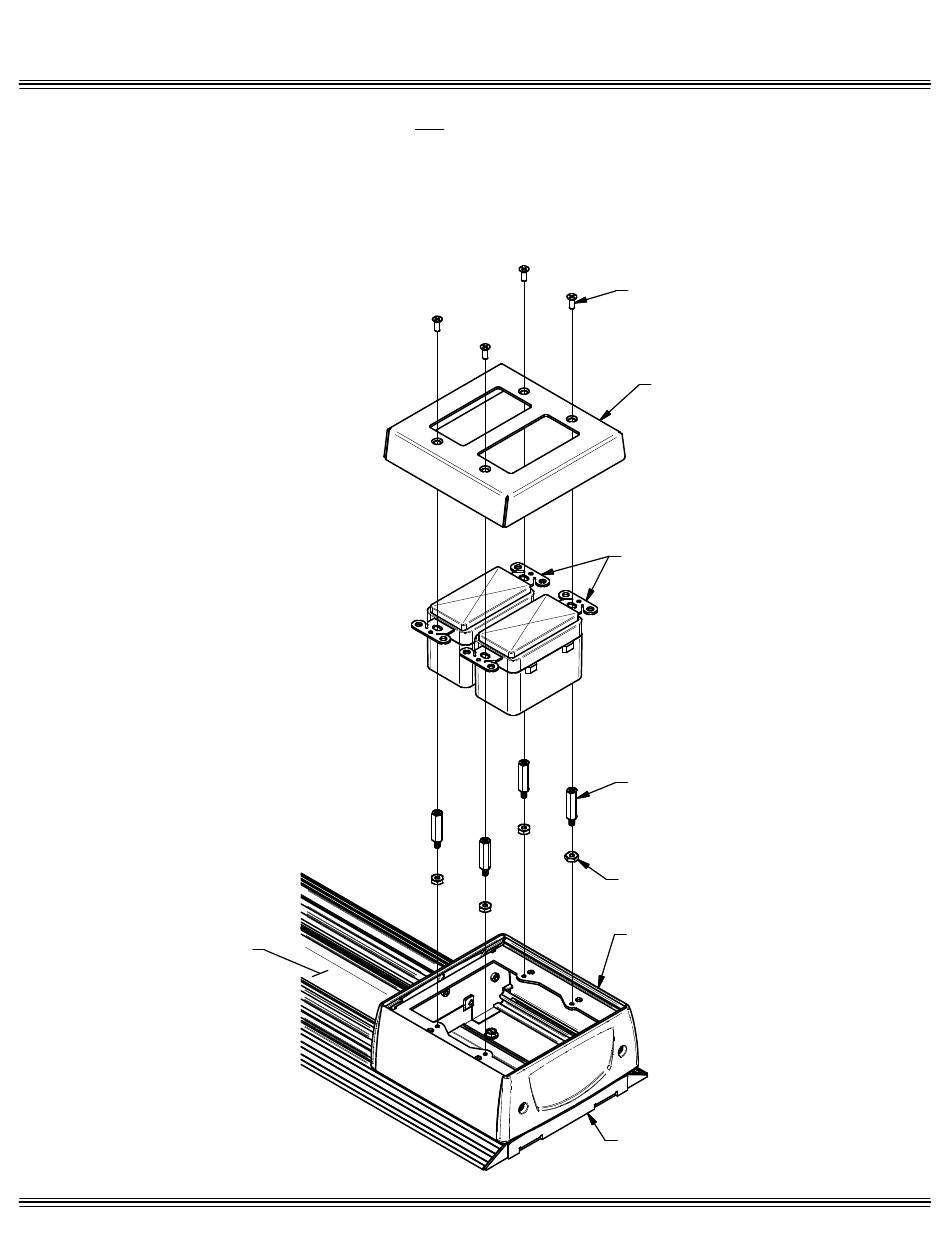

43387
PATENT PENDING
(4) #6-32 x 3/8"-LONG
FLAT HEAD SCREW
EXTENSION COVER
DECORATOR STYLE DEVICES
(SOLD SEPARATELY)
(4) #6-32 HEX STANDOFF
(4) #6-32 NUT

INSTALL SMART-WAY 2-GANG ELECTRICAL BOX

(SOLD SEPARATELY, SEE BOX INSTALLATION
INSTRUCTIONS) WITHOUT COVER PLATE
END KIT (SOLD SEPARATELY)
LIT1773
