American Lighting LW36-RGB Quick Start Manual

LED Wall Washer

Safety instructions for LW36-RGB

WARNING: This product may represent a possible shock or fire hazard if improperly installed or attached in any way.
Products should be installed by a qualified electrician in accordance with these instructions, current electrical codes
and/or the current National Electric Code (NEC).
WARNING: To avoid electrical shock, disconnect or disable power at the source prior to installation or maintenance!
IMPORTANT SAFETY INSTRUCTIONS - Do not begin installation until you read and understand
the installation and safety instructions.
1. All units must be unplugged before installing or servicing in any way.
2. Do not route cords or units through walls, doors, windows or any similar part of a building structure.
3. When using outdoors, controller (if applicable) must be secured in a weatherproof enclosure.
4. Do not use if there is any damage to the unit, its lens and/or power cord's insulation. Inspect periodically.
5. Do not submerge in water or liquids.
6. Secure units using mounting hardware appropriate for the mounting surface. Do not secure unit or its
power cord with staples, nails or the like that may damage insulation.
7. As dictated by engineer's drawings or local code, install safety cables on fixtures.
8. Do not attempt to open or service the fixture. None of its parts are serviceable by the user.
9. Do not exceed the specified voltage and current input.
10. If using in conjunction with the LW36-CON controller, do not exceed the maximum run of thirty units.
11. This product has a polarized grounded plug as a safety feature to reduce the risk of electric shock.
Do not cut the plug off or alter it in any way.
WARNING: When using outdoors, basic safety precautions should always be followed to reduce the risk of
fire, electric shock and personal injury, including the following:
1. Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be
used for outdoor use. Receptacles are available having built-in GFCI protection for this measure of safety.
2. Use only outdoor extension cords, such as type SW, SOW, STW, STOW, SJW, SJOW, SJTW, or SJTO. This
designation is marked in the wire of the extension cord. Never use with an extension cord unless plug
can be fully inserted. AC 120V, 60Hz max.

INSTALLATION PLANNING

Plan ahead for quick, successful installation.
1. Review all wiring plans in advance, in consult with an
electrical inspector if possible. Refer to local and state
codes for installation compliance.
2. Make a fixture layout plan that shows locations of each
fixture and the controller. Leave room or create a legend
to record the fixture "ID's" (identifying number for fixture
addressing purposes).
3. As you unpack each fixture, attach a weatherproof label
on the fixture to reference its location in the lighting
installation plan. This will help speed the installation and
identify units for addressing purposes.
See Figure 1.
R
Lighted screen
(indicates ID)
Tilt angle
adjustment handle
Data/signal input
Power input
using included power cord or
power from previous xture
www.americanlighting.com

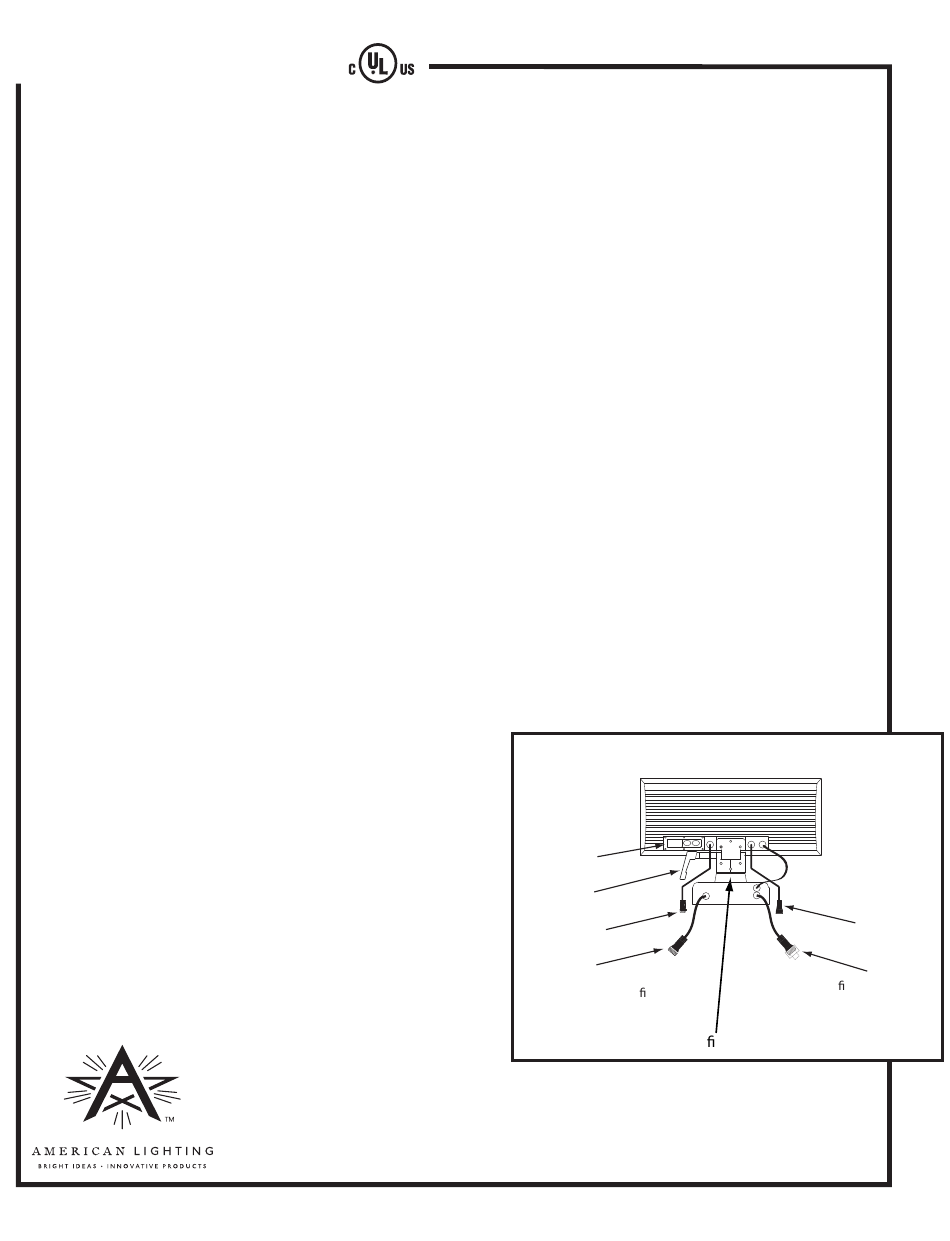

Figure 1
Label back of xture with its ID
Data/signal output
Power out
to next xture (only used
indoors when daisy-chaining units)
RV-0810KB
