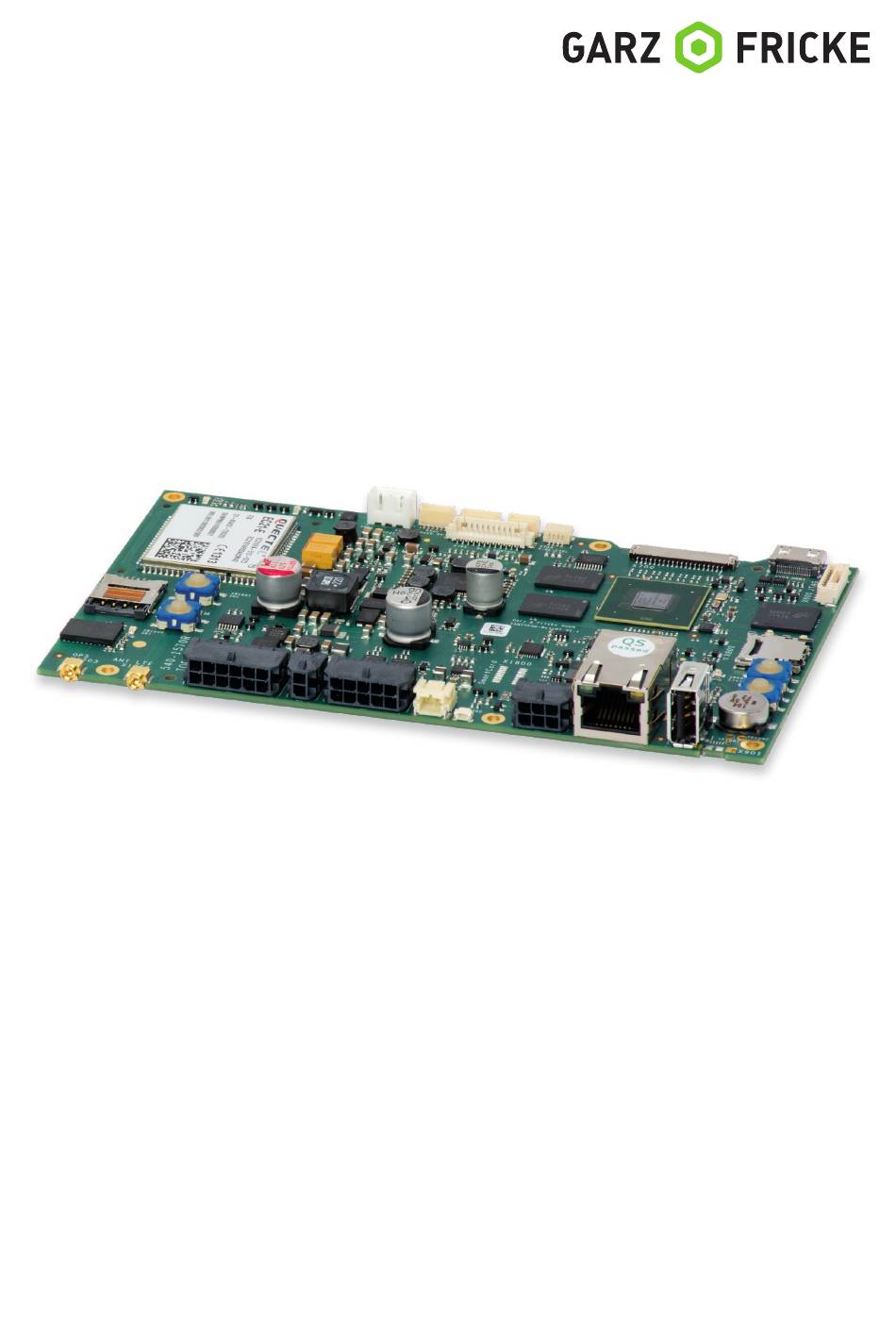

- Page 1 SOLUTIONS THAT COMPLETE! SANTVEND core ARM Cortex A9 Single Board Computer Vending / IOT platform with 3G / 4G modem and MDB interfaces. Product Manual...
- Page 2 PRODUCT MANUAL SANTVEND core Document Revision History The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. Revision...
-
Page 3: Table Of Contents
PRODUCT MANUAL SANTVEND core Table of Contents Introduction ..................4 Safety Hints..................5 Product Introduction ................. 7 Type Plate and Device Information ............7 Related Documents and Online Support ..........8 Technical Data ..................9 Block Diagram ..................10 Technical Drawing ...................11 PCB Design and Pin Assembly ..............12 Installation and Start Up .............. -
Page 4: Introduction
PRODUCT MANUAL SANTVEND core Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 5: Safety Hints
PRODUCT MANUAL SANTVEND core Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition.In order to maintain this condition... - Page 6 PRODUCT MANUAL SANTVEND core III. Electricity The embedded systems may only be opened in accordance with the description in this user’s manual for - replacing of the (rechargeable, where applicable) lithium battery and/or - configuration of interfaces, where applicable These procedures have to be carried-out only by qualified specialist personnel.
-
Page 7: Product Introduction
PRODUCT MANUAL SANTVEND core Product Introduction This document is applicable for hardware revisions 1.0 or later of the SANTVEND series. „Annex A: Hardware Revision Information“: Please find the hardware version grid in SANTVEND is an Embedded System to be used as human machine interface (HMI) in various applications. -
Page 8: Related Documents And Online Support
PRODUCT MANUAL SANTVEND core Related Documents and Online Support This document contains SBC specific information. The following additional documentations are available: OPERATING SYSTEMS Contains information about Linux BSP with development environment Linux Yocto Jethro Linux Embedded System Yocto (Codename: Jethro, Version 3.0) includes first information about the bootloader Flash-N-Go http://mx31.de/1g... -
Page 9: Technical Data
PRODUCT MANUAL SANTVEND core Technical Data CPU Type i.MX6Dual Core Class ARM Cortex - A9 Core Clock 1 GHz NEON for SIMD media acceleration and VFP operations; Multi-format HD 1080p video decoder and HD 720p video encoder hardware engine; L1 cache, 32 KB for instruction, 32 KB for data; 1 MB L2 cache... -
Page 10: Block Diagram
PRODUCT MANUAL SANTVEND core Block Diagram Block Diagram SANTVEND i.MX6 24 V DC Step Down 2-pole Modex Converter LVDS0 2x Display LVDS 20-pole Hirose LVDS1 Akku PMIC Power 3-pole Charger GPIO Backlight PWM1_OUT 12-pole Molex Super- Ambient-Light 5-pole JST I C-1 I²C-3... -
Page 11: Technical Drawing
PRODUCT MANUAL SANTVEND core SANTVEND core Technical Drawing 156,5 102,9 Missing dimensions according to 3D CAD files... -
Page 12: Pcb Design And Pin Assembly
PRODUCT MANUAL SANTVEND core PCB Design and Pin Assembly As this manual describes a core version, the internal and external interfaces will be mentioned in the following chapter. (Exemplary Illustration front side. The illustration shows the fully equipped SANTVEND Quadcore light. It shows no heatsink to provide a better overview.) - Page 13 PRODUCT MANUAL SANTVEND core X905 X1600 X701 (Exemplary Illustration back side) Pos. Description LVDS 2 (X701) Ambient - Light - Sensor (X905) SPI (X1600)
-
Page 14: Installation And Start Up
PRODUCT MANUAL SANTVEND core Installation and Start Up The content of this document is limited to explain the device connectors and how to access SANTVEND via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software „3.2 Related Documents and Online Support“... -
Page 15: Internal And External Interfaces
PRODUCT MANUAL SANTVEND core Internal and External Interfaces Antenna GPS (X1703) Name Description Level Center RF-IN 50 Ohm; Feeding active GPS antenna +3,3V Shield Header: MMCX_SMD_EdgeMount 090° Antenna GSM (X1700) Name Description Level Center RF-I/O 50 Ohm; GSM antenna Shield Header: MMCX_SMD_EdgeMount 090°... -
Page 16: Mdb (X1500)
PRODUCT MANUAL SANTVEND core MDB (X1500) Name Description Level VCC_MDB-S Eingang VCC (complete system) 12-24 VDC Common GND WakeUp-MDB-S WakeUp-IO (In/Open Collector) TX-MDB-S OUT TX MDB Slave RX-MDB-S IN RX MDB Slave Common GND VCC_MDB-M Ausgang VCC MDB Master 12-24 VDC... -
Page 17: Power (X200)
PRODUCT MANUAL SANTVEND core Power (X200) Name Description Level Common GND Power In Eingang VCC (complete system) Nom. 12 to 24 V DC Header: Molex 43045-0200 Micro-Fit 2p Plug: Molex 43025-0200 Micro-Fit 2p, crimp contact Molex 43030-0007 Caution: Power supplies connected to this device must be compliant to the requirements of... -
Page 18: Li - Ion - Akku (X201)
PRODUCT MANUAL SANTVEND core Li - Ion - Akku (X201) Name Description Level Common GND 10K NTC 3.3 V V Li Ion Akku Plus Li-Ion-Akku 4.2 V Header: Type: B3B-XH-A / 3pol. JST-XH, THT 180° Plug: XHP-3 / 3pol. JST-XH crimp contact SXH-001T-P0.6 (22-28 AWG Tin) -
Page 19: Rs-232 (X1401)
PRODUCT MANUAL SANTVEND core RS-232 (X1401) Name Description Level Common GND RS232-1_TX RS232-1_TX V.28 RS232-1_RX RS232-1_RX V.28 RS232-1_RTS RS232-1_RTS V.28 RS232-1_CTS RS232-1_CTS V.28 Common GND RS232-2_TX RS232-2_TX 1 V.28 RS232-2_RX RS232-2_RX 1 V.28 MISC_WU WakeUp-IO (In/Open Collector) Common GND Header: Type 43045-1000 / 10pol. Molex MicroFit 090°... -
Page 20: Speaker (X1301)
PRODUCT MANUAL SANTVEND core Speaker (X1301) Name Description Level Speaker+ OUT D-Class-Amp. Speaker- OUT D-Class-Amp. Header: Type S2B-PH-SM3-TB / 2pol. RM2.0mm; JST PH-Serie 090° Plug: Type PHR-2 / 2pol. RM2.0mm; JST PH-Serie crimp contact JST SPH-002T-P0.5L Microphone (X1300) Name Description... -
Page 21: Can (X1400)
PRODUCT MANUAL SANTVEND core CAN (X1400) Name Description Level Common GND CAN1_H Signal CAN High CAN1_L Signal CAN Low WakeUp-CAN WakeUp-IO (In/Open Collector) Term_CAN1_H Termination CAN High Term_CAN1_L Termination CAN Low Header: Type 43045-0600 / 6pol. Molex MicroFit 090° Plug: 43025-0600 / 6 pol. -
Page 22: Ethernet (X1200)
PRODUCT MANUAL SANTVEND core 6.10 Ethernet (X1200) Name Description Information Rx/Tx might be swapped (Auto-MDIX) SPARE 1 +/- might be swapped (Autom. polarity correction) SPARE 2 Header: Type Shinetech_SHRJ-1104D5005 / Ethernet 100MBit, RJ45 090° Green LED (link) is default off and turns on when link is detected. -
Page 23: Usb - Host (X900)
PRODUCT MANUAL SANTVEND core 6.11 USB - Host (X900) Name Description Level USB_HS_VBUS Power supply, max. 300mA +5 V USB_HS_DN Data minus (D-) USB_HS_DP Data plus (D+) Common GND Header: Type MOLEX 673298020 / USB-A-Short 090° 6.12 Push - Buttons (SW600), (SW601), (SW1600), (SW1601) Ref. -
Page 24: Jtag - Debug Interface (X600)
PRODUCT MANUAL SANTVEND core 6.13 JTAG - Debug Interface (X600) Name Description Level JTAG_TCK 3.3 V JTAG_TDO 3.3 V JTAG_MOD 3.3 V JTAG_TMS 3.3 V JTAG_TDI 3.3 V JTAG_TRST_B 3.3 V J_SRST_B 3.3 V Header: Type: BM08B-GHS-TBT / 8pol. JST-GH, 180°... -
Page 25: Lvds 0 (X700) Lvds 1 (X701)
PRODUCT MANUAL SANTVEND core 6.15 LVDS 0 (X700) LVDS 1 (X701) X700 Name Description Level VCC Display Logik max. 1A +3.3 V +3.3 V Common GND Common GND LVDS0_TX0_N Differential Output LVDS LVDS0_TX0_P Differential Output LVDS Common GND LVDS0_TX1_N Differential Output... -
Page 26: 2Nd Bl-Ctrl (X703)
PRODUCT MANUAL SANTVEND core 6.16 2nd BL-CTRL (X703) Name Description Level Common GND X-LOGIC_ON On / Off VCC Logik, external Display X-BL_PWM PWM Dimming Backlight, external Display X-BL_ON On / Off Backlight, external Display Header: Type SM04B-SRSS-TB / 4pol. RM1.0mm; JST SH-Serie 090°... -
Page 27: Ambient Light Sensor (X904)
PRODUCT MANUAL SANTVEND core 6.18 Ambient Light Sensor (X904) Name Description Level VCC für Light-Sensor +3.3 V I2C3_SDA IO Daten I²C 3.3 V I2C3_SCL IN Clock I²C 3.3 V Common GND RFU - nc Header: Type BM05B-SRSS-TB / 5pol. RM1.0mm; JST SH-Serie 180°... -
Page 28: 6.21 Insika (X1800) Optional Reserved For Internal Use
PRODUCT MANUAL SANTVEND core 6.21 INSIKA (X1800) optional reserved for Internal Use Name Description Level VCC max. 100mA +5 V SC_BASE_CLK_X Driven Clock CLKO2 3.3 V VCC max. 100mA +5 V Common GND Common GND SC_RX_X Driven UART3_TXD 3.3 V... -
Page 29: Annex A: Hardware Revision Information
This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments. Platform Article Number Marking on PCB SANTVEND core x2 tbd. SANTVEND - NetzBT V1.1 Hardware Revision Marking on PCB V1.1... -
Page 30: Annex B: Assembly Options
PRODUCT MANUAL SANTVEND core Annex B: Assembly Options WIFI / Bluetooth Some appliances require a wireless network connection. To be more flexible with regard to future WiFi standards and regulations, we decided not to assemble this functionality directly onto the single-board-computer. -
Page 31: Annex C: Guidelines And Standards
PRODUCT MANUAL SANTVEND core Annex C: Guidelines and Standards RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8th June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 32: Annex D: Common Documentation
PRODUCT MANUAL SANTVEND core Annex D: Common Documentation Warranty hints Garz & Fricke embedded systems are subject to manufacturer’s warranty as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the warranty period. -
Page 33: Field Of Application
PRODUCT MANUAL SANTVEND core Field of Application The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) we highly recommend a personal contact with our consultants and/or technical sales team. -
Page 34: Annex E: Technical Support
PRODUCT MANUAL SANTVEND core Annex E: Technical Support Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or any other documentation provided by Garz & Fricke or the related websites. -
Page 35: General Informations
PRODUCT MANUAL SANTVEND core General Informations Trademarks and service marks Names and logos in this document may be trademarks of their respective companies. In some cases descriptions for copyrighted products are not explicitly indicated as such. The absence of the trademark ( ™...
