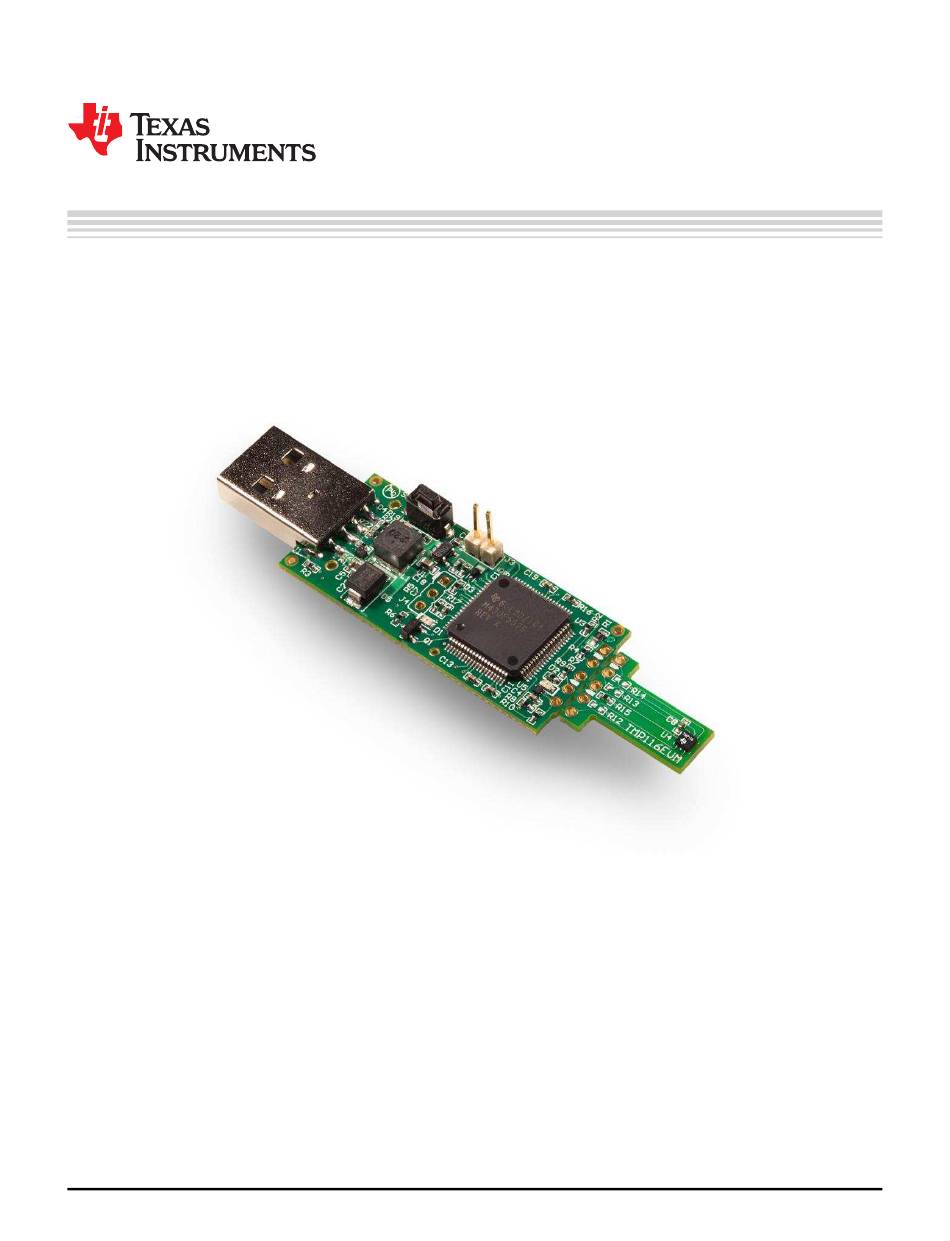

The TMP116 devices are a family of high-precision digital temperature sensors with integrated EEPROM.
The TMP116 family provides up to ±0.1°C accuracy over the 20°C to 42°C range, and 0.2°C accuracy
over the 0°C to 85°C range with 16-bit resolution. The TMP116EVM evaluation module (EVM) provides
the user a simple way to get started with TMP116 family. The EVM features a perforation that allows the
temperature sensor to be placed away from the MSP430 for remote temperature measurements.
All trademarks are the property of their respective owners.
SNOU145A – June 2017 – Revised August 2017
Submit Documentation Feedback
TMP116EVM User's Guide
Copyright © 2017, Texas Instruments Incorporated
User's Guide
SNOU145A – June 2017 – Revised August 2017
TMP116EVM User's Guide
1
Advertisement
Table of Contents
Summary of Contents for Texas Instruments TMP116EVM
- Page 1 The TMP116 family provides up to ±0.1°C accuracy over the 20°C to 42°C range, and 0.2°C accuracy over the 0°C to 85°C range with 16-bit resolution. The TMP116EVM evaluation module (EVM) provides the user a simple way to get started with TMP116 family. The EVM features a perforation that allows the temperature sensor to be placed away from the MSP430 for remote temperature measurements.
-
Page 2: Table Of Contents
List of Tables ......................EVM Kit Contents ..................Device and Package Configurations ......................I2C Slave Addresses ..................... TMP116EVM Bill of Materials TMP116EVM User's Guide SNOU145A – June 2017 – Revised August 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 3: Overview
Overview The TMP116EVM allows users to evaluate the performance of the best digital temperature sensor available in very small QFN package. The EVM comes in a USB stick form factor with an onboard MSP430F5529 microcontroller that interfaces with both the host computer and up to 4 TMP116 devices using I2C interface. -
Page 4: Board Connectors And Components
EVM Power Supply Input – J3 TMP116EVM utilizes the +5V input power supply of the USB connector to power the EVM. The EVM does not require an external power supply. The board is powered by the USB port and provides switched +5V.It can be powered by shorting the J3 jumper with a regulated voltage with desired voltage based on the equation 1. -
Page 5: I2C Slave Addresses
Table 3. I2C Slave Addresses SLAVE ADDRESS CORRESPONDING EVM ADD0 PIN CONNECTION RESISTOR BINARY 1001000 0x48 1001001 0x49 1001010 0x4A 1001011 0x4B SNOU145A – June 2017 – Revised August 2017 TMP116EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 6: Software Installation
Windows operating systems. The EVM software is available through the EVM product folder on the TI website. 1. Go to the TMP116EVM web page on the TI website: http://www.ti.com/tool/TMP116EVM. Scroll down to the “Software” section and download the latest evaluation software. -
Page 7: Tmp116Evm License Agreement
Software Installation www.ti.com 3. Follow the on-screen instructions by clicking the “Next” button to install the software. Figure 3. TMP116EVM License Agreement 4. Following this option, two license agreements are presented that must be accepted. Figure 4. TMP116EVM Installation Directory SNOU145A –... -
Page 8: Tmp116Evm Select Components
Figure 5. TMP116EVM Select Components 6. If it is the first time installation, ensure the “LabVIEW runtime engine 2016” is listed in the following summary. TMP116EVM GUI is required LabVIEW 2016 runtime engine in order proper operation. Figure 6. Proxy Configuration TMP116EVM User's Guide SNOU145A –... -
Page 9: Tmp116Evm Installation Finish
If the server doesn't require the proxy server, just simply delete the default address and port number. Figure 7. TMP116EVM Installation Finish 8. When the installation is finished, please click “Finish” button and restart the computer. -
Page 10: Upgrading The Firmware
3. Connect the TMP116EVM to a PC in Figure 4. With the TMP116EVM connected, launch the TMP116EVM GUI application. The application can be launched from Start -> Programs -> Texas Instruments -> TMP116EVM -> TMP116EVM.exe. Run the aforementioned TMP116EVM GUI. -
Page 11: Tmp116Evm Gui
Figure 10. TMP116EVM GUI Figure 11 appears. Click the “OK” button to precede the firmware update. Figure 11. Firmware Update Confirmation SNOU145A – June 2017 – Revised August 2017 TMP116EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 12: Firmware Update
10. It’s required a few second to program the firmware. Once the program is completed, an indicator message is shown in Figure Figure 13. Firmware Upgrade Successfully TMP116EVM User's Guide SNOU145A – June 2017 – Revised August 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 13: Update Firmware Failed
Upgrading the Firmware www.ti.com 11. Sometimes the Firmware Quickloader indicated a failed to update the firmware. The message can be ignored, and proceed to validation in the TMP116EVM GUI. Figure 14. Update Firmware Failed SNOU145A – June 2017 – Revised August 2017... -
Page 14: Tmp116Evm Setup And Operation
Figure 15. Confirmation of USB-to-I2C Converter Driver Installation The TMP116EVM GUI can be run from the Start Menu or from Windows desktop. It is located in a folder Start -> Programs -> Texas Instruments -> TMP116EVM -> TMP116EVM.exe. Clicking on the “OK” button will take you to the main window of the GUI. -
Page 15: Tmp116Evm Default Tab
Configuration. Launching the software will take you to the main window GUI (Main tab) display. By clicking on the page tab allows switching between pages of the tab control. Figure 17. TMP116EVM Default Tab SNOU145A – June 2017 – Revised August 2017... - Page 16 Alert high and low limit register can be set by entering the value in °C or °F based on °C/°F control on Main tab that stores the high and low limit for comparison with the temperature result. TMP116EVM User's Guide SNOU145A – June 2017 – Revised August 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 17: Registers Tab
Changes to the configuration page are mirrored here, and vice versa. For more details about each register refer to the latest datasheet. Figure 18. Registers Tab SNOU145A – June 2017 – Revised August 2017 TMP116EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 18: Configuration Tab
Status indicator displays the outputs by clicking on the “Read Status” button. Temperature displays the current temperature of the TMP116. TMP116EVM User's Guide SNOU145A – June 2017 – Revised August 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 19: Tmp116 Setup
It can be configured here, but it will be changed automatically when changes are made to Conversion Cycle and Conversion Average. SNOU145A – June 2017 – Revised August 2017 TMP116EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 20: Board Layout
Board Layout www.ti.com Board Layout Figure 21. Top Assembly Layer Figure 22. Top Layer Routing Figure 23. Power Layer Routing TMP116EVM User's Guide SNOU145A – June 2017 – Revised August 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 21: Ground Layer Routing
Board Layout www.ti.com Figure 24. Ground Layer Routing Figure 25. Bottom Layer Routing Figure 26. Bottom Assembly Layer SNOU145A – June 2017 – Revised August 2017 TMP116EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 22: Schematic And Bill Of Materials
SBWTDIO DVCC1 DVSS1 0x4B DVCC2 DVSS2 MSP430F5529IPNR 0.1µF 0.1µF 0.1µF Copyright © 2017, Texas Instruments Incorporated Figure 27. TMP116EVM Schematic TMP116EVM User's Guide SNOU145A – June 2017 – Revised August 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 23: Tmp116Evm Bill Of Materials
Schematic and Bill of Materials www.ti.com Table 4. TMP116EVM Bill of Materials DESIGNATOR QTY VALUE DESCRIPTION PACKAGE PART NUMBER MANUFACTURER ALTERNATE ALTERNATE REFERENCE PART MANUFACTURER NUMBER !PCB Printed Circuit Board MHR026 C1, C8, C10, 0.1uF CAP, CERM, 0.1 µF, 10 V, +/- 10%, X5R, 0402 0402 C1005X5R1A104K050BA 0.1uF... - Page 24 Schematic and Bill of Materials www.ti.com Table 4. TMP116EVM Bill of Materials (continued) DESIGNATOR QTY VALUE DESCRIPTION PACKAGE PART NUMBER MANUFACTURER ALTERNATE ALTERNATE REFERENCE PART MANUFACTURER NUMBER R10, R15, RES, 0, 5%, 0.063 W, 0402 0402 CRCW04020000Z0ED Vishay-Dale R16, R21, R23 RES, 0, 5%, 0.1 W, 0603...
- Page 25 Page ........................• Changed figure 17 ........................• Changed figure 19 ........................• Changed figure 20 ........................• Added User Interface SNOU145A – June 2017 – Revised August 2017 Revision History Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 26 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 27 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 28 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
- Page 29 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2017, Texas Instruments Incorporated...
- Page 30 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
- Page 31 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TMP116EVM...
