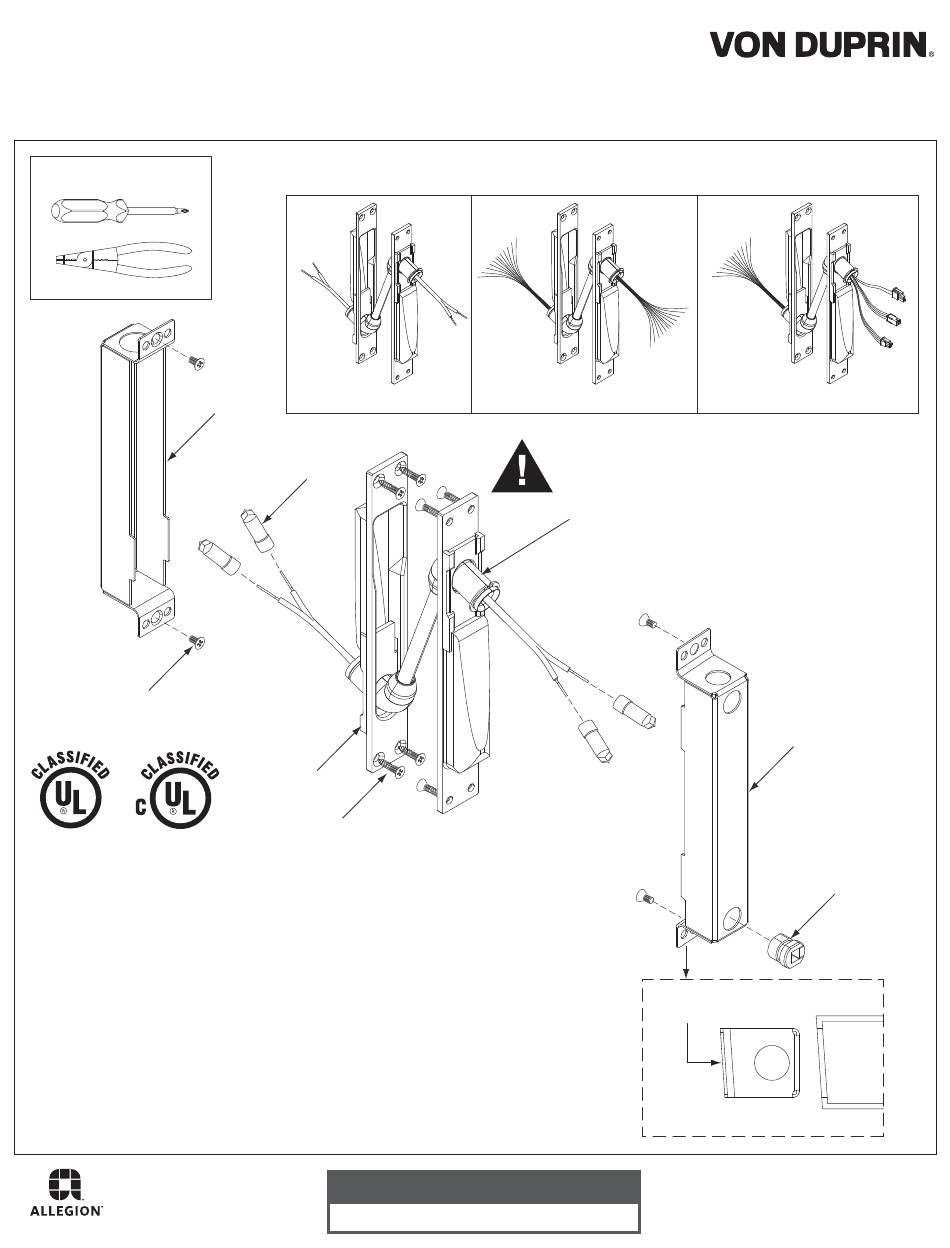

941071-00
Electric Power Transfer (EPT)
Tools for Install
B
A. Frame Backbox
B. Metal - #10-24 x 3/8" Flat Phillips Head Machine Screw (4)
Wood - #10 x 3/4" Flat Phillips Head Wood Screw (4)
C. EPT2 - Wire Connectors 12 Gauge Yellow (4)
EPT10 - Wire Connectors 18 Gauge Violet (20)
EPT10C - Wire Connectors 18 Gauge Violet (20)
D. EPT Assembly
E. Metal - #10-24 x 3/4" Flat Phillips Head Machine Screw (8)
Wood - #10 x 3/4" Flat Phillips Head Wood Screw (8)
F. Door Backbox
G. Strain Relief
EPT2, EPT10,
& EPT10C
Read all Warnings Before Starting Installation!
EPT2
A
C
Frame Leaf
D
E
EPT2 Shown
1-877-671-7011
EPT10
To ensure the maximum amount of
travel in arm for cam lift hinges, install
EPT so door side leaf is oriented with
knuckle on top.
Door Leaf
Customer Service
www.allegion.com/us
Installation Instructions
EPT10C
F
G
Note: Door backbox is
beveled to match door
941071-00 Rev. 10/14-e
© Allegion 2014
Printed in U.S.A.
Advertisement
Related Manuals for Von Duprin EPT2
Summary of Contents for Von Duprin EPT2
- Page 1 B. Metal - #10-24 x 3/8” Flat Phillips Head Machine Screw (4) Wood - #10 x 3/4” Flat Phillips Head Wood Screw (4) C. EPT2 - Wire Connectors 12 Gauge Yellow (4) EPT10 - Wire Connectors 18 Gauge Violet (20)
- Page 2 General Information An electric power transfer (EPT) provides a wiring path from the door to the frame. These instructions assume that a factory-prepped door and frame are being used. If the door and frame have not been factory-prepped, see the included dimensioned template. Before beginning the installation, review “Specifications”...
- Page 3 Installation Connect Wires Use Template from Back Page to Verify Preparation Refer to wiring information in product instructions Mount Frame Backbox Connectors A. Remove knockout from top B. Install 1/2” conduit, if used C. Pull 5” of field wiring through knockout Top Knockout (1/2”) Frame...
- Page 4 OF EPT IN FRAME MUST ALIGN WOOD: WITH OF EPT IN DOOR. HOLES PREPARED DURING INSTALL. RECOMMENDED 6" BELOW " MAX. UPPER HINGE METAL: #10-24 TAPPED WHEN INSTALLED HOLE (12 PLCS) " REINFORCEMENT FROM OUTSIDE .060" (16 GA.) FACE OF DOOR MINIMUM "...
