Summary of Contents for Wido WD012111400

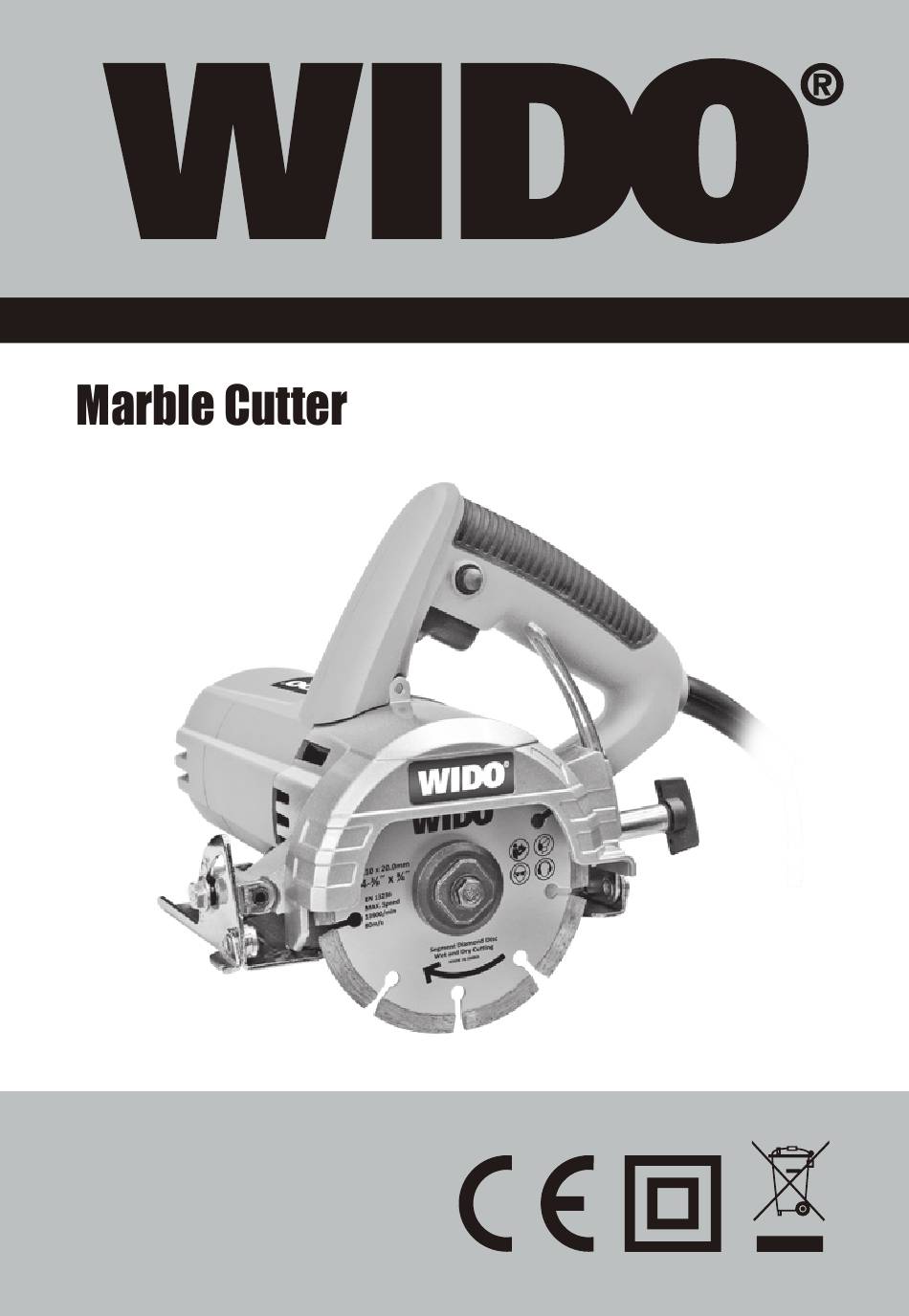

- Page 1 WD012111400 1400W...
- Page 2 WD012111400 Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD012111400...
- Page 4 WD012111400 5.5mm...
-
Page 5: Component List
1400W MARBLE CUTTER COMPONENT LIST 1) Base plate 2) Cutting mark 45 3) Bevel locking bolt 4) Bevel scale plate 5) On/off switch 6) Lock-on button 7) Handle 8) Cutting depth guide 9) Cutting depth locking knob 10) Inner flange 11) Cutting wheel (no supplied) 12) Outer flange 13) Cutting wheel bolt... -
Page 6: General Power Tool Safety Warnings
1400W MARBLE CUTTER GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 7 1400W MARBLE CUTTER f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 8: Double Insulation
1400W MARBLE CUTTER plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged cutting wheels will normally break apart during this test time. 10) Use only flanges specified for this power tool. 11) Be careful not to damage the spindle, flanges (especially the installing surface) or bolt. -
Page 9: Technical Data
Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice TECHNICAL DATA Model WD012111400 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz... - Page 10 1400W MARBLE CUTTER OPERATING INSTRUCTIONS Note: Before using the power tool, read the instruction manual carefully. 1. Intended use The machine is intended for cutting etc. in brick, concrete and stone 2. Before using your power tool Before using your power tool, always check (RCD) is connected to power supply residual current device and to test the correct operation of the RCD, unless the RCD is of a self-checking type.
- Page 11 1400W MARBLE CUTTER 1) Place the power tool on its side on a flat surface. Hold the outer flange provided. with the spanner 2) Loosen the hex head bolt clockwise with the socket wrench provided (See Fig 6). 3) Remove the hex head bolt and outer flange. 4) Remove the cutting wheel from the inner flange and pull it out (See Fig 7).
-
Page 12: Maintenance
1400W MARBLE CUTTER Draw a guideline along the desired line of cut before beginning your cut. Avoid placing the power tool on the part of the workpiece that will fall off when the cut is made. 3. Guide the power tool evenly and with light feed in the cutting direction. Excessive feed significantly reduces the service life of the cutting wheel and can cause damage to the power tool. -
Page 13: Explosive View
1400W MARBLE CUTTER EXPLOSIVE VIEW... -
Page 14: Part List
1400W MARBLE CUTTER PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Seal ring Pinion Output spindle Bearing Woodruff key Rotor Screw Dust proof ring Spring washer Bearing Cover of gear box Bearing sleeve O-ring Screw Bearing Fan baffle Circlip Stator Gear Handle cover Bearing Dust proof cap of lock-on button Gear box... - Page 15 WD012111400...
- Page 16 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
