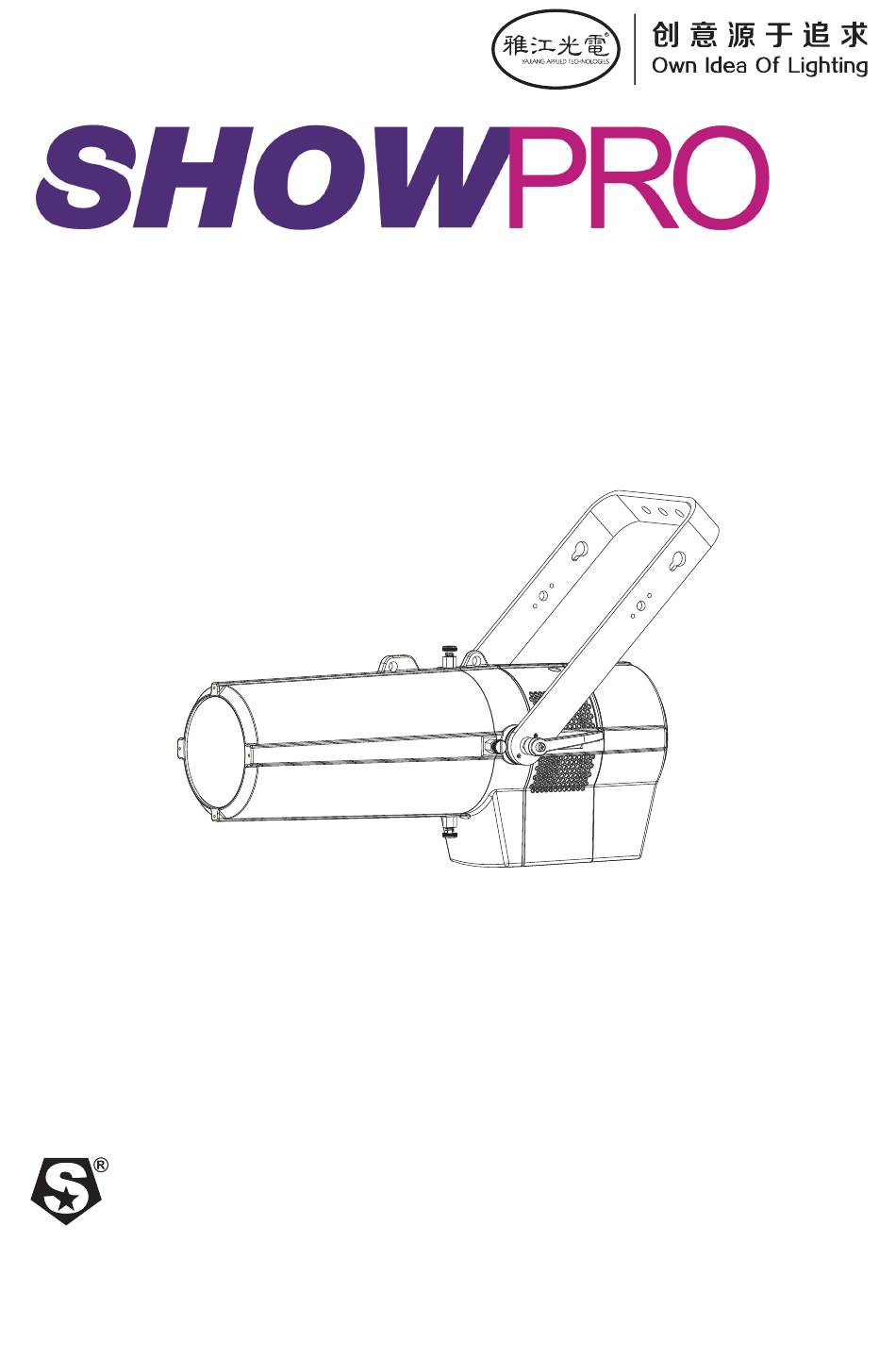

- Page 1 FUSION IP PROFILE 56 USER MANUAL LEDPRO161...
-
Page 2: Product Introduction
Product Introduction 1.1 Specification LEDPRO161 Product Code imenson 812×343×286(mm) Weight 16KG Rated Power 240W Input Voltage AC100~240V Frequency Range 50/60Hz Ambient Temperature -20℃~45℃ Beam Angle 15° ~30° Control Model DMX512/RDM 812.80 mm 343.44 mm... -
Page 3: Safety Warning
1.2 Safety warning IMPORTANT Always read the user manual before operation. Please confirm that the power supply stated on the product is the same as the mains power supply in your area. • This product must be installed by a qualified professional. •... -
Page 4: Installation
Installation 2.1 Mounting The fixture can be mounted in any position.Always ensure that mounting surface can withstand 10 times the weight of thefixture. Always use a safety cable when mounting the fixture in any elevated position. UPRIGHT Important safety note!! Always use a safety cable when installing this unit!! Be sure that the safety cable is connected to a solid load-bearing structure. -
Page 5: Display Panel Operation
DMX Addr.1 DMX Addr.6 DMX Addr.11 ... . DMX512 control As shown on the right, the controller is connected to the Ÿ lamp body in series, the DMX address code for the first lamp is set to 1, and second unit is set to 6, and so on. - Page 6 3.2 Menu MENU STAT DIMMER (0~255) ZOOM (0~255) FOCUS (0~255) GOBO (0~255) STROBE (0~25) (001-512) ADDRESS PERSONALITY SIMPLE MODE 16BIT RUN MODE SLAVE MANUAL PLAY PROGRAM01 PROGRAM02 …… PROGRAM10 EDIT (0~255) PROGRAM01 SCENE-01 DIMMER PROGRAM02 SCENE-02 ZOOM (0~255) …… …… FOCUS (0~255) (0~255)
-
Page 7: Dmx Address Setting
STAT C I Setting MENU STAT DIMMER (0~255) ZOOM (0~255) FOCUS (0~255) GOBO (0~255) STROBE (0~25) Enter the STATIC mode to create the programs Ÿ Push up Combine DIMMER/ZOOM/FOCUS/GOBO/STROBE to create a definite range of colors , Ÿ and down buttons adjust 255 value Push up and down buttons ,Set value of the STROBE,... -
Page 8: Manual Setting
3.7 MANUAL Setting MENU MANUAL PLAY PROGRAM01 SPEED0-255 PROGRAM02 …… PROGRAM10 EDIT PROGRAM01 SCENE-01 DIMMER (0~255) (0~255) PROGRAM02 SCENE-02 ZOOM …… …… FOCUS (0~255) (0~255) PROGRAM10 SCENE-30 GOBO ROTA (0~25) STROBE (0~255) TIME (0~255) FADE Ÿ 【MANUAL】,press 【ENTER】, enter into control knob switch set up. Ÿ... -
Page 9: Wireless Setting
Ÿ 【PERFORM】menu, select【LIVE/STUDIO/POWER】as required fan speed. Ÿ 【XY OFFSET】is the setting to hide the fine adjustment of the refresh frequency, select, 【SHOW】as not hidden, select【HIDE】as hidden, The default setting is【HIDE】. Ÿ 【PWM】 is the PWM refresh frequency selection. When the [XY OFFSET] option is SHOW, the PWM submenu can set X FINE and Y FINE tuning options. - Page 10 SIMPLE VALUE FUNCTION CHANNEL CH.1 DIMMER CH.2 ZOOM CH.3 FOCUS STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) CH.4 NO FUNCTION THUNDER STROBE NO FUNCTION RANDOM STROBE CONTROL NO FUNCTION LIVE STUDIO POWER CH.5 DIM1 DIM2 DIM3 DIM4 ZOOM、FOCUS、GOBO RESET NO FUNCTION...
-
Page 11: Gobo Rotation
MODE 16BIT VALUE FUNCTION CHANNEL CH.1 DIMMER CH.2 DIMMER FINE CH.3 ZOOM CH.4 FOCUS STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION CH.5 THUNDER STROBE NO FUNCTION RANDOM STROBE GOBO ROTATION NO FUNCTION GOBO INDEX (0 —> 360°) STOP ROTATION CH.6 CLOCKWISE (SPEED 1 —>...
