Theremin Jupiter 4

Stand : NOV 2013 (V1.00-GB)

Table of Contents

Need help?

Do you have a question about the Jupiter 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for GOLEM Instruments Jupiter 4

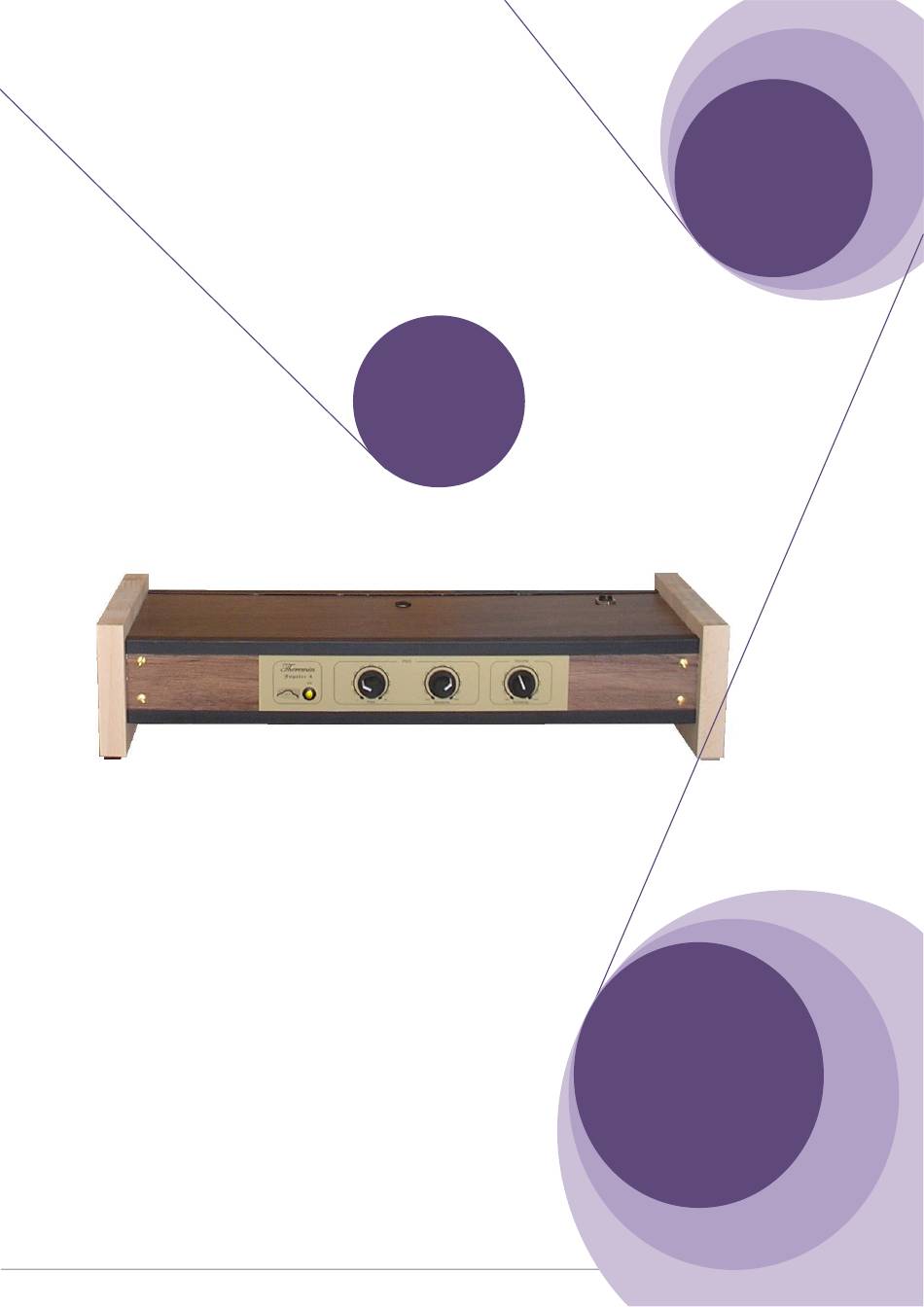

Page 1 Manual Theremin Jupiter 4 Stand : NOV 2013 (V1.00-GB)
Page 2 Package The delivery consists of: 1 x Theremin - Modell Jupiter 4 1 x Rod Antenna with Safety-Ball 1 x Volume-Antenna 1 x Power Adapter 12V / 300 mA The Theremin is delivered ready for operation and calibration. Amplifer connection The Theremin is designed for connection to an amplifier.
Page 3 Device-properties The Theremin is played by the approach and distance of the player's hand. To further the hand is removed from the antenna, to quieter the sound. The volume control is done via the curved antenna of the theremin. Pitch-regulator The play area of Jupiter model includes a frequency spectrum from about 50/100 -1800 Hz (corresponding to about 4 octaves).
Page 4 applies if you choose, for example, in a location in direct sunlight or go with the Theremin from a cold to a heated room. Power The Theremin is used to power the connection of a mains adapter (12V DC). Whenever possible, use only the supplied AC adapter.
Page 5 materials in the vicinity of the antenna affects the pitch-frequency. Minimize disturbing influences at a distance of min. 1 meter around the antenna. Especially following conditions may lead to an increase of the pitch:   reinforced concrete walls  reinforcing mesh in concrete floors ...
Page 6 Calibration The adjuster 2 has the same function as the pitch-regulator on the front of the Theremin. If the control range of the pitch- control is not sufficient to take a desired setting, use the adjuster 2 on the back of the Theremin. Before adjusting the control- regulator, take the knob on the front to a central position.
Page 7 Warning The connection of external devices (amplifiers, etc.) are at your own risk and liability. When operating, a Theremin produces a RF radiation. For safety reasons persons with cardiac pacemakers should not use a Theremin! © Copyright by Fritz Soll / GOLEM-instruments (2013)
