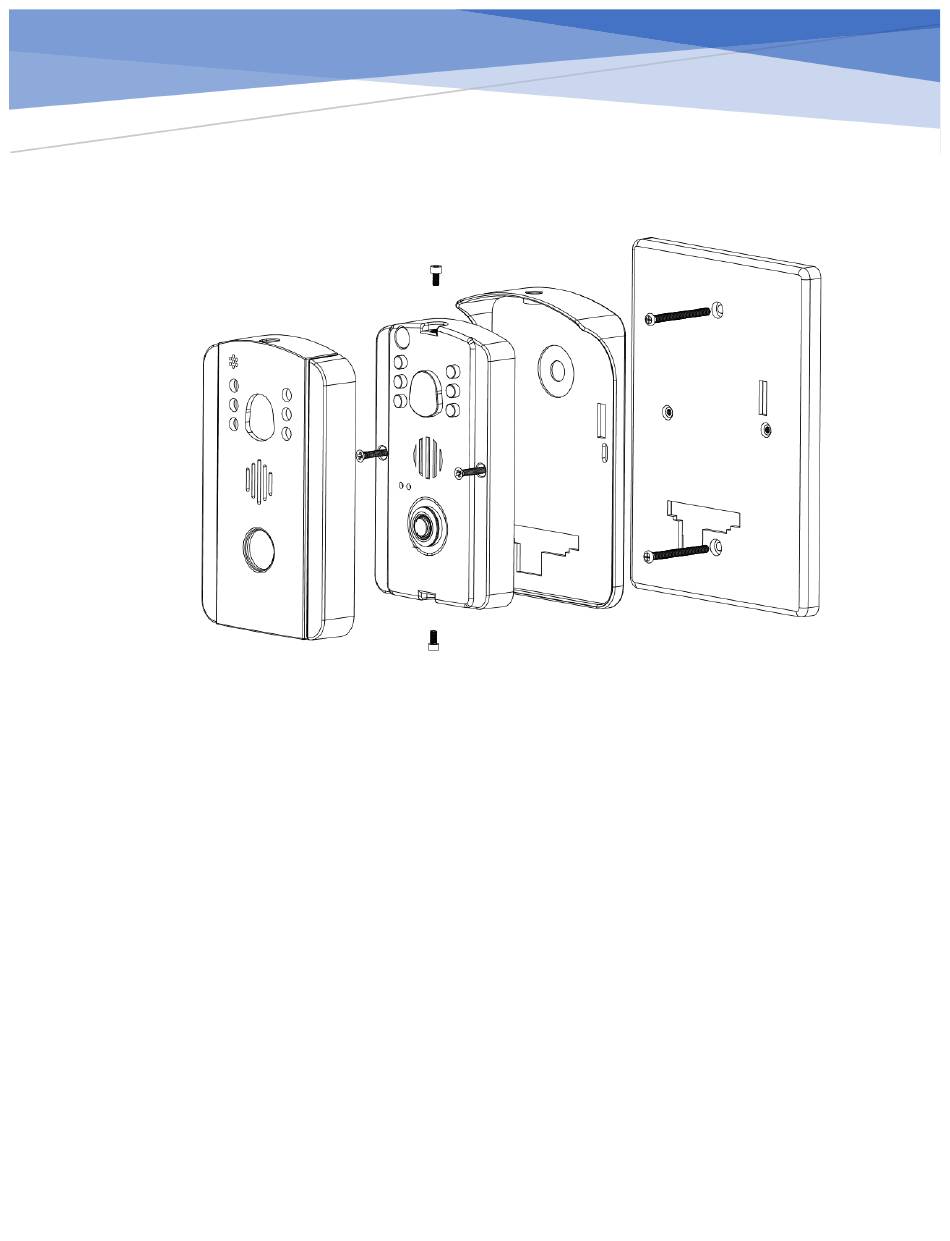

- Page 1 RETRO MYDOOR INSTALLATION INSTRUCTIONS Intrasonic Technology, Inc. – 9525 Forest View Street, Dallas Texas – 877-435-0670 www.intrasonictechnology.com...
-
Page 2: Installation
RETRO M ™ NSTALLATION 1. Ensure that the door has been powered on and connected to the home Wi-Fi before installation* Refer to the Operation Manual for the initial Wi-Fi setup instructions. - Page 3 2. Now is also a good time to position the door unit where it’s going to be installed so you know the angle at which the camera needs to be adjusted. 3. There are two (2 conductor) cables coming out of the back of the included adapter bracket Make sure that these are routed through the bracket opening before installation.
- Page 4 - Bracket (wiring) Attachment to Door Unit - ***You will also see this cable/connector coming through the included adapter bracket (pictured above). Pre-installation, you will want to route this cable through the rain guard first (1) – then connect it to the back of the door station (2).
- Page 5 4. With all of the other wiring routed through the opening of the adapter bracket, position it appropriately and adhere it to the wall. 5. The aforementioned (2-two conductor) cables coming off of the back of the bracket (which should now be routed through the bracket) must also be routed through the opening of the rain guard and connected to the back of the door unit as such_...
- Page 6 6. With the rest of wiring routed through the opening of the rain guard, position the guard on the wall accordingly. We also advise applying some sort of caulk to the top and sides of the guard AND adapter bracket (bottom open) for added weather protection* The station is weather resistant –...
- Page 7 8. Lastly, position the faceplate over the MyDoor™ and secure it in place with the included bolts.
- Page 8 ONNECTORS 1. Connection from Adapter Bracket_ This will be one of the two connectors tethering the adapter bracket to the door station itself.
- Page 9 2. Lock #2 Relay_ You can connect up to two locks/strikes. The pin layout for relay #2 is as below_ EXAMPLE:...
- Page 10 3. Reset/Programming button_ This button serves as both the reset and initial programming button. Refer to the Operation Manual for further details on the programming procedure. *Holding this button for 10 seconds will reset the unit 4. SD Card Slot_ Internal storage for the device can be expanded up to 64GB using a standard Micro SD card.
- Page 11 7. Connection from Adapter Bracket_ This will be one of the two connectors tethering the adapter bracket to the door station itself. 8. Ethernet/RJ45 Connector_ Connect a CAT5 cable to this port (from your home router or switch) for the best data transfer.
