Summary of Contents for Digital Combo DK20S
-
Page 2: Table Of Contents

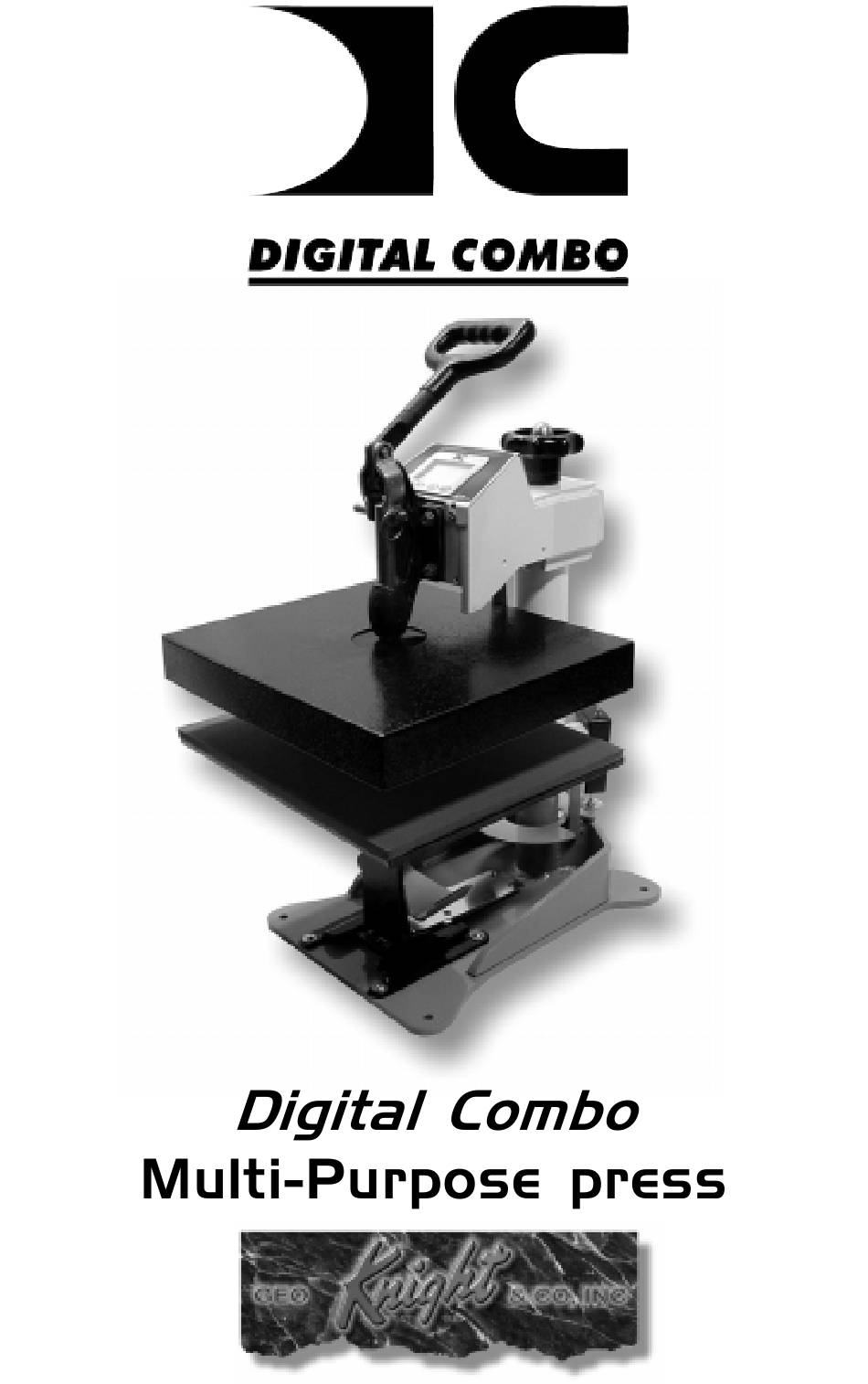

Table of Contents ............. 2 Introduction ..............3 Setup & Suggestions ............4 Basic Use ................4 Setting Time ..............4 Setting Temperature ............5 Setting Height / Pressure ..........6 Guidelines & Standard Settings ........7 Removing a heat platen ............ 8 Interchangeable Heat Platens .......... - Page 3 Congratulations on your purchase of the Digital Combo swinger! This heat press machine has many exciting features, all of which are meant to help make your heat transfer pressing endeavors as successful and easy as possible. Please take the time now to thoroughly read through this manual to become acquainted with them.
-
Page 4: User Options Menu
• Locate the press on a firm, sturdy work surface. • The height of the bench/work space the press is located on would be ideally 27” to 32” high. • Attach the power cord from the rear to the underside of the top head. •... - Page 5 In the default operating mode of the controller, the displayed temperature is the Current temperature. This is the actual temperature of the heat platen surface. Please note that the operating range of the controller is from 150°F to 550°F (65°C to 288°C). During the first heat up cycle of the press, the controller will display 150°F (65°C) until the heat platen temperature rises above that temperature.
- Page 6 The Digital Height/Pressure gauge is a helpful indicator of the current height of the top head as the operator adjusts the pressure. • To decrease the pressure, turn the pressure knob to the left, counterclockwise. • The top head will rise away from the lower table.
- Page 7 This heat conductive mat is included with the Digital Combo and is only used for tile and related surfaces, and requires an additional 35°F to be added to the temperature.
- Page 8 The main feature that makes the Digital Combo so versatile is the interchangeability of the heat platens. Because the heat platens are modular in their method of connection, one platen can be unplugged and another plugged in, in its place. The mechanical connection to the clamp is no more than a simple quick release pin.
- Page 9 • The heat platen can be safely connected with the machine on. However, thermal gloves or oven mitts must be used when handling hot heat platens. • Lift the heat platen into the clamp linkage. Make sure the rear guide fork holds onto the guide pin in the back post of the frame.
- Page 10 The lower table on the machine is interchangeable. Different sized optional tables can be obtained for various materials & handling requirements. The tables simply fit right onto the pedestal. The 2 holes in the drop on tables & curved forms fit onto the 2 steel pins on the pedestal.
- Page 11 This feature is ideal for recalling previously saved settings from various different applications. The presets are extremely easy to use, and bring a powerful level of accuracy to heat transfer pressing. For example, the user may have Setting 00 for Hot-Split T-Shirts. When the user needs to perform that particular application, they simply select Setting 00, and the Current temperature &...
- Page 12 The user options menu is a set of features and calibration options that are programmable and adjustable by the user. It consists of a set of menu items that can be scrolled through. Each menu item is a feature whose values can be viewed and /or changed. To enter the user options menu: •...
- Page 13 The digital pressure/height gauge is calibrated from the factory to recognize the lowest and highest pressure points settable on the press. By defining the highest and lowest points of adjustment, the controller is then able to accurately calculate and display the current heat platen height &...
-
Page 14: Drop Sense
The PRR menu item allows the user to define how sensitive the height gauge is for displaying purposes. This setting defines how quickly the pressure display will appear during normal operation. The lower the sensitivity setting, the less the amount of change is required when turning the pressure knob to cause the PRS display to appear during the default operating mode. -
Page 15: Beep
Normally, all buttons on the keypad beep when pressed. This can be turned off, so all button keypresses are silent. Use the arrow keys to turn this feature On or Off. There are 10 different alarms available to choose from. These alarms are sounded at the end of the timing cycle, as well as if the Drop Sense feature is enabled. -
Page 16: Maintenance
The majority of the press has been designed to be as maintenance free as possible. There are only a few aspects of the machine that should be monitored to insure proper operation. • The clamp/linkage assembly is the greatest area of wear and friction on the press. - Page 17 The following information attempts to address the most probable mechanical and user issues with the press. Most issues with heat transfer presses are application related. That is, they have to do with the results of a particular transfer application. For technical support on problems having to do with the final results of a particular transfer paper or media, please contact the supplier of that transfer media.
- Page 18 Q. I press the keys on the keypad, and there is no sound or response from the controller. A. Check the connection of the keypad to the controller. This is inside the top panel. Unplug the power cord. Remove the two screws in between the clamp/linkage that hold down the top panel, and carefully lift the panel up and look inside at the digital controller.
-
Page 19: Limited Warranty
Geo Knight & Co warrants that the press is free from defects in both material and workmanship One Year from the date of invoice to the buyer. If any parts or workmanship are found to be defective in manufacture, Geo Knight & Co will repair or replace the defective parts or workmanship. In addition, Geo Knight &...
