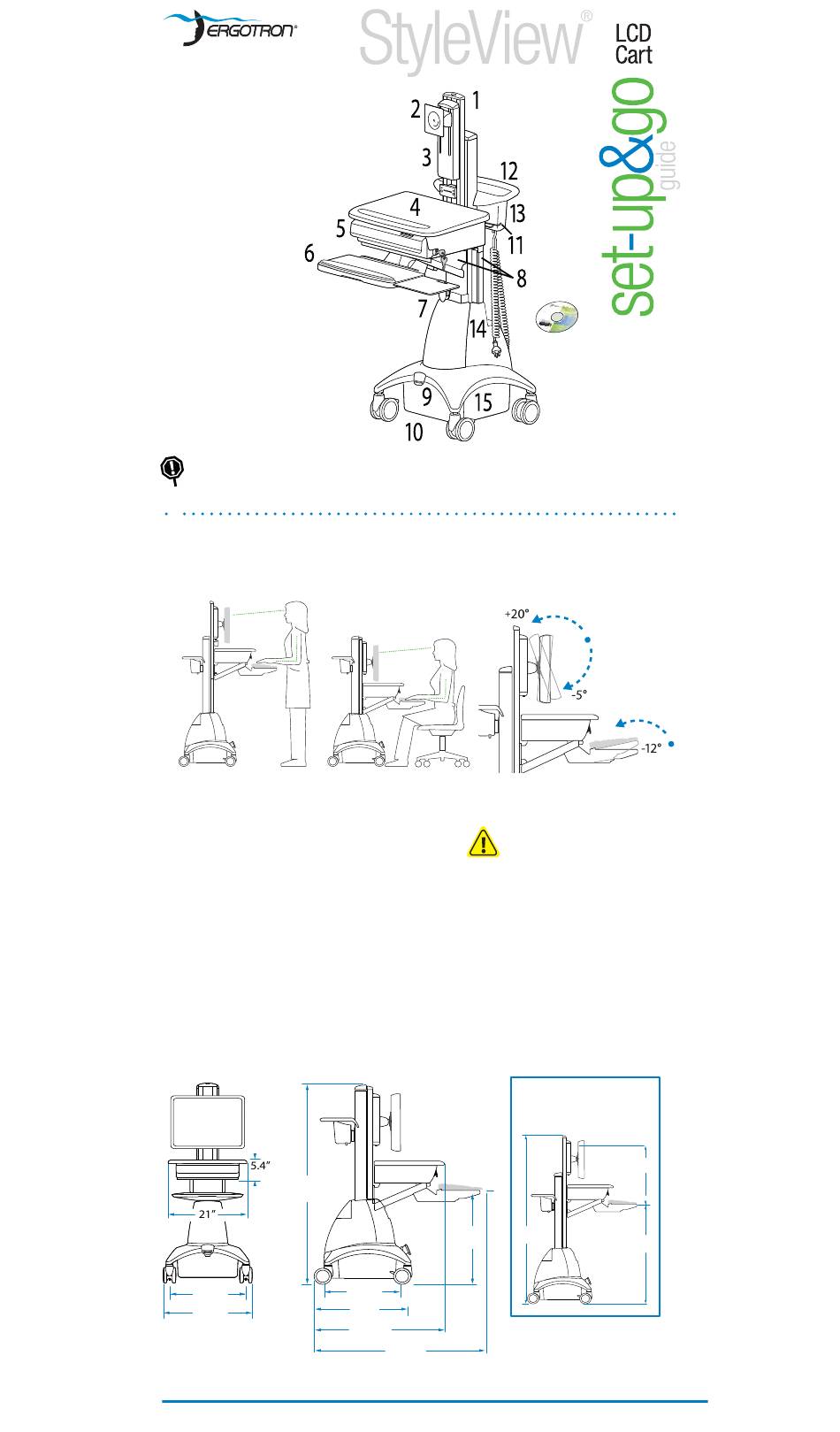

Features
- SV22-92023
1
Riser
2
LCD Pivot
3
5" Lift
4
Worksurface
5
Electronic Autolock Drawer
6
Tilting Keyboard Tray and Wrist Rest
7
Right/Left Mouse Tray and Holder
8
Cable Management
9
Riser Lift Brake
10
Locking Front Casters
11
Scanner Holder Bracket
12
Ergonomic Rear Handle
13
Storage Basket
14
CPU Holder
15
Power System - 120VAC/60 HZ
a 55 Ah Battery
b 4 AC Outlets (300 Watts total)
c Remote User Interface (RUI)
d StyleLink Software CD & Cable
e Coiled Power Cord
Please read all parts of this guide. When set-up is complete, do not discard
this guide. The guide should be fi led in a secure place for future reference.
Cart Specifi cations
- For Power System Specifi cations see page 12.
Range of motion
Vertical Adjustment Range: 20" (508 mm)
STAND
Weight capacities
Display*
Drawer
Worksurface
CPU Holder
Keyboard Tray
Mouse Holder
Scanner Holder
Basket
*
If display is greater than 18 lbs
contact customer care for fi xed pivot.
Dimensions
Riser in Lowest Position
136 mm
50.8"
1290 mm
533 mm
18"
457 mm
21"
533 mm
*
21" (508mm) is the recommended distance between
top of keyboard tray and top of monitor screen.
1 1
c
b
LCD Tilt: ± 25° Viewing Angle
Based on a 17" VESA Compliant LCD
SIT
6-18 lbs
2.72-8.26 kg
4 lbs
1.8 kg
2.5 lbs
1.1 kg
normal use but it DOES NOT increase
25 lbs
11 kg
load capacity. DO NOT load riser with
equipment totalling more than the
2.5 lbs
1.1 kg
maximum weight capacity specifi ed by
.5 lb
.23 kg
Ergotron. Ensure optimum lift function
by testing and if necessary, re-adjusting
.5 lb
.23 kg
tension whenever the weight mounted
5 lbs
2.3 kg
to the riser changes (i.e., equipment is
removed or added). See "Set Riser Lift
Tension" adjustment instructions
step 9 on page 5.
24"
610 mm
18"
457 mm
22.3"
566 mm
28"
711 mm
38"
965 mm
EN
d
e
StyleView powered
carts provide
a
electrical AC power for
mobile point of care
computing equipment
in a healthcare
environment.
Keyboard Tray Tilt: -12°
CAUTION: The lift brake locks
vertical lift of riser during
Riser at Full Height
21" *
533 mm
70.5"
1791 mm
1118 mm
For more information on this
or other Ergotron products,
visit our website:
www.ergotron.com
888-SV-22DL-00 rev C
in
44"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Ergotron StyleView SV22-92023
- Page 1 Keyboard Tray 2.5 lbs 1.1 kg maximum weight capacity specifi ed by Mouse Holder .5 lb .23 kg Ergotron. Ensure optimum lift function by testing and if necessary, re-adjusting Scanner Holder .5 lb .23 kg tension whenever the weight mounted Basket 5 lbs 2.3 kg...
-
Page 2: Mounting Equipment
Products off ering additional security are available for purchase - visit our website: www.ergotron.com Adjust LCD lift for smooth up and down motion. Hold LCD on both sides and lift up and down - if you feel excessive resistance, or if the LCD doesn't stay in the desired position when released, adjust for equal lift in both directions. - Page 3 Mounting Equipment Personalize autolock drawer code. Four AA Unlock drawer with master key (identical dupli- cate keys are provided). Pull drawer open to access battery box; remove box cover; insert the four pro- vided AA batteries. Replace cover and close drawer. Remove the Master Code sticker located near the number pad and place it in the box at right for safe keeping and future reference.
- Page 4 RUI messages about Alcohol Prep with alcohol wipe and allow to dry for one the status of your battery charge! For more information on this or other Ergotron products, visit our website: Up = Unlocked Down = Locked www.ergotron.com 888-24-039-00revA minute before applying tape.
-
Page 5: Cable Routing
Cable Routing Cable Routing. Connect one end of the RUI cables to the RUI that is mounted to the riser. Connect grey cable to grey jack and black cable to black jack. Remove side covers of cable box mounted under the drawer. Route the RUI and computer cables down riser and into the cable box. -
Page 6: Battery Charging Cycle
Riser Lift Adjustment Lift riser to highest position on tower. Turn tension nut up or down as needed. After adjustment, check lift tension by moving riser up and down (as described in step 9b). If more adjustment is necessary, continue turning nut until the riser lift is satisfactory. IMPORTANT Lift riser to highest position before making any adjustments to the tension nut! - Page 7 Beeping will stop only when the charge empties to 0% or when the power cord is plugged-in for recharging. NOTE: If the alarm light is off , the beeping has been disabled and the alarm is mute. For details on enabling and disabling alarm contact Ergotron Customer Care. StyleLink...
-
Page 8: Battery Replacement
Follow LONG TERM Storage Steps (a) - (i) to remove existing battery then continue with steps (k) - (p) below, to connect the replacement battery. After removing battery from cart, lift out of tray. Recycle battery or contact Ergotron for proper battery disposal guidelines. - Page 9 (3) months. If voltage drops below 12.5VAC, fully recharge battery. Contact Ergotron Customer Care for information about how storage might impact the battery warranty. Gently push boot-covered leads back into the cavity left by the removed battery and replace bat- tery cover to base.
- Page 10 - Keep cables neatly organized on the Cart (a variety of solutions are provided with your cart for this purpose). Excess cables should be routed away from moving components with cable clips. Review Cable Routing section of this guide, or contact Ergotron Customer Care for more informa- tion.
- Page 11 Cart Ergonomics Working customize - to your size Set monitor screen about one inch above eye level - unlock brake to allow riser to lift or lower as shown below. Tilt screen for comfortable viewing and to reduce eye and neck strain.
- Page 12 Changes or modifi cations not expressly approved by Ergotron, Inc. could void the user’s authority to operate the equipment.
-
Page 13: Troubleshooting
Mounted equipment on riser does not stay section. exceeds weight capacity. in desired position. Contact Ergotron Customer Care: North America 1-800-888-8458; Europe +31 (0)33-45 45 600 Improper monitor riser Follow "LCD Lift" Adjustment procedure in step 4 counterbalance. on page 2. - Page 14 888-SV-22DL-00 rev C...
