Active-X-Band
Active-X-Band
Radar Target Enhancer
Radar Target Enhancer
OPERATION MANUAL

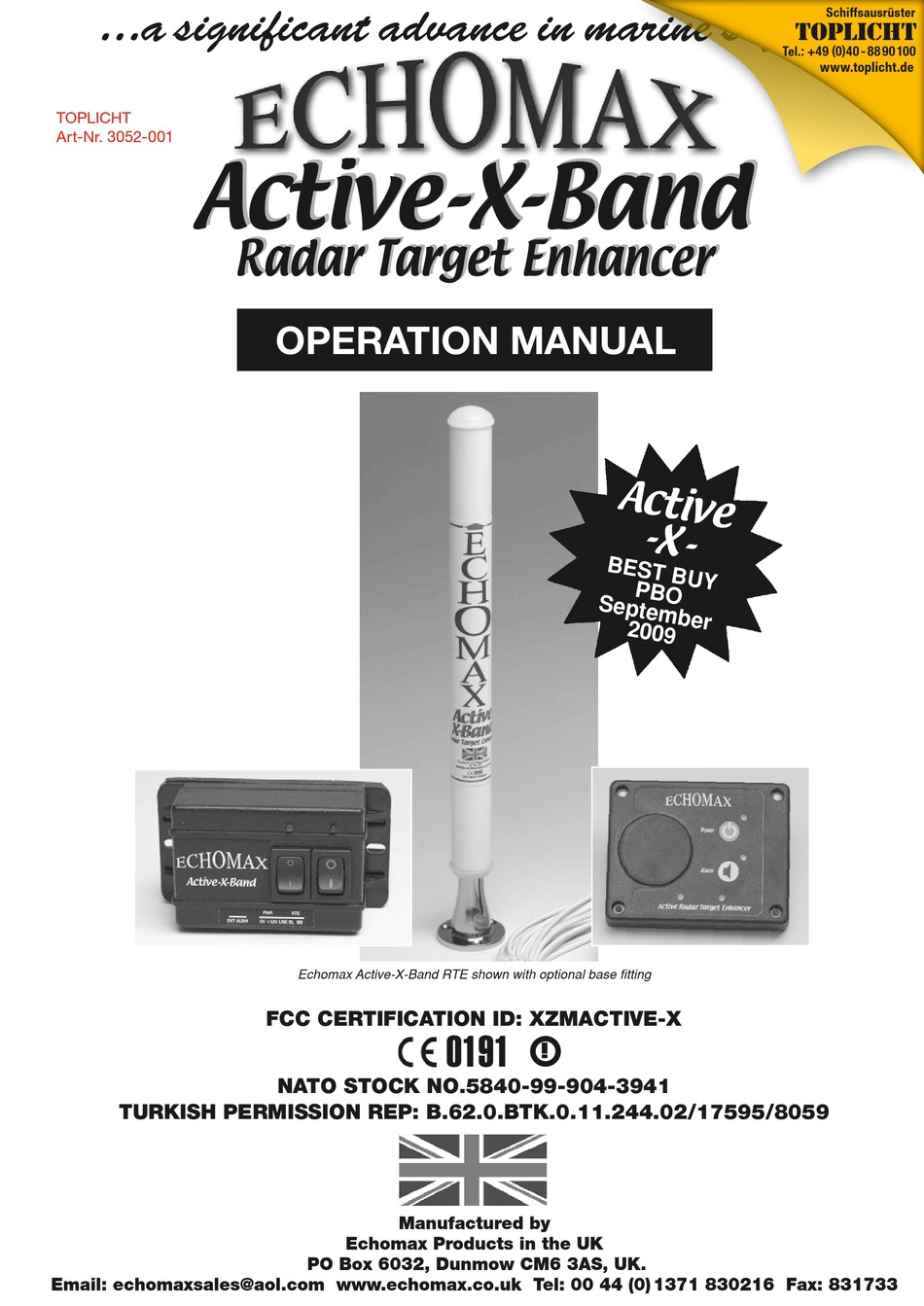

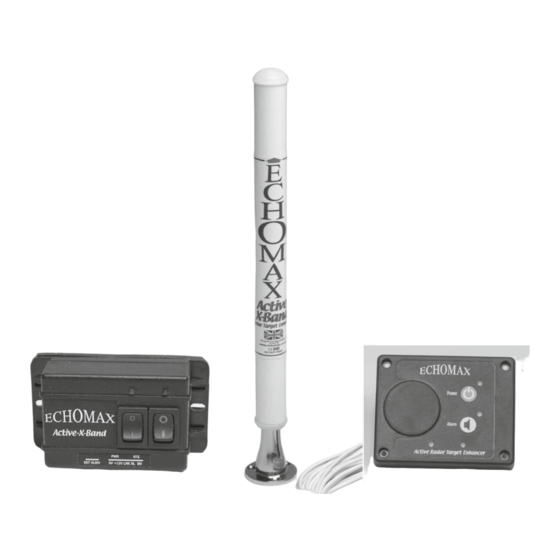

Echomax Active-X-Band RTE shown with optional base fitting
FCC CERTIFICATION ID: XZMACTIVE-X
0191
!
NATO STOCK NO.5840-99-904-3941
TURKISH PERMISSION REP: B.62.0.BTK.0.11.244.02/17595/8059
Manufactured by
Echomax Products in the UK
PO Box 6032, Dunmow CM6 3AS, UK.
Email: echomaxsales@aol.com www.echomax.co.uk Tel: 00 44 (0) 1371 830216 Fax: 831733
Advertisement
Summary of Contents for ECHOMAX Active-XS-Dual Band
- Page 1 Echomax Active-X-Band RTE shown with optional base fitting FCC CERTIFICATION ID: XZMACTIVE-X 0191 NATO STOCK NO.5840-99-904-3941 TURKISH PERMISSION REP: B.62.0.BTK.0.11.244.02/17595/8059 Manufactured by Echomax Products in the UK PO Box 6032, Dunmow CM6 3AS, UK. Email: echomaxsales@aol.com www.echomax.co.uk Tel: 00 44 (0) 1371 830216 Fax: 831733...
-
Page 2: General Introduction
Radar Target Enhancer GENERAL INTRODUCTION The Echomax Active-X Radar Target Enhancer (RTE) is designed to respond to interrogating X band radar (9.3 – 9.5GHz) by receiving a transmitted pulse and amplifying the pulse and re-transmitting the pulse back to the radar at the same frequency with minimum delay, thereby improving the radar detection range and visibility of small targets. - Page 3 Check all above faults. Is RTE in shadow of interrogating radar as it operate when it clearly is interrogated will not operate if masked Buzzer switched on but does not sound Buzzer faulty – return control box to Echomax for inspection when painted by radar TECHNICAL SPECIFICATION Typical performance –...
-
Page 4: Optional Extras
John H. Simpson Managing Director September 2009 GUARANTEE The Echomax Active-X Band RTE is guaranteed for 12 months from the date of purchase and provides for the replacement at our discretion of the complete unit or any of the components... - Page 5 Radar Target Enhancer OPERATION MANUAL FCC CERTIFICATION ID: XZMACTIVE-XS 0191 NATO STOCK NO.5841-99-269-3512 TURKISH PERMISSION REP: B.62.0.BTK.0.11.244.02/17595/8059 Manufactured by Echomax Products in the UK PO Box 6032, Dunmow CM6 3AS, UK. Email: echomaxsales@aol.com www.echomax.co.uk Tel: 00 44 (0) 1371 830216 Fax: 831733...
- Page 6 GENERAL INTRODUCTION The Echomax Active-XS-Dual Band Radar Target Enhancer (RTE) is designed to respond to interrogating both X (9.3 - 9.5 GHz) and S band radar (2.9 - 3.1 GHz) by receiving a transmitted pulse, amplifying and re-transmitting the pulse back to the radar at the same frequency with minimum delay, thereby improving the radar detection range and visibility of small targets.
- Page 7 Buzzer switched on but does not sound Buzzer faulty – return control box to Echomax for inspection when painted by radar Typical performance – QinetiQ Funtington Anechoic Chamber March 2010...
- Page 8 Signed ……………………………………… John H. Simpson Managing Director September 2009 GUARANTEE The Echomax Active-XS-Dual Band RTE is guaranteed for 12 months from the date of purchase and provides for the replacement at our discretion of the complete unit or any of...
- Page 9 Schiffsausrüster TOPLICHT Tel.: +49 ( 0 ) 40 - 88 90 100 www.toplicht.de Art-Nr. 3052-103 RTE Active Waterproof Control Box INSTALLATION AND OPERATION The waterproof control box has been designed for owner installation. The sensitivity of the audible alarm is user adjustable and Audible Alarm Sensitivity If, however, you do not feel confident seek the help of a professional.
- Page 10 Manufactured by Only one control box can be used to indicate S-Band +12v operation by attaching the yellow/green wire to either of Echomax Products in the UK the connections marked above but not both. PO Box 6032, Dunmow CM6 3AS, UK.
