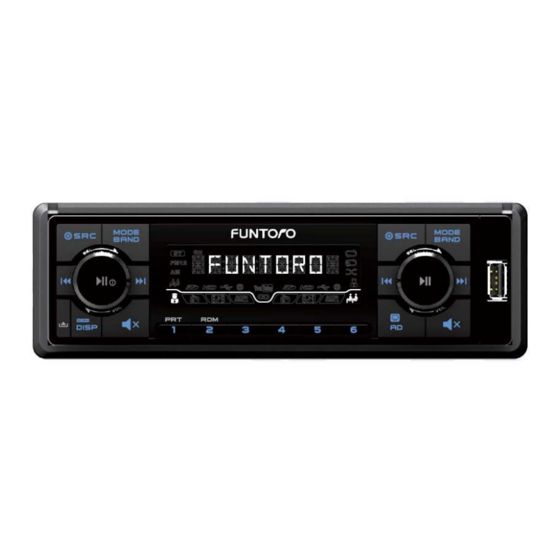

FUNTORO MS 5752 User Manual

Hide thumbs

Advertisement

Table of Contents

Introduction

Thank you for purchasing our product – MS 5752 infotainment system. This product is
specially designed for buses and coaches. In order to ensure more safety when using this
product, please be sure to read this manual thoroughly before installing and using it.
Besides, please notice the installation instructions and keep it for future reference!
The system can be installed and maintained by qualified installation and maintenance
personnel.
Please read each item of this manual thoroughly before installing and using this
system.
It is prohibited to spread the content of this manual without permission.
This manual is only for reference of related information; please make the actual
product as the standard and some items may be subject to change without notice.
Date: 08.01.2015
I
n
f
o
t
a
i
n
m
I
n
f
o
t
a
i
n
m
e
n
t
S
y
s
t
e
e
n
t
S
y
s
t
m
e
m
Page 1 / 16
NU_FMS5752_000_08012015_EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS 5752 and is the answer not in the manual?

Questions and answers

Summary of Contents for FUNTORO MS 5752

  • Page 1: Introduction

    Introduction Thank you for purchasing our product – MS 5752 infotainment system. This product is specially designed for buses and coaches. In order to ensure more safety when using this product, please be sure to read this manual thoroughly before installing and using it.

  • Page 2: Table Of Contents

    Catalog Introduction ☆ Catalog ☆ Main Functions ☆ Specification ☆ Panel Description ☆ Panel Display 8～9 ☆ Function Description ☆ Profile Description ☆ Specific Description ☆ Software Update 10～12 ☆ Installation Guide ☆ System Architecture HDMI ☆ System Architecture VGA ☆...

  • Page 3: Main Functions

    Main Functions Infotainment Maximum resolution: 1920 X 1080 for HDMI, and 1024x768 for LVDS Video format: MP4, AVI, MKV, 3GP, MOV, FLV, F4V, VOB, and MPG Audio format: MP3, ACC, AMR, M4A, OGG and WAV Photo format: JPG Storage: USB (on the front panel), SD Card (2G–32G), SSD (support up to 64G-2TB with EXT2 and NTFS) Support Last Good function (the source from SSD, SD Card and USB ) Announcement...

  • Page 4: Specification

    Specification Chipset Freescale i.MX6 Dual Core LCM module (72mm × 23mm) Display Detachable with anti-thief design 2GB DDR3 SDRAM Memory 8GB eMMC storage Storage Swappable SATA 2.5” SSD , Standard SD & Micro SD slot FM Tuning range (76.0MHz-108.0MHz ) Radio AM Tuning range (522.0KHz-1269.0KHz ) HDMI...

  • Page 5: Panel Description

    Panel Description Please change the above picture to English version Power on/Power off/Play/Pause/VOL/SETTING/SEL Short press: you can play or pause in state of Media; adjust or finish the setting of the item in state of Setting; select specified media file in state of Media List mode. Long press: you can power on in state of Power off;...
  • Page 6 photo, YouTube and e-radio); in state of radio, short press to increase 0.1MHz of FM band and 100 Hz of AM band; in state of Fast Forward, you can switch to (2X/4X/8X/16X/20X/32X); in state of Media list mode, select the next media file in play list.
  • Page 7 of FM band and 100 Hz of AM band; in state of Fast Forward, you can switch to (2X/4X/8X/16X/20X/32X); in state of Media list mode, select the next media file in play list. Long press: in state of Media, long press to fast forward; in state of Radio, long press to forward search the nearest available radio channel.

  • Page 8: Panel Display

    Panel Display There are 3 kinds of display modes, Driver Mode, Passenger Mode and Time Display Mode. As for display function, it’s mainly based on Driver Mode while Passenger Mode subsidiary. 1. In normal status, the function of panel display is mainly based on Driver Mode. 2.

  • Page 9: Function Description

    Profile Description Profile is necessary files for running SuperDIN function. It is stored in SuperDIN flash. Installation guide Copy all profiles to external storage (USB, SD card or SSD) “\funtoro\conf_new” folder. Create a new file “new.flag” under “\funtoro\conf_new” folder. Plug-In the external storage to SuperDIN System will automatically do copy process.

  • Page 10: Specific Description

    DB gain for AM, FM, MP3 and AUX-IN. resources\com.funtoro.posreporter\properties.xml: cloud server information G. resources\com.funtoro.onedin.funtoroframework\properties.xml: set AD download path and other system needed path name. resources\com.funtoro.central.siam.register\properties.xml: set password and other needed setting for running Diagnostic function Specific Description When panel display is in state of Power off, you can press F1 to F3 on keyboard.
  • Page 11 11. If fail, LCM will display “Update Fail” string. 12. When the software is updating, the panel LED (blue/orange) will have a cross flash. After the update is finished, the system will re-boot automatically and enter a normal mode. Update Software by Android APK: Insert USB into the front USB slot.
  • Page 12 Click the item you want to update. If success, the progress bar will have a moving thumb, and system will be reboot after finish. If fail, the progress bar becomes empty. Operator can try again. Date: 08.01.2015 Page 12 / 16 NU_FMS5752_000_08012015_EN...

  • Page 13: Installation Guide

    Installation Guide C 5mm R 0.5x4 170 mm The steps to install: Please turn off the power and switch of the device before installation. Do not power on before connecting well. 1. Put the holder into the hole of super DIN in the car. 2.

  • Page 14: System Architecture Hdmi

    HDMI Splitter Motor controller HDMI IN HDMI IN for Flip down (DC24V) Sys Sw Bus ACC LCD Monitor LCD Monitor Battery Speaker for Passenger Speaker for Driver Impedance 4Ω Impedance 4Ω F-SPK(L)(+)White F-SPK(L)(-)White/Black F-SPK(R)(+)Gray F-SPK(R)(-)White/Black R-SPK(L)SPK1(+)Green R-SPK(L)SPK1(-)Green/Black R-SPK(R)SPK2(+)Purple R-SPK(R)SPK2(-)Purple/Black R-SPK(L)SPK3(+)Green R-SPK(L)SPK3(-)Green/Black R-SPK(R)SPK4(+)Purple R-SPK(R)SPK4(-)Purple/Black...

  • Page 15: System Architecture Vga

    VGA Splitter Motor VGA IN VGA IN controller for Flip down (DC24V) Sys Sw Bus ACC Battery LCD Monitor LCD Monitor Speaker for Passenger Speaker for Driver Impedance 4Ω Impedance 4Ω F-SPK(L)(+)White F-SPK(L)(-)White/Black F-SPK(R)(+)Gray F-SPK(R)(-)White/Black R-SPK(L)SPK1(+)Green R-SPK(L)SPK1(-)Green/Black R-SPK(R)SPK2(+)Purple R-SPK(R)SPK2(-)Purple/Black R-SPK(L)SPK3(+)Green R-SPK(L)SPK3(-)Green/Black R-SPK(R)SPK4(+)Purple R-SPK(R)SPK4(-)Purple/Black...

  • Page 16: Trouble Shooting

    Trouble Shooting Failure description Reasons Solutions Check the power cable is Power polarity error Power off connected properly. The fuse is burned out. Change the fuse Turn on the volume Adjust the volume The speaker is not properly Check circuit No sound connected.
