Thorlux Lighting SmartScene IR Remote Series Installation Instructions

SmartScene
LCM 14816 (Regular), LCM 14817 (Teaching),
LCM 14818 (Meeting), LCM 13479T (IR Smart Remote)
SMART SCENE IR REMOTE
BATTERIES:
■
WEIGHT:
■
IR Smart Remote
(LCM 13479T)
Funtion
A Smart luminaires to maximum
B Return to automatic
C Smart luminaires synchronise then dim
Funtion
1
Scene 1 - Smart luminaires to 50% xed
2 Scene 2 - Smart luminaires to 25% xed
3 Scene 3 - Smart luminaires OFF
21LFT 26215 Issue 2
IR Remote
CR2032 3V
100g
Meeting Version
(LCM 14818)
Funtion
A On
B O
C Raise/Lower lamp level
Funtion
1
Return whole group to automatic
2 Return individual tting to automatic
3
Press and hold to activate group dimming control
INSTALLATION INSTRUCTIONS
OPERATING INSTRUCTIONS

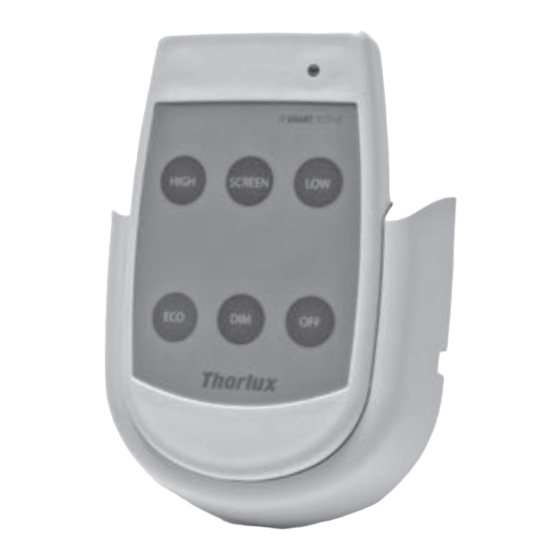

The SmartScene IR
■
Remote allows the user
to control a group of
Smart luminaires.
Simply point the remote
■
at a Smart pod in any
luminaire in the group.
For controlling individual
■
luminaires, use a Thorlux
Smart Remote
(LCM 13479).
112
66
FUNCTIONS
A
A
1 2
IR SMART SCENE
MAX 1 2
B B
C 3
Regular (LCM 14816) Teaching (LCM 14817)
IP20
IP22
IP23
IP40

DIMENSIONS

2 - Slots 4.8 x
10mm.
for Holder
IP42
xing
32
85
IP43
36
CRS.
90
IP44
1 2
IP50
IR SMART SCENE
IP53
IP54
C 3
IP55
IP60
IP64
IP65
30
22
125
25
PN 2341B Sep 17
