Instructions
Vital 1

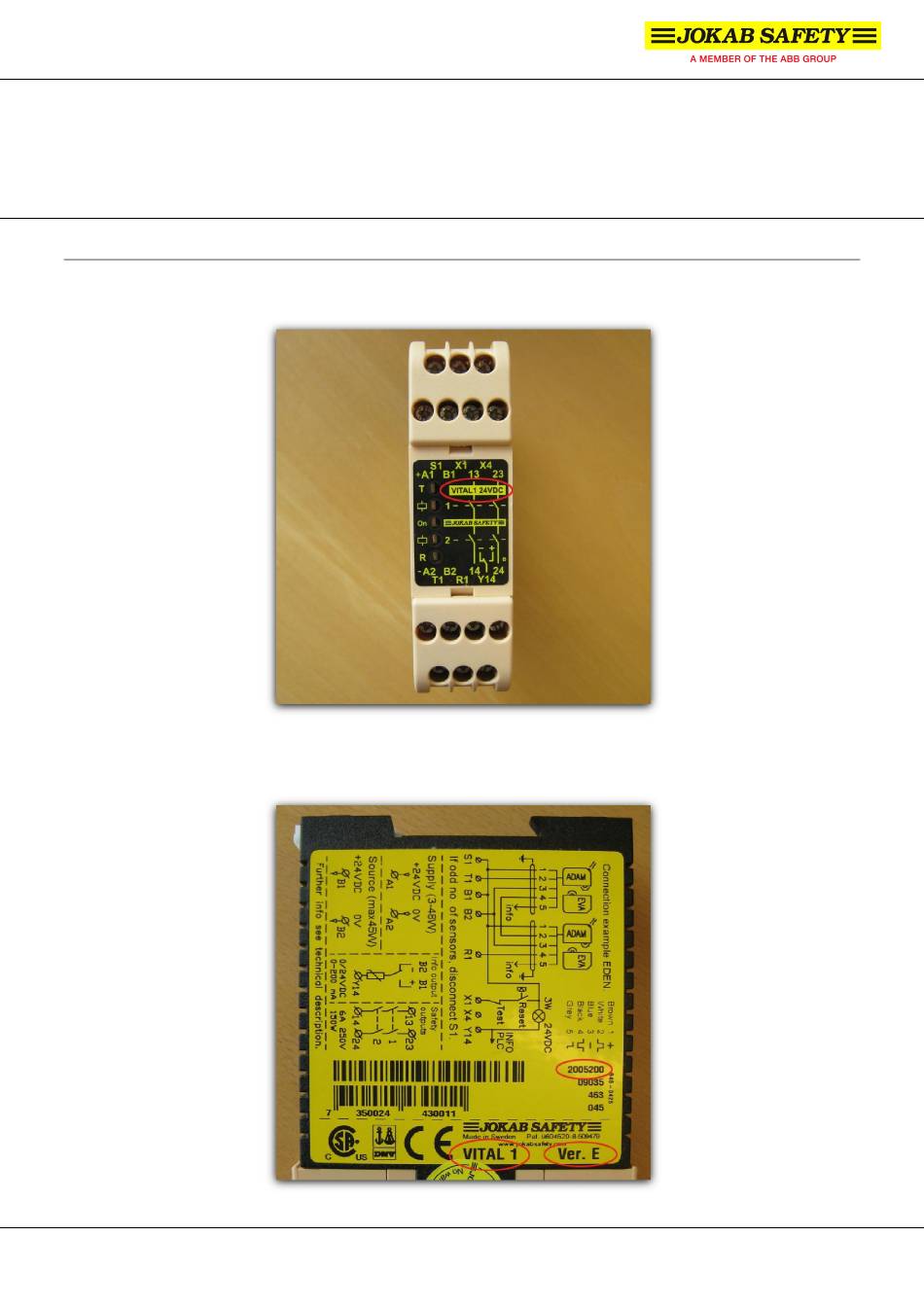

Identification
Identifying a Vital 1 safety module

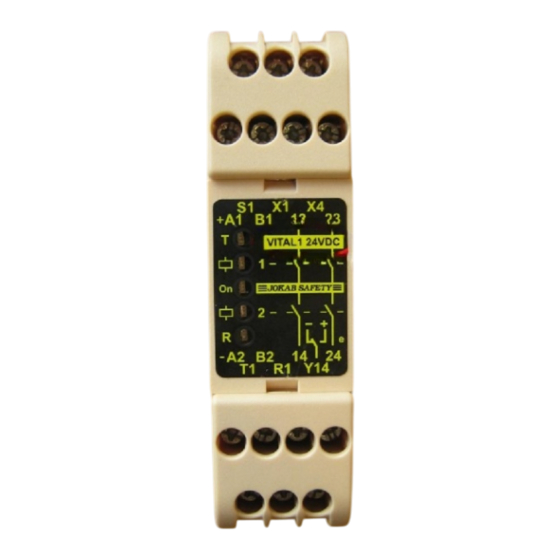

When installed in an electrical cabinet, the easiest way to identify a Vital 1 unit is by checking the front panel,
where the product name is printed as shown in the picture below.
The article number for all versions of the Vital 1 safety module is 20-052-00. The article number (printed as
2005200), model version and product name can all be found on the label at the side of the unit, as shown in the
picture below.
ABB AB / Jokab Safety Varlabergsvägen 11, S-434 39, Sweden
www.jokabsafety.com

Advertisement

loading

Summary of Contents for jokab safety Vital 1

  • Page 1 Identification Identifying a Vital 1 safety module When installed in an electrical cabinet, the easiest way to identify a Vital 1 unit is by checking the front panel, where the product name is printed as shown in the picture below.
  • Page 2 Identifying different Vital 1 versions Version B Version C Version E Version F Version F2 Version G Enclosure 1 - Product identification draft_110510a www.jokabsafety.com...
  • Page 3 General information Checking the safety functions of Vital 1 is normally easy to perform at a machine where Vital 1 is in operation. Do not disconnect the VITAL 1 for testing. This should only take a few minutes. The normal check is performed by using the safety devices connected to Vital 1 to verify that the safety functions are working properly.
  • Page 4 www.jokabsafety.com...

  • Page 5: Unit Replacement

    4 ) Detach the Vital 1 unit from the 35 mm DIN rail using a screwdriver as shown in the pictures below. First use the screwdriver to pull back the white latch at the bottom of the unit, then turn the unit forward from the top to detach it from the DIN rail.
  • Page 6 5 ) Mount the new Vital 1 unit (delivered without terminal blocks) to the 35 mm DIN rail according to the pictures below. The latch should snap into place. 6 ) Reattach the connection blocks to the new Vital 1 unit. Make sure all cables connected to the connection blocks are in place.
  • Page 7 www.jokabsafety.com...
