London Emblem Badgemaker 5 Instruction Manual

STARTING BADGEMAKING

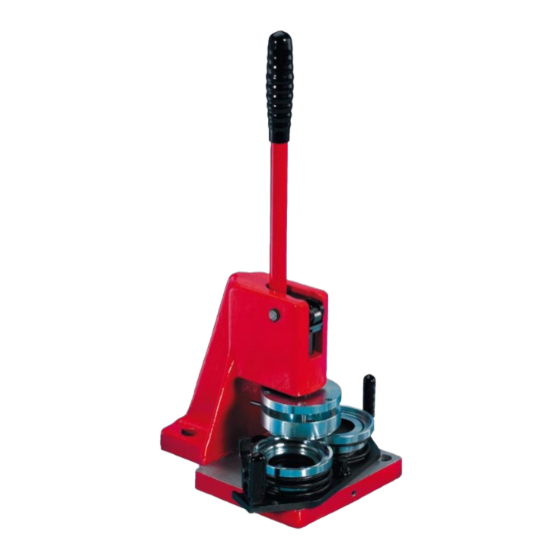

Badgemaker 5

Instruction Manual

NOTES
• Remove body and handle from packaging and dispose of all packing
• It is important that your Badgemaker is operated in a secure position either
through use of G clamp or mounted onto a board or bolted to a stable
work surface.
• Recommended thickness for prints when used with acetate
between 80 and 115 gsm (eg. standard photocopying paper is
80gsm).
• After loading die, always ensure that it is located directly under the
top die.
• Metal rings and tops as well as plastic seals can stick together, so always check
that only one at a time is used.
• Never allow the machine handle to spring back.
• When cutting out your prints using the rotary cutter, ensure that you cut out on a suitable surface
such as Perspex, nylon or polypropylene. Any other surface used may damage the blade on the
cutter – suitable boards are available from London Emblem.
STEP BY STEP GUIDE TO BADGEMAKING
Badges
Stage 1: Place metal badge top (rim down) in right hand die in circular slot. Cover with cut out print
(printed side up) and one plastic
pull handle
Stage 2: Place pinned back (zigzag side of pin showing) in left hand die. Swing left hand bottom die
clockwise under top die and pull handle
clockwise to remove
25mm Badges
Complete Stage 1 of the badgemaking process. Place metal ring, rim upwards in die. Swing die
clockwise under top die and pull handle
anti-clockwise to remove
London Emblem Ltd., 4 Sherwood Road, Aston Fields Industrial Estate, Bromsgrove, Worcestershire, B60 3DR
Tel: +44 (0)1329 822900 • Fax: +44 (0)1329 82900 • Email: sales@londonemblem.com • www.londonemblem.com
Swing right hand bottom die anti-clockwise under top die and
towards you to complete
badge from machine. If required, turn the back to position design.
badge from machine. Insert supplied pin in back.
is
stage.
towards you to complete assembly. Swing die set anti-
towards you to complete assembly. Swing die set
