Summary of Contents for SPIDER SAC8

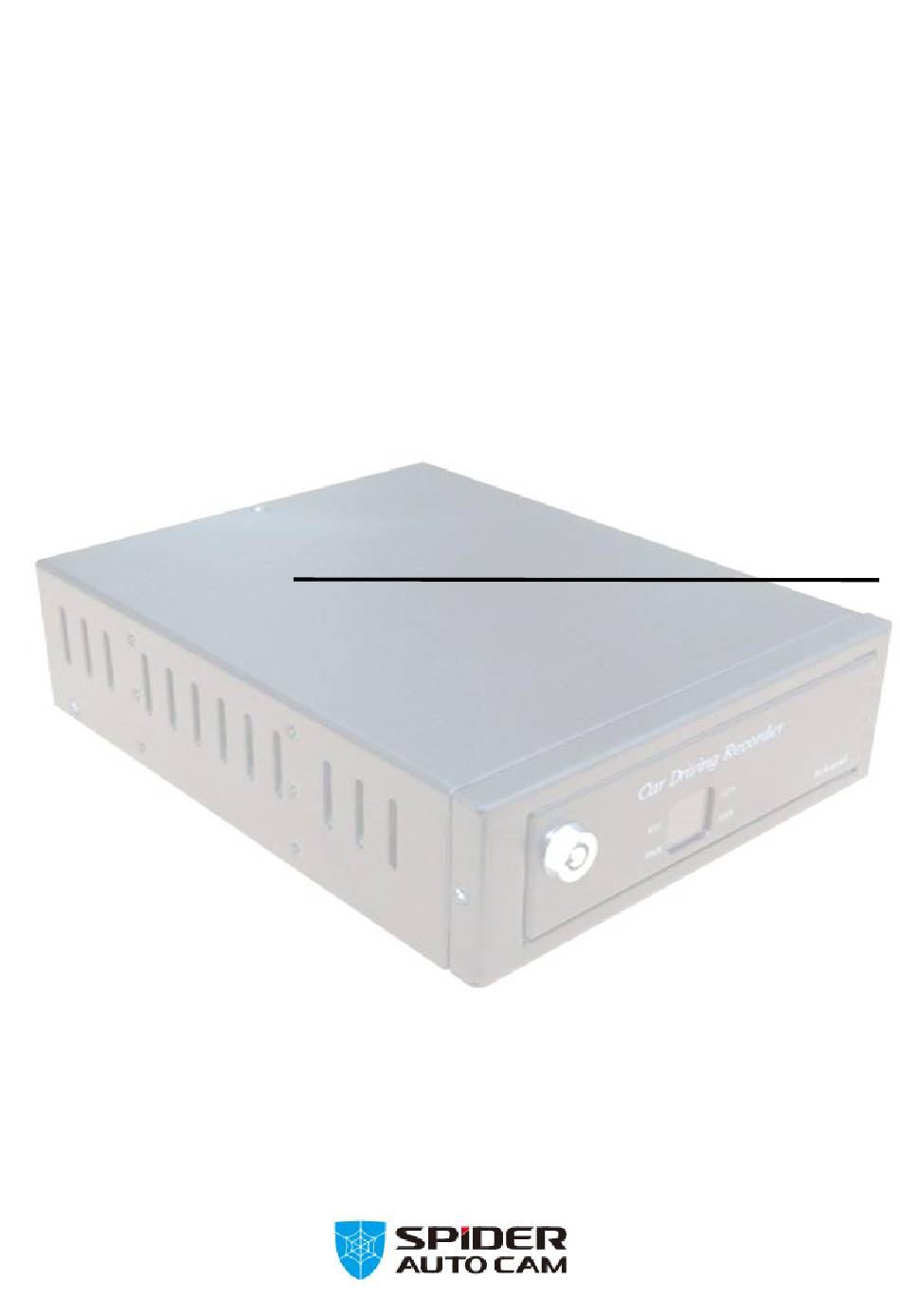

  • Page 1 SAC8 User’s Guide 8Ch Car Driving Recorder...

  • Page 2: Table Of Contents

    Contents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3-7-8. Set up for vehicle information ∙∙∙∙∙∙∙∙∙∙ 25 1. Introduction 4. Playback 1-1. SAC8 Overview ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4-1. Playback ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 26 1-2. Rear ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 4-2. Set the year, month, date to playback ∙∙ 27 1-3. Remote controller ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 4-3.

  • Page 3: Preface

    Preface Notice Any unauthorized use of this guide or its contents is prohibited. The contents may be changed without notice. The contents of this user guide are comprehensively designed to provide adequate information to set up and operate the purchased device. Please contact DIS if you have any questions or find any omissions.

  • Page 4: Safety Advice

    Safety Advice Safety Advice CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
  • Page 5 Safety Advice GPS Reception It may take between five and thirty minutes to get GPS reception. 1. Activate the product in an area without large buildings to improve GPS reception. The commercial purpose GPS has the average range error of more than 15 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc.

  • Page 6: Contents

    Contents The Components may be changed without notice. Normal Components Blackbox Remote control Remote control Receiver A/V out HDD Knob Power cable Options Components GPS Antenna Digital IO Cable Cameras ※ The pictures in this manual may differ from the actual product. ※...

  • Page 7: Introduction

    1. Introduction 1-1. SAC8 Overview Door Open Inside of door Front view Power Switch Power On/Off Reset Button Reset as factory default USB 2.0 Upgrade or backup for USB memory Audio Output port Playback audio LED indicators Indicate the device ‘s status with LED SSD/HDD slot Removable 2.5”...

  • Page 8: Rear

    1. Introduction 1-2. Rear Rear Diagram IrDa VI (Video) Tx Gnd C2 S6 S4 S2 S1~S6 : ARM In C1(12V): ARM Out C2(Relay): ARM Out Power (RS232)Rx Gnd CC Gnd S5 S3 S1 A/V Out Power Rear Video Input : Use the car signal cable bundle for this connection. Connect the appropriate car signals to the labeled cables.

  • Page 9: Remote Controller

    1. Introduction 1-3. Remote controller, A/V output pin Remote controller • ▲▼◀▶ (arrows) : Used when the focus is moved. • OK : When you choose to enter into a sub-menu or control. • MENU : Menu screen will pop-up. It is also used to move to the upper menu.

  • Page 10: Live Monitoring

    3. Live Monitoring 3-1. Live Display From the live display, user can monitor as various division and full screen display. Enter the search & setup menu. Camera Name : Indicate the camera’s name. Date & Time : Indicate the date and time. Recording Icon : Indicate the recording status as icon Orange Continuous Rec...

  • Page 11: Menu

    3. Live Monitoring 3-2. Menu Access the menu from live window. Screen layout split : Show channels into 1, 4, 9 split s. Playback : Enter the playback window. Backup : Enter the backup window. Setup : Enter the system setup window after input the password. <...

  • Page 12: System Setup

    4. System Setup 4-1. Virtual Keyboard Using virtual keyboard, enable to input alphabet and numbers. Enable to change the camera name. The name change of the camera (default Camera 1~ 8) Using the remote control’s ‘enter’ key, input “a~z” Enable to change the alphabet and number key Delete key Space key...

  • Page 13: Input The Password

    4. System Setup 4-2. Input the password Input the password to login the system. 1 Password Only if the password set up, password window will be appeared. Using virtual keyboard, password can be typed. Click ‘Ok’ to enter the next step.

  • Page 14: Device

    4. System Setup 4-3. Device 4-3-1. Camera Setup Set up for enabling/disabling the camera and camera’s name. 1 Enable the camera set up for enabling/disabling cameras. ON : Enable the camera. OFF : Disabling the camera. 2 Camera Name Change the camera title. Using virtual keyboard, set up the camera title.

  • Page 15: Sensor Input

    4. System Setup 4-3. Device 4-3-2. Sensor input Setup for sensor. Max 6ea of sensor can be set up. 1 Sensor Name Set up for sensor name using virtual keyboard. 2 Sensor type Normal Open : Alarm can be triggered when the signal becomes CLOSED. Normal Close : Alarm is triggered when the signal becomes OPEN.

  • Page 16: Video Image Setup

    4. System Setup 4-3. Device 4-3-3. Video image setup Cameras’ brightness, saturation, Contrast and tone. 1 Video Adjustment Each camera’s display can be set up indivisualy. Brightness : Set up the brightness. ( -20 ~ 20 ) Saturation : Set up the saturation. ( -20 ~ 20 ) Contrast : Set up the contrast.

  • Page 17: Recording

    4. System Setup 4-4. Recording 4-4-1. Recording Setup Set up for resolution, frame and video quality. 1 Channel Indicate the camera’s channel number. Normal Frame Set up for normal recording. NTSC : 1 ~ 30 (For 8ch, 120fps can be recorded in total.) PAL : 1 ~ 28 (For 8ch, 100fps can be recorded in total.) Event Frame Set up for event recoding.

  • Page 18: Recording Mode

    4. System Setup 4-4. Recording 4-4-2. Recording mode Setup for recording mode. 1 Pre recording Depending on the set seconds: (1~10sec), for every event there will the set amount of pre-recorded data. Post recording - Depending on the set seconds: “ 3~ 60 “, for every event there will the set amount of post-recorded data.

  • Page 19: Event

    4. System Setup 4-5. Event 4-5-1. Motion detection setup Setup for motion detection. Camera’s sensitivity and usage can be set up. Enabling motion detection. Enable/Disable the motion detection. motion detection recording the sensor output is are linked with the event. Sensitivity Set up for sensiity of motion detection.

  • Page 20: Event Setup

    4. System setup 4-5. Event 4-5-2. Event setup Set up how DVR operates with sensor, motion detection and impact. 1 Sensor, Motion detection, Impact Sensor: With sensor, enabling sensor output 1, output 2 or recording Motion detection : with motion detected, enabling sensor output 1, output 2 or recording Impact detection : with impact detected, enabling sensor output 1, output 2 or recording.

  • Page 21: Additional Feature

    4. System setup 4-6. Additional feature 4-6-1. G sensor setup Set up for G-sensor’s sensitivity. Sensitivity while driving Low is dull and highest is sensitive. Sensitivity while parking Low is dull and highest is sensitive. Set up for gravity axis Dvr can be malfunction due to G-sensor’s malfunction if gravity axis is not set up properly.

  • Page 22: System Setup

    4.System setup 4-7. System Setup 4-7-1. Language Select the language. 1 Select language Select the language then DVR will restart automatically. 4-7-2. Time setup Set up for time, date and speed unit. 1 Standard Time Set up for standard time using GMT.

  • Page 23: Password Setup

    4. System setup 4-7. System Setup 4-7-3. Password setup Setup the password to log in. Current password Using virtual keyboard, type the current password. New password Type the new password. Confirm password Confirm the new password by typing new password again.

  • Page 24: Parking Mode Setup

    4. System Setup 4-7. System Setup 4-7-4. Parking mode setup Set up for parking mode. 1 Use Parking mode Select the check box to enable/disable the parking mode. Current voltage Display the current voltage information after power connection. Calibration Voltage Between the cable and the power boxes, depending on the environment, the actual voltage and the equipment’s voltage is different.

  • Page 25: Signal Type

    4. System setup 4-7. System setup 4-7-5. Signal type Select the signal type between PAL and NTSC. 1 PAL , NTSC Set up for PAL and NTSC. Exit the setup menu, DVR will restart automatically. To apply the changed signal type, DVR must be restarted. 4-7-6.

  • Page 26: Disk Management

    4. System setup 4-7. System setup 4-7-7. Disk management Set up for disk initialization, disk scanning and reset the setup. Initialize the disk Initialize the disk. All data will be deleted. Disk scanning Scanning for logical examination of the disk. Reset to factory default Reset the configuration to factory default.

  • Page 27: Playback

    5. Playback 5-1. Playback The various search functions of this unit can be used to playback the desired video along with audio. Multiple channel can be playback as various speed. 1 Camera : Select the playback camera. It can be also selected with the remote controller’s number key.

  • Page 28: Set The Year, Month, Date To Playback

    5. Playback 5-2. Set the year, month, date to playback Using calendar, move to the desired date and time. Select the date that the recording was enabled. 1. With the remote controllers arrow key, move the focus to calendar button. 2.

  • Page 29: Playback Control

    5. Playback 5-4. Playback Control Press the ‘Play’ button to playback the data. 1. From the playback menu, using remote controller’s arrow key, move the focus to camera button. 2. Push ‘OK’ to select the camera which will be playback.(or push the number button to select/unselect the camera.

  • Page 30: Split Mode Setup

    5. Playback 5-5. Split mode setup 1. Except the selected channel playback. 2. Select the screen to display the split screens. 3. To view a full screen while playback, push the number to select the desired channel. 4. To view as split screen, push the number again.

  • Page 31: Backup

    6. Back up 6-1. Back up The recorded image can be back up into SSD, HDD, CF memory as AVI file. (Refer: PC viewer back up. Page 43) Camera : Select the camera for back up. By pushing the number button of remote controller, select/unselect cameras.

  • Page 32: Viewer

    7. Viewer 7-1. Installation for viewer/Playback the image Run the execution file to install the viewer. Select the language and speed unit. Change the speed unit. Then click “accept”.
  • Page 33 7. Viewer 7-1. Installation for viewer/Playback the image Dismantle SSD/HDD/CF card from SAC8 and check the image from the PC. 1. Dismantle (SSD /HDD) for playback the image. ① ② ③ ① Unlock the device using key. ② Pull out the removable (SSD / HDD) cartridge to dismantle.
  • Page 34 7. Viewer 7-1. Installation for viewer/Playback the image Dismantle SSD/HDD/CF card from SAC8 and check the image from the PC. 4. Run the PC Viewer ① By double-clicking the viewer icon, execute the viewer as administrator. ② Click ‘allow’ if the security window is appeared.
  • Page 35 7. Viewer 7-1. Installation for viewer/Playback the image Run the execution file to install the viewer. 6. Run the PC viewer ② ① ③ ① Initial Viewer window. ② Select “Date”. (The last recording date will be indicated.) ③ Select “Time” and “Min”. Orange Continuous recording Purple...

  • Page 36: Configuration Of The Viewer (1)

    7. Viewer 7-2. Configuration of the viewer (1) The provided PC Viewer must be used to access the recorded data, including all video and audio data. Once accessed, the video and audio data may be converted into an AVI file. 1 Video Playback Screen : Playback the recorded image.
  • Page 37 7. Viewer 7-2. Configuration of the viewer (1) Playback control : Playback the recorded image. The initial data Playback 1 frame reverse 1 frame playback playback The last data Reverse playback Stop 7 Camera : Select the camera 8 Time slide bar : Enlarge the time slot as 4 steps. By sliding the time slide bar on the bottom for more precise changes.
  • Page 38 7. Viewer 7-2. Configuration of the viewer (2) Motion, Sensor, Impact and emergency event recording can be playback Event recording playback : Indicate the event recording item. Motion Event for motion detection Sensor Event for sensor detection Impact Event for impact sensor Emergency Event for emergency signal Previous...

  • Page 39: Normal Recording Playback

    7. Viewer 7-3. Normal recording playback 7-3-1. Select the playback date and time Select the date and time to move to playback. 1. By clicking the calendar button, pop up the calendar window. Using ◀ ▶ button, move to the date which has recording data. Calendar button 2.

  • Page 40: Time Scroll Bar Usage

    7. Viewer 7-3. Normal recording playback 7-3-3. Time scroll bar usage a. Time graph zoom in 1. Click the left side of the mouse on time graph. 2. Time graph will be zoomed by multiple clicking. b. Time graph zoom out 1.

  • Page 41: Event Search

    7. Viewer 7-4. Event search Indicate all events – motion, sensor, impact or emergency in the event list. Double click to playback the event recording data. 1. To search the event, click on the tab. 2. If you double-click the event list, the "...

  • Page 42: Capture

    7. Viewer 7-5. Capture Capture the image while playback. It can work the playback pause. Save as jpg or png <Refer 36 page>. 7-6. Print the image Print the image while pause status. <Refer 36 page>. Type the title and contents. Preview the image which will be printed out.

  • Page 43: Backup

    7. Viewer 7-7. Backup Backup the recorded image into another HDD or USB memory. <Refer 36 page>. Backup type : Select the backup type. a. Time setup : Back up as the recording data file. This backup file can be playback from the viewer only. b.

  • Page 44: Viewer Setup

    7. Viewer 7-8. Viewer setup Set up for viewer’s language, speed unit and update. <Refer 36 page>. 1 Language setup : Select the language. DVR should be restarted Speed unit setup : Select the speed unit( Km/h , Mile/h ). Update : Update the latest firmware.

  • Page 45: Dvr Setup

    7. Viewer 7-9. DVR setup Set up for DVR’s configuration. This configuration can be uploaded with SSD, HDD, CF CARD and USB) <Refer 36 page >. Detailed settings, refer to the manual of the main unit.

  • Page 46: Appendix

    8. Appendix 8-1. Specifications Camera Input : 27K ~ 41K Pixel Recording resolution : 720 x 480 (D1)  Recording frame : Max 120 fps @ 720 x 480  Impact sensor : 3 axis impact sensor  GPS : External GPS (G-mouse type) ...

  • Page 47: Dimensions

    Supplement 8-2. Dimensions...
  • Page 48 Technical Support & Warranty TECHNICAL SUPPORT For Technical Support, please contact your local distributor. LIMITED WARRANTY This product is supplied with 1 year warranty. The Warranty excludes products That have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase.
