Human Touch iJoy-2400 Quick Start Manual

To ensure that Human Touch

products are repaired in a manner that is fully consistent with the practices used during the manufacturing process, Human Touch requires that all

product repairs are performed using only factory-new parts and in accordance with these product repair instructions.

Tools Required: flat-head screwdriver to replace wheel/axle, Phillips-head screwdriver to replace wheel receptacle.

SAVE ALL REMOVED PARTS FOR USE DURING REASSEMBLY

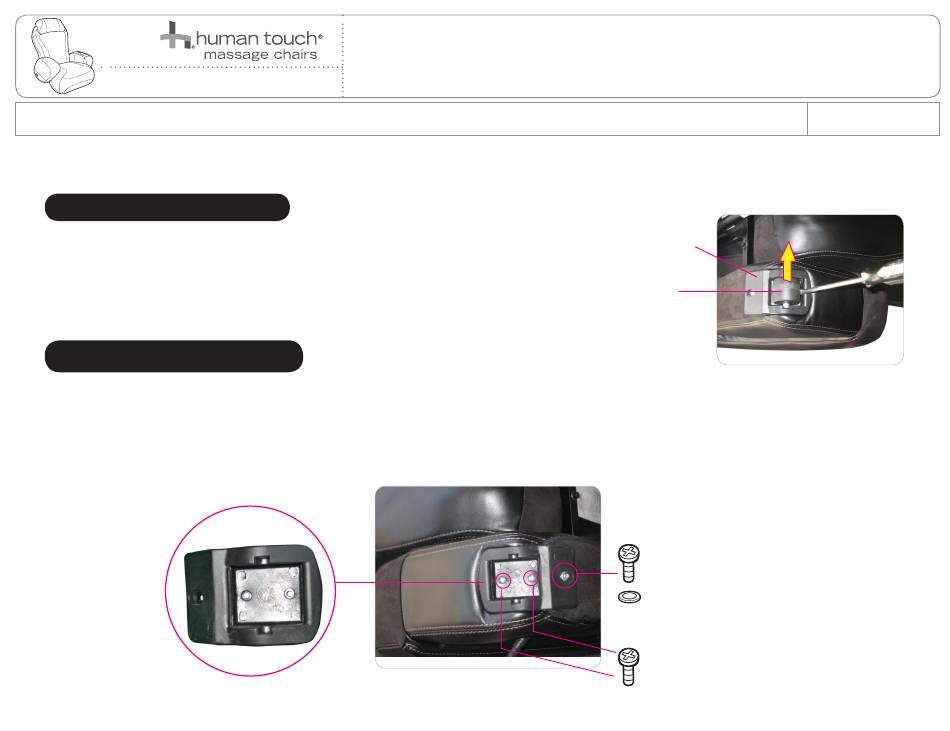

REMOVING THE WHEEL AND AXLE

1. Tip the chair gently forward, resting the headrest on the floor.

2. Insert a flat-head screwdriver between the wheel and the receptacle wall (Fig.1).

3. Use the screwdriver as leverage to pry the wheel loose, freeing the wheel and axle from the chair (Fig.2).

IF YOU ARE REPLACING THE WHEEL RECEPTACLE:

1. Using a Phillips-head screwdriver, remove the rear receptacle screw/washer and the two screws on the bottom of the receptacle (Fig.2).

NOTE: Be sure not to lose the rear screw washer.

2. Place the new wheel receptacle into position, then replace the three screws, ensuring that the rear screw/washer is placed in the rear screw hole.

REPLACING THE WHEEL/AXLE/WHEEL RECEPTACLE

iJoy-2400

Wheel receptacle

Receptable wall

(Fig.2)

Wheel

(Fig.1)

Rear receptacle screw

Washer

X1103

Feb 04, 2010

SERVICE LEVEL: 1
