Freeviewshop Technical Communication
Datasheet
Installation Instructions:
Setting the Satlink 4000 receiver up with an existing satellite
dish for Freeview reception.
The Receiver is pre configured for a Satellite Dish aimed at OPTUS D1
(Freeview and Sky).
Plug your set top box in and turn it on and select the appropriate AV input on your TV. The Satlink 4000 is pre
configured for an 11300MHz L.O. LNB. If you see the "No Signal!" message when you select TV One and TV3 you
probably don't have an 11300MHz L.O. LNB and should try changing the LNB L.O. freq to 10750MHz as shown
below.

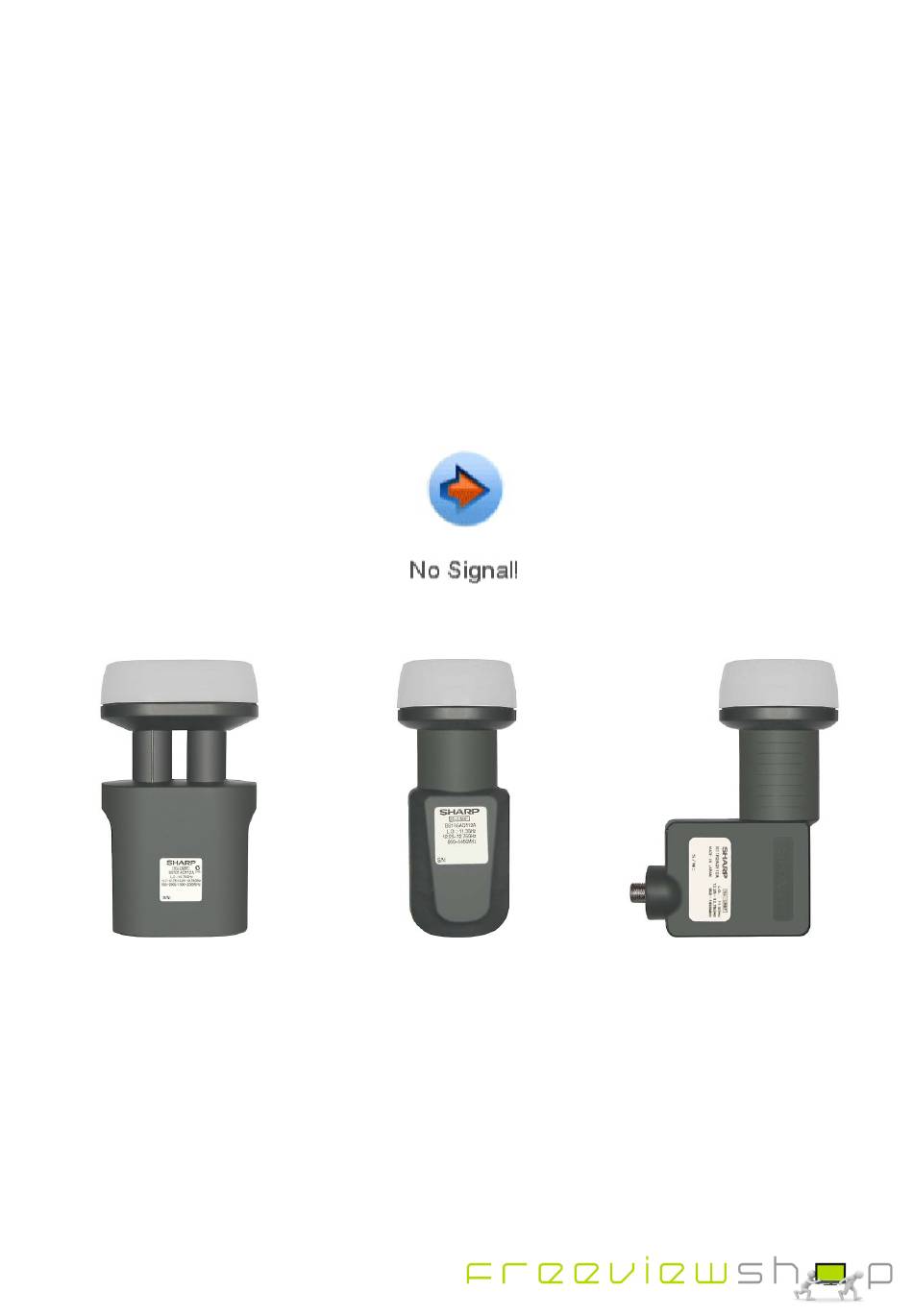

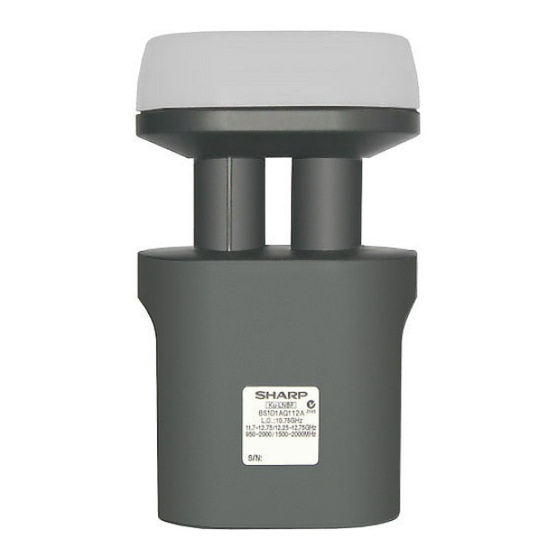

The LNB at the left below has a L.O. of 10750MHz, if you have one of these you will need to take the steps shown
below:
10750 MHz
11300MHz
11300MHz
How to change the LNB L.O. frequency to 10750MHz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satlink 4000
Summary of Contents for Satlink 4000
-
Page 1: Installation Instructions
(Freeview and Sky). Plug your set top box in and turn it on and select the appropriate AV input on your TV. The Satlink 4000 is pre configured for an 11300MHz L.O. LNB. If you see the “No Signal!” message when you select TV One and TV3 you probably don’t have an 11300MHz L.O. - Page 2 Freeviewshop Technical Communication Datasheet If you have the LNB shown on the left press MENU on your remote control. Scroll to Installation and press OK, then Scroll down to Antenna Setup and Press OK. ...
- Page 3 Freeviewshop Technical Communication Datasheet Scroll to LNB Freq will probably be 11300MHz. Use the > to change it to 10750MHz and press OK. You should then see the Signal Quality increase, Now Press Exit 3 times and you should be able to watch TV. ...
