Electrotren E2592 Service Sheet

1
5
6
10
11
12
16
15
21 22
28
29
32
33 34
HORNBY HOBBIES LTD
Westwood Industrial Estate,
Margate, Kent, CT9 4JX
United Kingdom
www.hornbyinternational.com
E2592 / E2592S
E2593 / E2593S
3
2
7
18
17
89
88
23 25 26
24
30
35
36
HORNBY ESPAÑA S.A. HORNBY ITALIA S.r.l, HORNBY FRANCE SAS,
Federico Chueca, s/n via Ferri, 14/16 Parc d'activites de Gomberville,
28806 Alcalá de Henares 25010 Borgosatollo 78114 Magny les Hameaux
Madrid, España Brescia, Italia France
Locomotora eléctrica RENFE 251.015
4
9
8
14
13
19
20
27
31
37
HORNBY DEUTSCHLAND GmbH,
Ostpreußenstraße 13,
96472 Rödental
Deutschland

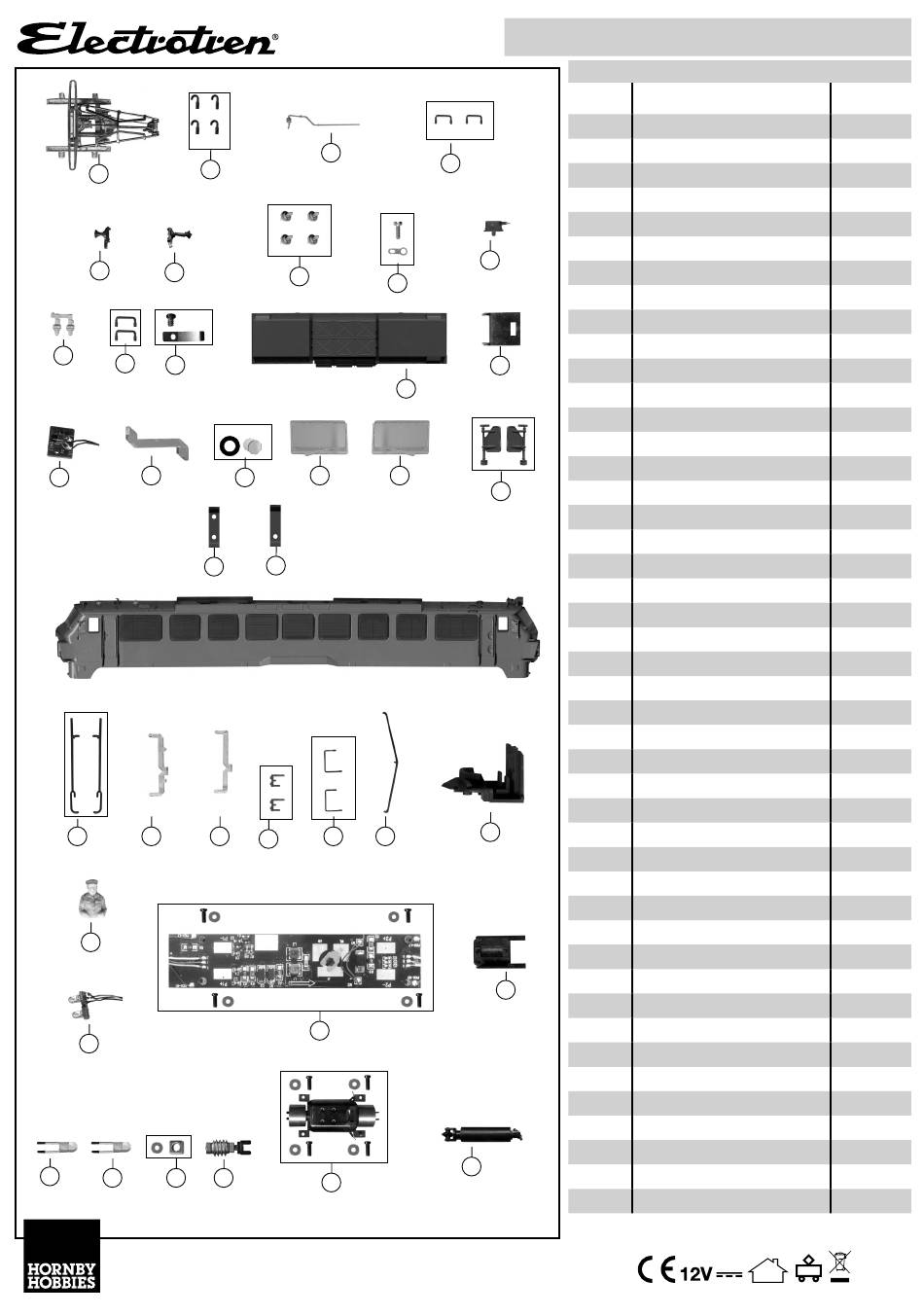

LISTA DE RECAMBIOS / LIST OF SPARES
