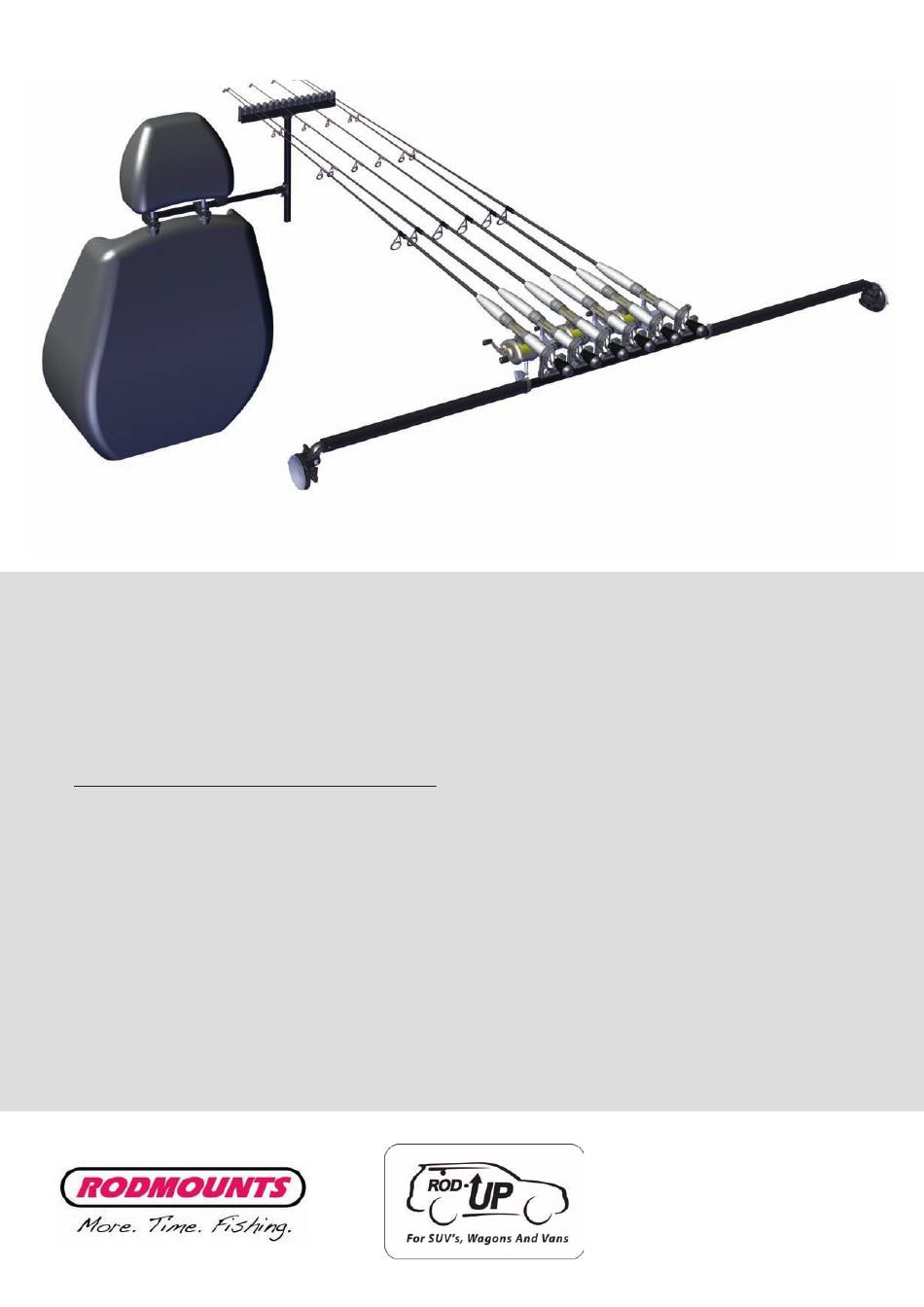

INSTALLATION INSTRUCTIONS
ROD UP - Model RUPC - For SUV's, Wagons and Vans
Please read these instructions carefully
•
Make sure the suction cups and windows are clean before attaching
•
Do not place suction mounts on the applied resistive conductors (defoggers) or antennae on the glass.
Doing so will prevent a vacuum from forming
•
Check and secure all connections before driving
•
Maximum weight capacity: 15 lbs. / 7kg
•
Suction mounts should be re-set at least every 2 weeks
•
Phillips screwdriver may be required, see section B of the installation instructions
www.rodmounts.com
Advertisement
Summary of Contents for RODMOUNTS ROD-UP RUPC
- Page 1 Check and secure all connections before driving • Maximum weight capacity: 15 lbs. / 7kg • Suction mounts should be re-set at least every 2 weeks • Phillips screwdriver may be required, see section B of the installation instructions www.rodmounts.com...
-
Page 2: Package Contains
PACKAGE CONTAINS Part Part Part Name Quantity Drawing Part Name Quantity Drawing Telescopic Tube - Foam Tip Holder Small OD Rear Assembly Dovetail Tube Assembly Adapter Half-Wrap Tee Rod Holder Metal Thumbscrew Horizontal Assembly Plastic Thumbscrew Dovetail Tube - Vertical 380mm / 15”... - Page 3 IMPORTANT INFORMATION Please Note: It will be very helpful to have an idea of where you want the rod holders to be positioned on the rear tube assembly before assembling to your vehicle. Depending on the width of your vehicle, some or all of the rod holders can be positioned on the small tube, narrower vehicles may require that some of the rod holders be positioned on the small and large tubes.
- Page 4 SECTION A - ASSEMBLING REAR ASSEMBLY 1. Position Rod Holders (3) onto Telescopic Tube (1) 2. Insert Telescopic Tube (1) into each Dovetail Tube Assembly (2) 3. Loosen wing nut on suction mount 4. Attach one suction mount to rear side window. Be sure suction cups and windows are clean.
- Page 5 SECTION B - ASSEMBLING REAR ASSEMBLY. POSITIONING ROD HOLDERS TO LARGE TUBE 1. If positioning the Rod Holders (3) topside of the Dovetail 2. To position Rod Holders (3) below the tube, remove the Tube Assembly (2), it is possible to slide the Rod Holders Tube Stop (requires philips screwdriver).
- Page 6 ASSEMBLING TIP HOLDER ASSEMBLY 1. Determine which headrest you want to use and the 2. Install Adapter (8) to the correct Dovetail Tube - Vertical appropriate Dovetail Tube - Vertical, long (5) or short (6) 3. Lift headrest to its fullest height 4.
- Page 7 ASSEMBLING TIP HOLDER ASSEMBLY 9. Slide Foam Tip Holder (7) onto Adapter (8) 10. Install Half-Wrap Tee (9) over extended Horizontal Assembly (10) securely 11. Adjust height of Dovetail Tube - Vertical and tighten Thumbscrew (11) Please Note: The tip holder can be adjusted horizontally and vertically for maximum passenger room.
- Page 8 PLACING RODS IN THE ROD-UP 1. Adjust the rubber tension bands on the Rod Holders (3) 2. Adjust the Foam Tip Holder (7) height for easy loading for maximum security 3. Place rod grip in Rod Holder (3) 4. Position rod tip into Foam Tip Holder (7) slots 5.
- Page 9 POSSIBLE ROD HOLDERS POSITIONS The above images show just a few of the possible positions for the rod holders on the rear tube assembly. You may want to position the rod holders to accommodate your vehicle for optimum usage. Additional rod holders are sold seperately.
- Page 10 Risks such as ineffectiveness or other unintended consequences resulting from, but not limited to, failure to follow instructions will be assumed by the buyer or user. In no case will RodMounts be held liable for consequential, special or indirect damages resulting from the improper handling, storage or use of this product.
