Nupi NIRON Installation

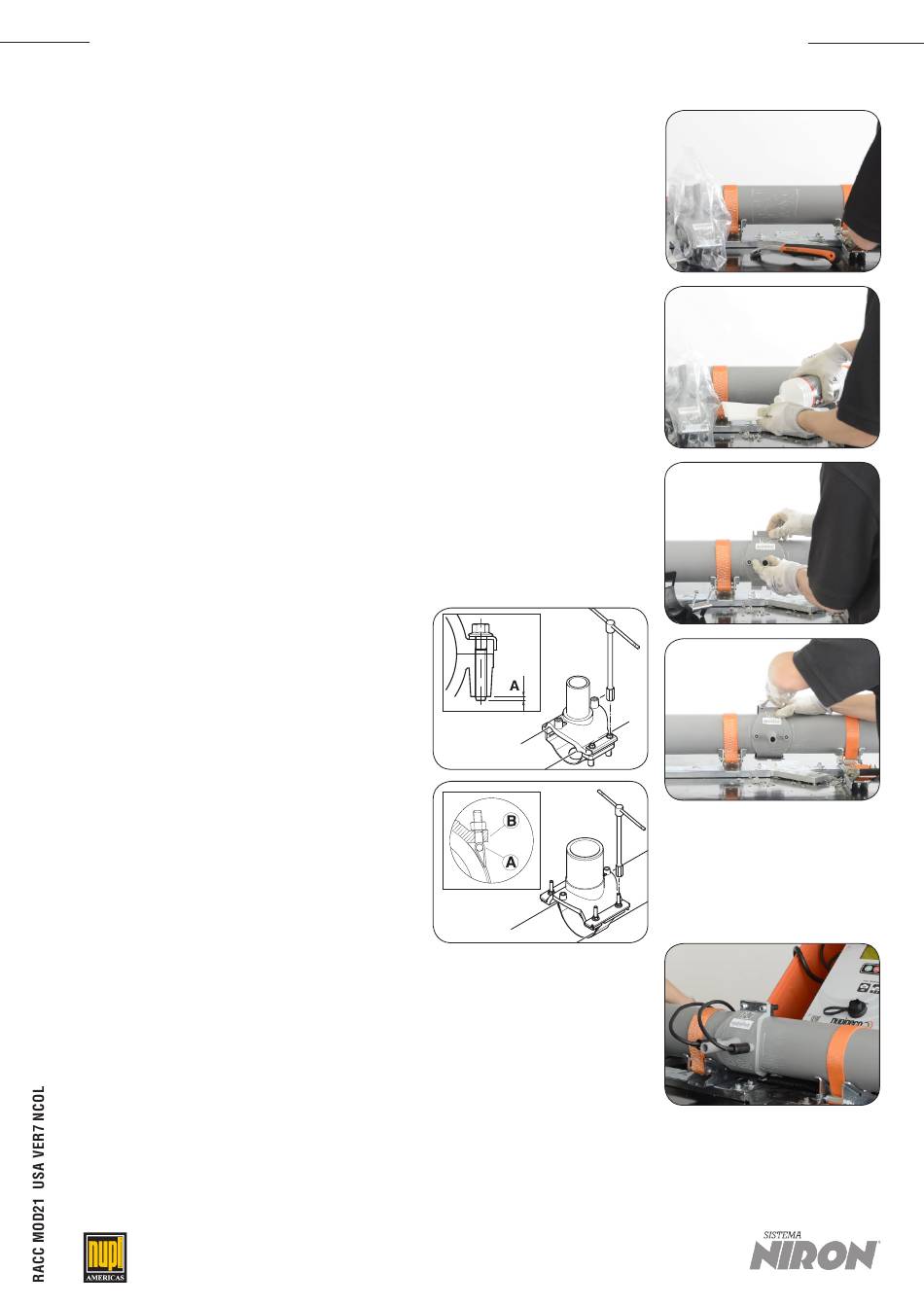

ELECTROFUSION BRANCH SADDLE INSTALLATION

1. Measure the length of the fitting and mark the welding area with a marker. Scrape the pipe
surface carefully using a scraper.
2. After scraping, remove dirt and grease from the welding area of the pipe and the inside of the
saddle, using an appropriate cleaning agent. Wait until the clean parts are completely dry.
3. Apply the saddle onto the pipe watching out not to dirty the previously cleaned surfaces.
4. Fasten the saddle on the pipe using the
QUICK-COUPLING PLASTIC UNDERCLAMP: hook up the
square holes of the underclamp to the teeth of the upper
part. Line up the metal spacer and use a wrench to tighten
the two screws until they are in position A in the lower part
(feel the screws sticking out the bottom).
FLEXIBLE BELT: use a wrench to tighten the four screw
nuts until the U-bolt A and the top part of saddle B come
into tight contact.
5. Connect the two cables of the electrofusion machine to the connectors of the branch saddle,
scan the barcode with the barcode scanner or enter the welding parameters manually. After
completing the welding process, verify that no material has leaked out of the joint between the pipe
and the fitting and wait for the completion of the cooling time indicated on the barcode.
