INSTALLATION INSTRUCTIONS
MILANO FLUSH TO WALL SUITE
DESCRIPTION
This toilet suite is a fully concealed, back to wall suite that has a variable set out option.
The suite is supplied with an adjustable S Trap connector fitting that permits a 90-180mm set out range. The suite can
also be connected in a P Trap configuration (fittings not supplied).
The water inlet is adjustable.
The cistern is bolted to the pan from inside the cistern tank and can be removed if necessary for servicing.
The suite has a soft close seat that is attached via top-fixed bolts. The seat is removable for cleaning.
Floor fixing brackets are provided.

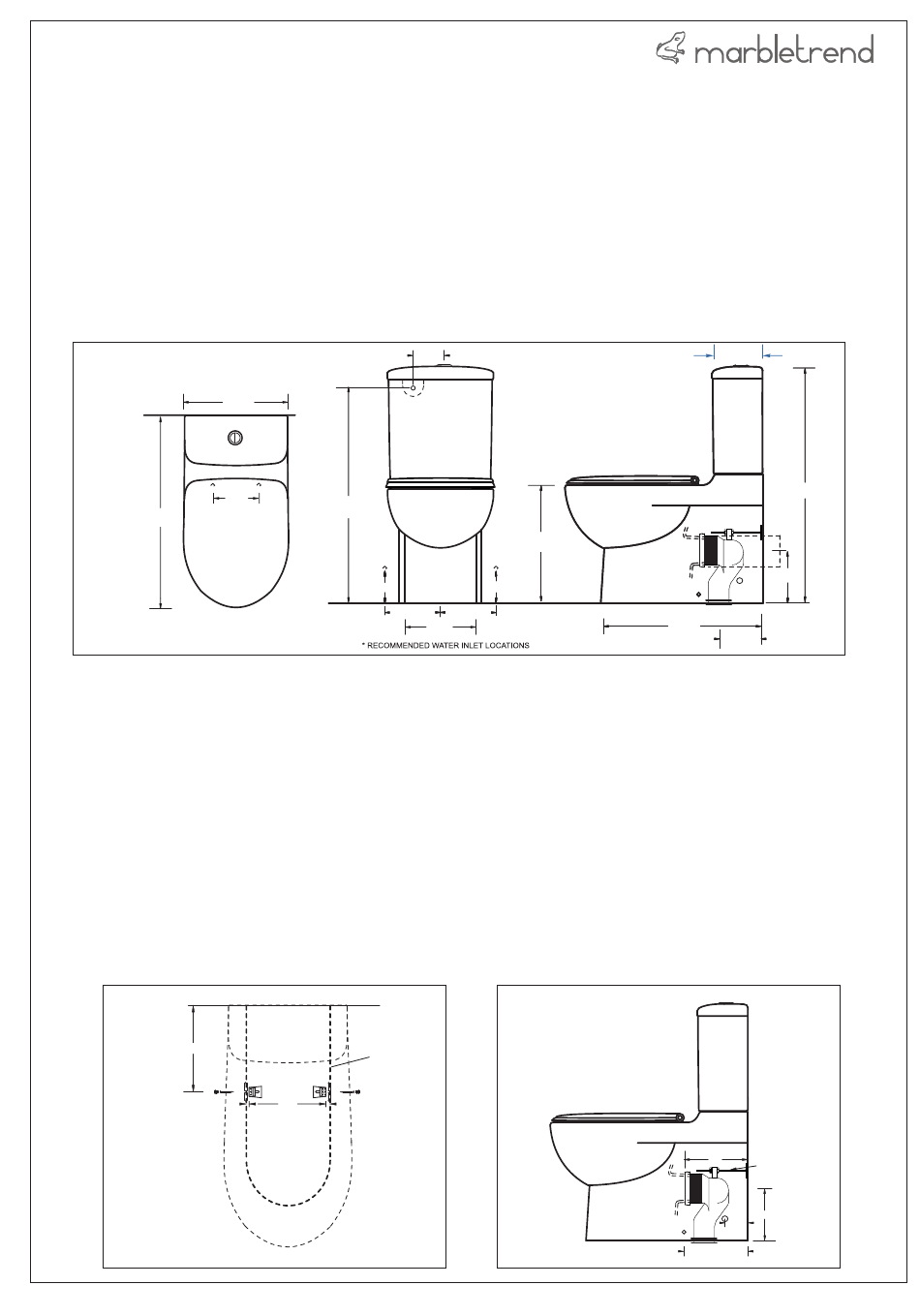

GENERAL DIMENSIONS
340
145
680
360
INSTALLATION STEPS
1. Inspect pan, cistern and seat for any transit damage before starting installation.
2. Check site roughing in, cistern tap position and assembly dimensions before starting installation. The WC must be
installed on a level surface.
3. Insert the threaded insert and hex nut to pan platform as in
4. Place the pan in position ensuring it is aligned with the centerline of the sewer connection. Mark the location of the
pan fixing bolt holes.
5. Remove pan and locate the position of the floor brackets. Drill the holes (10mm) to attach the floor fixing brackets.
DIAGRAM 1
6. For S Trap installation cut the threaded bracing prop on the pan connector elbow to the correct length to suit the set
out. Cut the pan connector fitting to the correct length(
job. Install the connector and screw the bracing prop to the back wall. Check the outlet connection fit with the pan
fully back against the wall.(
7. For P Trap installation a pan connector and extension will be required.
DIAGRAM 1
290
80*
745*
150*
220*
250
250
)
DIAGRAM 2
OUTLINE OF
FOOT OF PAN
Drill 10mm
Pan fixing bolt
fixing holes
400
150*
220*
DIAGRAM 4
mm from wall) and height(180mm from floor) to suit the
DIAGRAM 2
1/3
Code J1426
160
800
800
180
180
575
90-180
90-180
250
BRACING
PROP
180
100
290
I0091MT
Advertisement
Table of Contents
Summary of Contents for Marbletrend Milano
- Page 1 INSTALLATION INSTRUCTIONS MILANO FLUSH TO WALL SUITE Code J1426 DESCRIPTION This toilet suite is a fully concealed, back to wall suite that has a variable set out option. The suite is supplied with an adjustable S Trap connector fitting that permits a 90-180mm set out range. The suite can also be connected in a P Trap configuration (fittings not supplied).
- Page 2 INSTALLATION INSTRUCTIONS MILANO FLUSH TO WALL SUITE Code J1426 8. The water supply to the inlet valve must be connected in accordance with AS/NZ3500.1. Fit the blanking plug provided to seal the inlet hole in the base of the cistern and connect the flexihose to the water inlet.
- Page 3 MILANO FLUSH TO WALL SUITE Code J1426 INLET VALVE SERVICE 1. Water level adjustment TURN SCREW TO RAISE/LOWER FLOAT WARNING DO NOT USE CHLORINE/CHEMICAL SANITISERS IN THE CISTERN TANK. SUCH USE MAY RESULT IN DAMAGE TO TANK COMPONENTS AND WILL VOID THE PRODUCT WARRANTY 2.
Need help?
Do you have a question about the Milano and is the answer not in the manual?
Questions and answers
As previous question how do you remove the cistren to get to the inlet valve?
To remove the cistern on a Marbletrend Milano to access the inlet valve:
1. Turn off the water supply and flush the cistern to empty it.
2. Disconnect the water supply hose from the inlet valve.
3. Remove the cistern lid and buttons.
4. Unscrew the cistern fixing bolts and washers that secure the cistern to the WC pan.
5. Lift the cistern off the pan.
This gives access to the inlet valve for inspection or replacement.
This answer is automatically generated
@Mr. Anderson No access is available in this case from the pan. The screws are spinning but not loosening up?
@Magued Moftah any other ideas. Do i need to remove the pan itself?

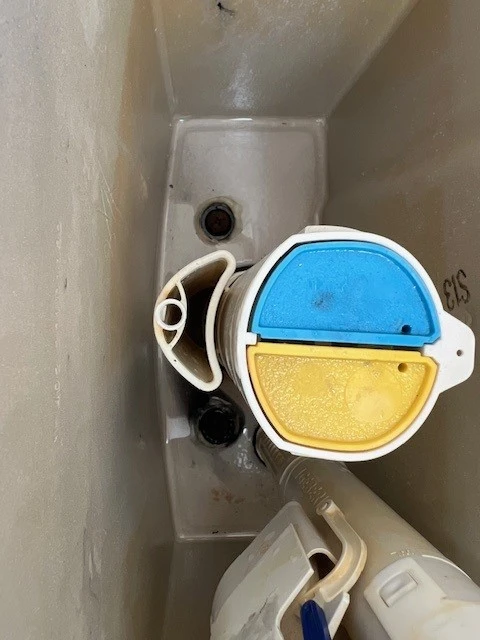

I have a Marbletrend cistern which I am trying to remove to get under to disconnect an inlet valve. The cistern screws are spinning without the cistern being disconnected. Any advice how to get to the bottom of the valve that is concealed inside the pan?
If the screws are spinning and preventing disconnection of the Marbletrend Milano cistern, it likely means the cistern fixing bolts are no longer gripping properly. To remove the cistern in this situation:
1. Access the cistern fixing bolts from underneath the WC pan.
2. Hold the bolt head with pliers or a wrench inside the cistern to prevent it from turning.
3. Use another tool (e.g., a screwdriver) to turn the nut from below the WC pan.
4. If the bolt continues to spin freely, use a cutting tool (like a hacksaw or rotary tool) to carefully cut through the bolt or nut.
Ensure the water supply is off and the cistern is empty before starting.
This answer is automatically generated

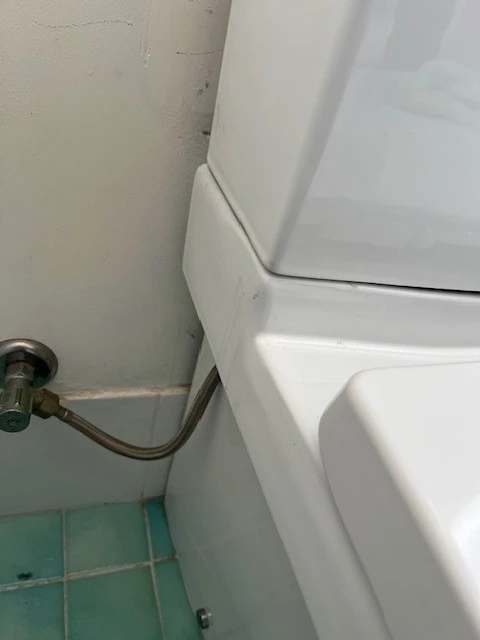

@Mr. Anderson There is no access behind the toilet pan. It is concealed fixing over the pan as shown in the image provided?
