Summary of Contents for Protec EVX-228

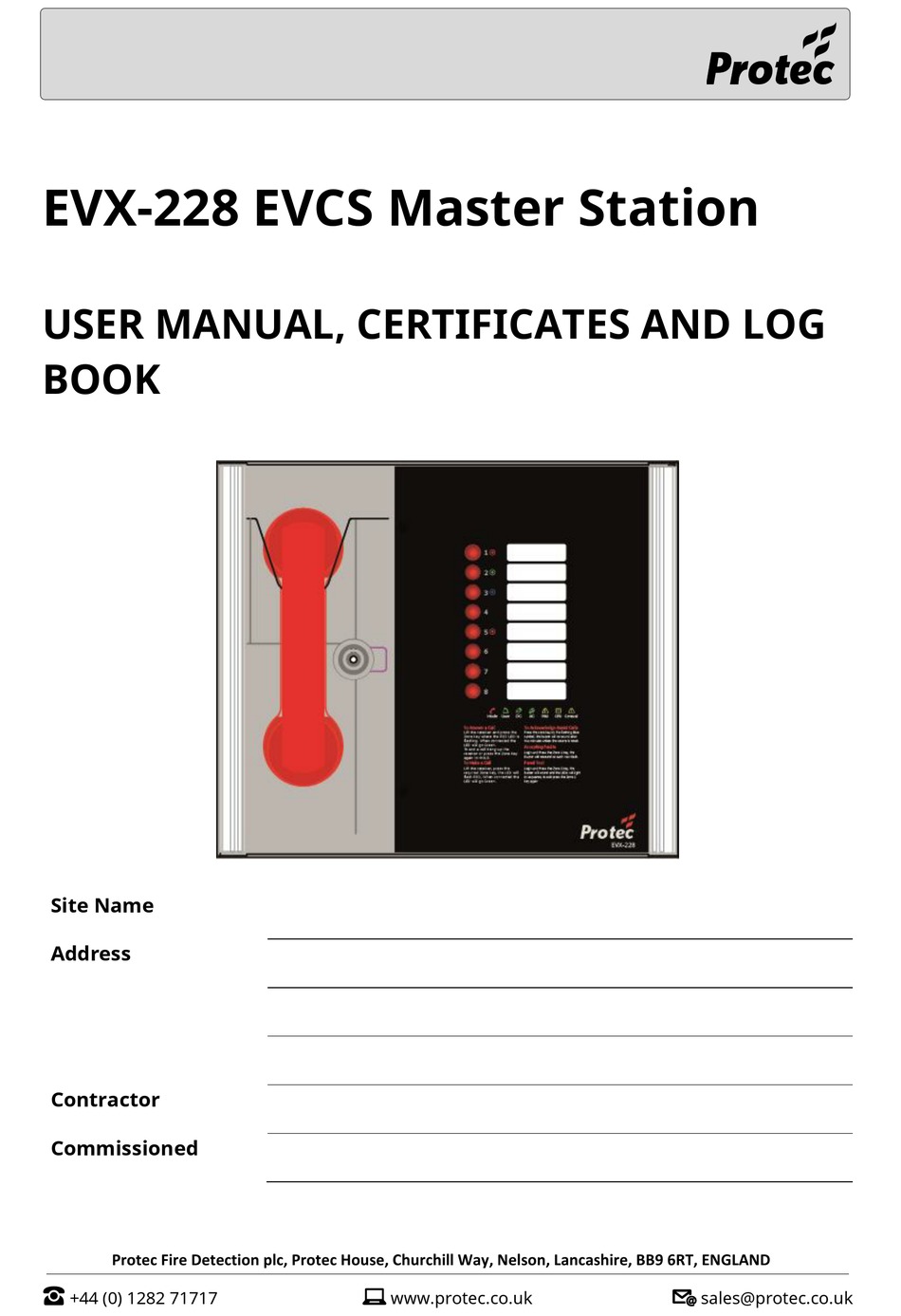

- Page 1 EVX-228 EVCS Master Station USER MANUAL, CERTIFICATES AND LOG BOOK Site Name Address Contractor Commissioned Protec Fire Detection plc, Protec House, Churchill Way, Nelson, Lancashire, BB9 6RT, ENGLAND ☎ �� �� +44 (0) 1282 71717 www.protec.co.uk sales@protec.co.uk...
-
Page 2: Table Of Contents
Power supply and CPU indicator Summary ..................8 User Indicator Summary ........................9 Zone indicator summary ........................9 6.0 MAINTENANCE..........................10 7.0 CERTIFICATE ............................. 11 8.0 SITE SPECIFIC INFORMATION: ......................12 9.0 TECHNICAL SPECIFICATION ......................15 RDM0021/0 Page 2 of 16 © 2017 Protec Fire Detection plc... -
Page 3: Introduction
EVX-228 Master Station also applies to the EVX-228 Repeater Station, unless specified otherwise. The EVX-228 Master Station has been designed for radial star topology. In most cases this will reduce the cable requirements for all ring-based systems. The topology consists of spurs formed of 1 off two core 1.5mm CSA cables (soft skin enhanced up to 500m per leg, MICC 200m per leg) to each... -
Page 4: Important Safety Information
Each EVX-228 Master/Repeater Station requires a 3A spur, returning to a breaker clearly marked “EVCS DO NOT TURN OFF”. If the EVX-228 Master Station and the EVX-228 Repeater Station are distributed around a site, it is essential that both EVX-228 Stations are on the same mains phase, as they are classified TEN 230V. -
Page 5: Battery Information
In the event of mains failure BS5839 Part 9:2011 requires battery backup for 24 hours standby and 3 hours operation thereafter. A EVX-228 Master/Repeater Station requires one number 12V 7AH vent regulated sealed lead acid battery. The battery is not supplied with the EVX-228 Master/Repeater Station. -
Page 6: Operation
Conference Call Depending upon the number of Line Cards fitted in the EVX-228 Master Station, up to eight lines can be connected to the conference call. See 4.1 for receiving a call, and 4.2 for making a call to each individual outstation. -
Page 7: Accepting Faults
All LEDs will illuminate in a predefined sequence, and the buzzer will sound. Press zone button 8 to stop the panel indicator test and to return to the menu options. RDM0021/0 Page 7 of 16 © 2017 Protec Fire Detection plc... -
Page 8: Indications And Controls
Remote Battery fault Flash Flash Remote Mains fault ✓ = LED illuminated x = LED off Flash= LED Flashing Note: When faults are accepted the general LED illuminates solid. RDM0021/0 Page 8 of 16 © 2017 Protec Fire Detection plc... -
Page 9: User Indicator Summary
Solid cyan Access level 2 Solid magenta Solid magenta Access level 3 Normal flash blue 2 Tone Alarm Incoming Assist Call alarm Solid blue Intermittent Assist call acknowledged double Beep RDM0021/0 Page 9 of 16 © 2017 Protec Fire Detection plc... -
Page 10: Maintenance
AFILS equipment and check battery health. Record results and any variations into the site Log Book 5 Yearly In addition to Yearly tests replace all batteries and record in Log Book. RDM0021/0 Page 10 of 16 © 2017 Protec Fire Detection plc... -
Page 11: Certificate
5, and an appointed responsible person should be nominated by the customer in accordance with the recommendations of Section 6 of BS5839 : Part 9 : 2011. Engineer Date Position Signature RDM0021/0 Page 11 of 16 © 2017 Protec Fire Detection plc... -
Page 12: Site Specific Information
Site Specific Information: Responsible Person Date Position Signature: Equipment Locations EVX228 Location ______________________________________________________________________________________ Cable ID Line Area Served RDM0021/0 Page 12 of 16 © 2017 Protec Fire Detection plc... - Page 13 Log Book Page 1 Date Event or Work Done Engineer Company Signature EVX System commissioned RDM0021/0 Page 13 of 16 © 2017 Protec Fire Detection plc...
- Page 14 Log Book Page __ Date Event or Work Done Engineer Company Signature Copy this page as many times as required RDM0021/0 Page 14 of 16 © 2017 Protec Fire Detection plc...
-
Page 15: Technical Specification
Enclosure Details Back box finish RAL 7035 Grey Dimensions 350 x 300 x 95 Entries 14 knockouts top, 2x rear slots Flush Cutout 352 x 302 x 85 deep RDM0021/0 Page 15 of 16 © 2017 Protec Fire Detection plc... - Page 16 The policy of Protec Fire Detection plc is one of continuous improvement. As such we reserve the right to make changes to product specifications at any time and without prior notice. Errors and omissions excepted.
