Summary of Contents for Mellerware VOGUE

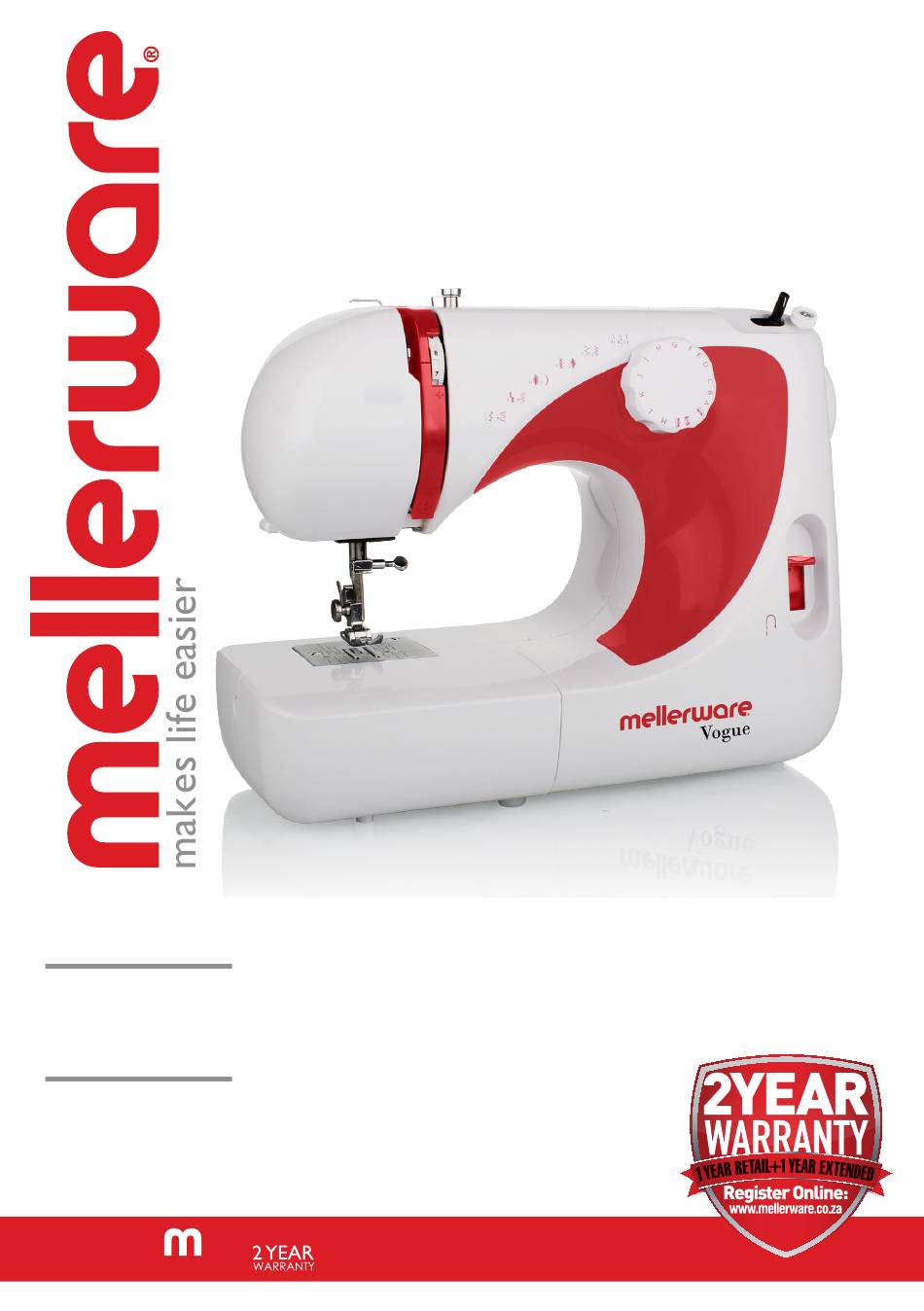

- Page 1 VOGUE sewing machine 13 Stitch functions Four step buttonholer Electric foot controller complies with Model: INTERNATIONAL IEC60335 23000 SAFETY SPECIFICATIONS...
- Page 2 Dear customer, 1. Parts description Thank you for choosing to purchase a Mellerware brand product. Thanks to its technology, design and 1. Reverse stitch lever operation and the fact that it exceeds the strictest 2. Stitch selector quality standards, a fully satisfactory use and long 3.
- Page 3 2.1.7. Do not use the appliance if the cable or plug is 2.2. Personal safety: damaged. 2.1.8. Ensure that the voltage indicated on the rating 2.2.1. CAUTION: Do not leave the appliance unat- label matches the mains power supply voltage before tended during use as there is a risk of an accident.
- Page 4 2.4.3. Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer’s 3.1.2.8. Turn the handwheel to close the clutch. liability null and void. 3. Instructions for use 3.1. Before use: 3.1.1. Connecting the power supply 3.1.1.1.
- Page 5 up. Slide the bobbin case onto the center lever. spindle of the shuttle, keeping the thread toward you. 3.1.4.3. Raise the presser foot lifter. This is neces- NOTE: Be sure the locating pin fits into the locating sary in order for the machine to be threaded correctly. groove at the top of the shuttle.
- Page 6 3.1.6. Adjusting top thread tension. 3.1.6.1. Balance of top tension - The tension is well balanced when the top threads lock in the middle of layers of the fabric you are sewing. 3.1.6.2. Rotate the thread selection dial to adjust top tention.
- Page 7 3.2.2.2. Overlocking - Tension 1 ~ 4 Use it for abutting and bluff finish of any fabric, start 3.2.2.5. Decorative Stitch - Tension 6~8 sewing from 0.3cm of fabric margin and make the Set the machine to the desired stitch by setting the needle drop outside of the margin at right.
- Page 8 sewing thread. -Tighten the left cord, move the cord to back of fabric with hand needle and then cut off the cord. 4.2. Changing the light bulb. 4.2.1. Ensure the power of the sewing machine is disconnected. 4.2.2. Remove lamp cove after unscrewing. 4.2.3.
- Page 9 centre if product is damaged or other problems arise. 5.2. If the connection to the mains has been dam- aged, it must be replaced and you should proceed as you would in the case of damage.
-
Page 10: Troubleshooting Guide
6. Trouble shooting guide Trouble Causes Solution Top thread broken 1. Improper top threading. Check or thread the top thread again; 2. Excessively tight top tension. Check or change the needle. 3. Blunt or bend needle. 4. Improper fixing of needle. 5. - Page 11 Durban Johannesburg 35 Adrain Road, Windermere, Unit 25 & 26 San Croy Office Park Durban, South Africa, 4001 Die Agora Road, Croydon, 1619 Tell: +27 31 303 3465 Tell: +27 11 392 5652 Fax: +27 31 303 8259 Fax: +27 11 392 1694 HELPLINE 086 111 5006...
