Spirent HellermannTyton MK9PUA Instruction Sheet

Troubleshooting
Problem Probable Cause
Tool will not operate. No air pressure.
Low air pressure.
Will not cut cable tie. Tool has reached
end of stroke.
Blade missing.
Cable tie is breaking Tension setting too high.
when applied.
Tool rod won't return Material wedged in
to forward position. nose area.
Dull or damaged Blade.
Poor cutting action.
Blade installed
backwards.
HellermannTyton North American Corporate Headquarters
7930 N. Faulkner Rd, PO Box 245017
Milwaukee, WI 53224
Phone: (414) 355-1130, (800) 537-1512
Fax: (414) 355-7341, (800) 848-9866
Email: corp@htamericas.com
A QS9000 & ISO 14001 Registered Company
HellermannTyton Canada
Phone: (905) 882-8024, (800) 661-2461
Fax: (905) 882-1624, (800) 390-3904
Email: sales@hellermanntyton.ca
© HellermannTyton Corporation
INSTMK9P — January 2005 — Printed in the U.S.A.
w w w . h e l l e r m a n n . t y t o n . c o m
Solution
Check air supply connection to be sure tool is
receiving air.
Check air supply regulator for proper
adjustment.Increase pressure if necessary.
Release trigger and squeeze again.
Install Blade.
Check the 2 selector knobs for proper setting for
cable tie being applied.
Depress and hold trigger while removing materials
from nose area.
Replace blade (See page 3).
Re-install blade.
HellermannTyton Mexico
Phone: (33-3) 659-7020, 011-52-33-3-659-7020 (From U.S.)
Fax: (33-3) 659-6939
Email: info@hellermanntyton.com.mx
MK9P & MK9PUA
Cable Tie Installation Tool Instruction Sheet
Nosepiece
Soft
Trigger
Cam Knob
(cable tie selection)
Fine Adjust Knob
(cable tie tension adjustment)

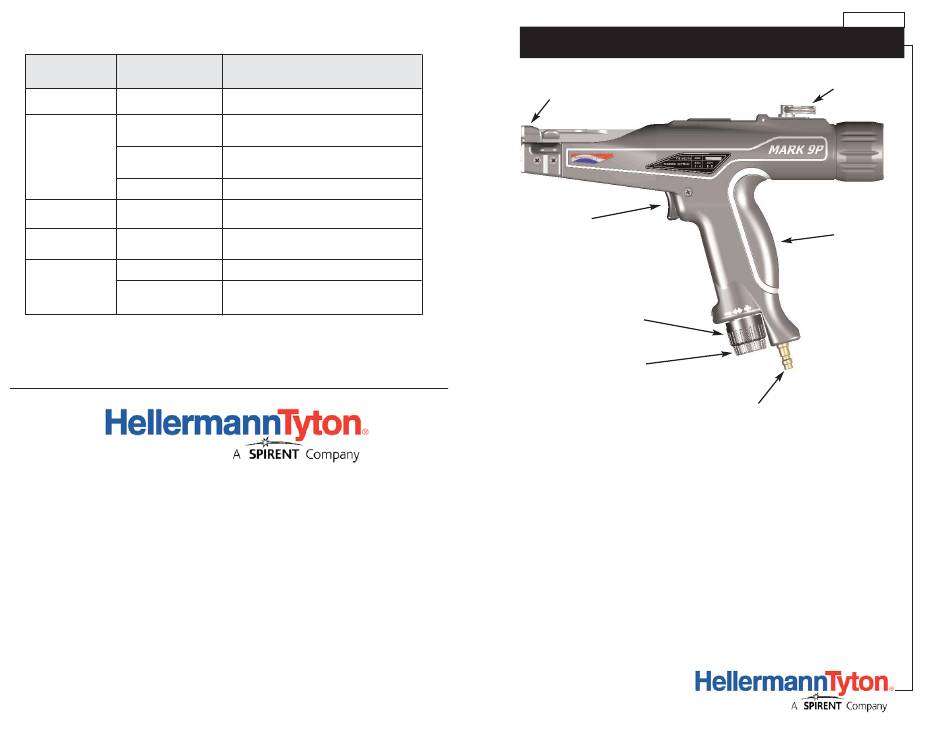

MK9P (lower air connection) shown
Assembly
Connect the 1/8" NPT to an air supply between 80 and 90 PSI.
Cylinder life can be lengthened by using a commercial air line mist lubricator.
Lubrication
The MK9P tool is pre-lubricated and sealed at the factory for an extensive
maintenance - free life.
Tool Maintenance
The MK9P tool has been designed to require no maintenance by the operator.
INSTMK9P
Swivel Hook
Soft Grip
1/8" NPT Male Air
Supply Connector
