Summary of Contents for Rojopa Heat STANDARD

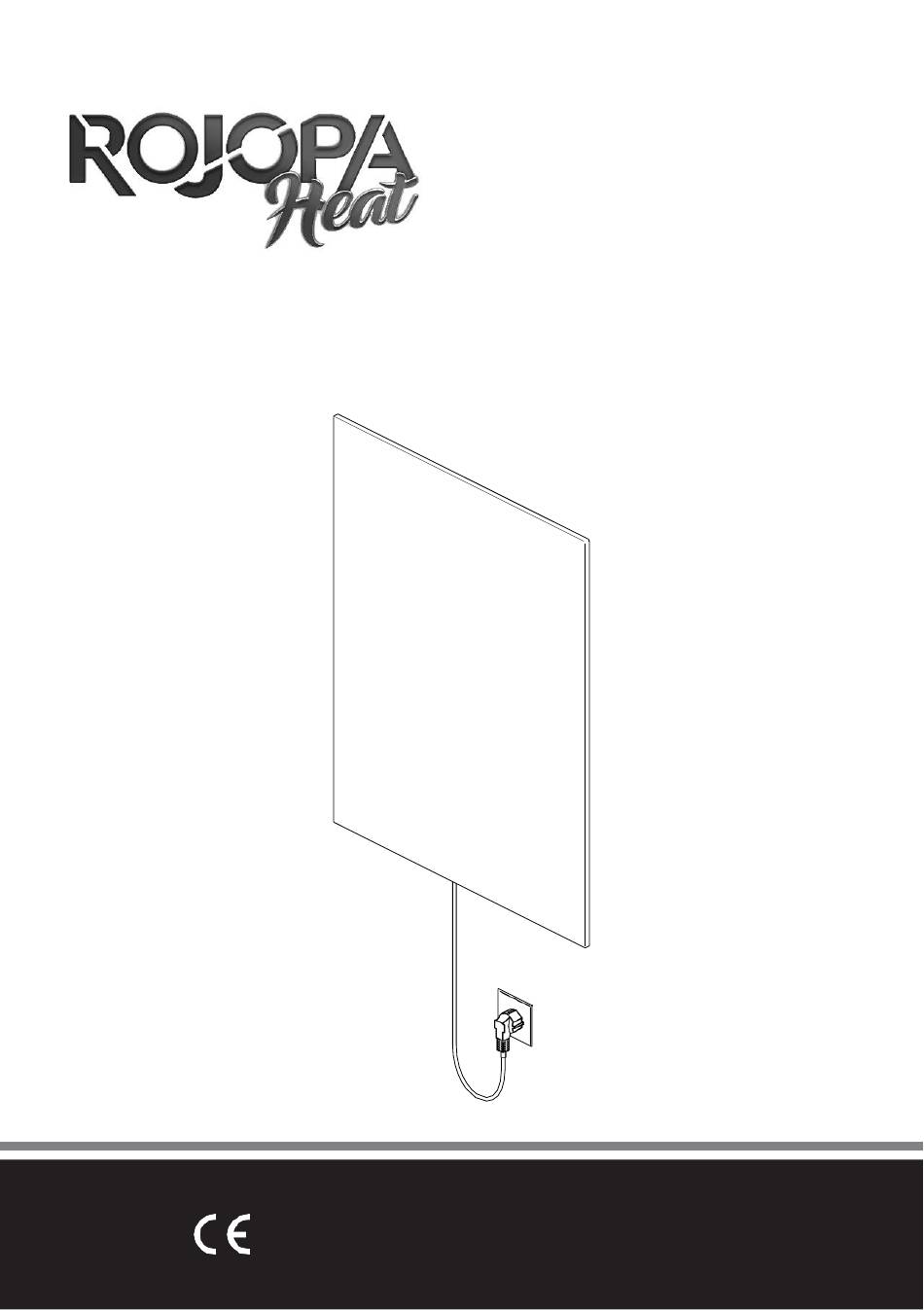

- Page 1 OPERATING AND ASSEMBLY INSTRUCTIONS For installers and end users Infrared heater September 2019 Version 1.02...
- Page 2 DISCLAIMER ROJOPA HEAT does not assume any warranties or guarantees with respect to this instruction and limits its liability for violation of any implied guarantee to the extent permitted by law to replace this instruction with another one. Moreover, ROJOPA HEAT reserves the right to revise this publication at any time, without having to notify anyone of this revision.
-
Page 3: Table Of Contents
Table of contents Introduction Description of the user Safety symbols used in this instruction: safekeeping instructions Obtaining documentation and information Internet Ordering documentation other languages 1.4 / Feedback on the documentation 1.4 / Support and Service 1.4 / 1.4 / Product descriptions 1.4 / Intended use and reasonably foreseeable misuse... - Page 4 Disposal Disposal of electronic devices Disposal of the package Guarantee, warranty statement, guarantee exclusion Assertion, presentation of the original proof of purchase, Applicable law Contact...
-
Page 5: Introduction
Introduction Description of the user This document is intended for the installer and the user of the ROJOPA HEAT infrared heater. Installation and electrical installation must only be carried out by a trained expert. Safety symbols used in this instruction "Hazard"... -
Page 6: Instructions
This is the operating Instruction in German. Instruction in other languages can be made available on request. 1.4 / Feedback on the documentation If you read ROJOPA HEAT product documentation on the Internet, you can submit comments via the support website (www.rojopa.com). Comments can also be. We look forward to your feedback. -
Page 7: Support And Service
1.4.5 Support and Service If you have further questions, for any other information, technical support, In case of queries about maintenance or to order user instructions, please contact: Rojopa Vertriebs GmbH Gniebing 125, A-8330 Feldbach +43 676 644 76 04 office@rojopa.com... -
Page 8: Product Descriptions
(e.g. in offices, shops and schools). The ROJOPA HEAT infrared heater is not intended for use outdoors or in small rooms. The device must not be used for cooking. The ROJOPA HEAT infrared heater should be used only with original accessories and components. - Page 9 Type of heat supply Electronic control of heat supply with ROJOPA HEAT control units and response to room temperature. Control The device must be connected to a grounded AC wall socket or supply line with a radio-controlled socket receiver, radio thermostat or...
-
Page 10: Product Elements
Product elements Infrared heater Power cable with mains plug mounting bolt holder Wall bracket Spacers... -
Page 11: Safety Instructions
Safety instructions Read all safety instructions and make sure you understand them. Warnings and safety information The device is designed for indoor use. Never use it outdoors. The device does not have a built-in temperature control (only temperature limiter). Therefore, the device must not be used in small rooms, occupants of which cannot leave them independently, unless constant monitoring is ensured. - Page 12 Never leave children unsupervised with the packaging material. The packaging material can cause death by suffocation. Children often underestimate the hazards. Always keep the packaging material away from children. Always be vigilant and always exercise caution. Do not use electrical appliances, if you have difficulty concentrating or if you lack the necessary awareness or are under the influence of drugs, alcohol or medication.
- Page 13 Persons, who are in a bathtub or shower, must never come into contact with the voltage. The device is to be used only within the specified performance limits. Ensure that the electric circuit can be broken immediately for instance via a circuit breaker or an FI-switch. Short circuits can cause electric shock.
-
Page 14: Explanation Of The Notes On The Device And The Package
Explanation of the notes on the device and the packaging Note: Meaning: The device complies with the respective European directives. The device fulfills the requirements of the RoHS directive. This device must not be disposed of as unsorted waste, but must be handed over at a special collection point. -
Page 15: Installation
20 cm should be maintained from the side. The device should not be installed near a bathtub, shower or swimming pool. In case of installation by a specialist company, the standard VDE 0100 Part 701, Part 702 and Part 703 Is to be used. -
Page 16: Installation Of Infrared Heater Disassembly
For installation in public places, compliance with the VDE 0108 is to be ensured. 4.2 / Installation of infrared heater The infrared heater should be mounted only with the provided suspension device. Installation and electrical installation should be carried out only by a trained expert. Drilling holes on the infrared heater is not allowed and could destroy your device. - Page 17 1.2 m above the floor in the children's room or in rooms, to which children may have access. A. Horizontal installation / ceiling installation. Note! The standard model is suitable for ceiling installation. Vertical installation / wall mounting...
- Page 18 Drill eight holes in the wall with the 8 mm drill. Insert eight wall plugs. Fix the holders (D) with the eight screws. Place the infrared heater (A) on the holders (D) with the mounting bolts (C). ATTENTION! Make sure that the infrared heater is completely cooled off.
- Page 19 Turn the four spacers (E) to lock the infrared heater.
- Page 20 9. Connect the infrared heater electrically. Select one of the following control components: Connect the mains plug to a radio socket receiver on a grounded wall socket. Connect the power cable (B) to a radio thermostat. WARNING! This permanent electrical wiring should be set up only by a trained expert. Connect the power supply cable (B) to an in-wall radio receiver.
-
Page 21: First Commissioning
We recommend using our high-quality radio thermostat for the most efficient and energy-saving heating of the ROJOPA HEAT infrared heater. -
Page 22: Maintenance And Cleaning
Maintenance and cleaning Maintenance of the product For cleaning the infrared heater: Disconnect the mains plug before cleaning the infrared heater or break the electric circuit with the safety switch. Make sure that the infrared heater is completely cooled off. Wipe the infrared heater with a soft cloth or chamois that is moistened with a solution of non-abrasive cleaning agent and a few drops of warm water. -
Page 23: Disposal
Disposal Disposal of electronic devices The symbol on the device, accessories or packaging indicates that this device should not be disposed of as unsorted waste, but is to be disposed of at a specific collection point! Dispose of the device at a collection point for the recycling and disposal of electrical and electronic Devices within the EU and in other European countries that have systems for the separate collection of electrical and electronic devices. -
Page 24: Guarantee, Warranty
Warranty statement Rojopa Vertriebs GmbH (hereinafter referred to as "Rojopa"), as the manufacturer of the ROJOPA HEAT infrared heater, warrants to the customer (hereinafter referred to as "customer"), in accordance with the following provisions, that the infrared heating element delivered to the customer within Europe (hereinafter referred to as "product ") , will be devoid of any functional errors related to all electronic components and cables within a period of five years after the conclusion of the purchase contract. -
Page 25: Assertion, Presentation Of The Original Proof Of
Attachments and installation have been carried out properly in accordance with the installation regulations of Rojopa and therefore the supply voltage and surrounding conditions have been complied with, no chemical or physical effects on the material surface resulting from improper use (such as the use of improper cleaning agents or by using sharp objects) can be traced on the product, as well as the product number of the product has not been removed or made unrecognizable. - Page 26 ATTACHMENT I - STANDARD ACCESSORIES Name Article number Chipboard screw WÜPOFAST 10000001 Plastic plus ZEBRA Shark W-ZK® 10000013 Holder for infrared back-panel 10000090...
- Page 28 Rojopa Vertriebs GmbH Gniebing 125 A-8330 Feldbach www.rojopa.com...
