Summary of Contents for Newton Waterproofing NEWTON DIALER

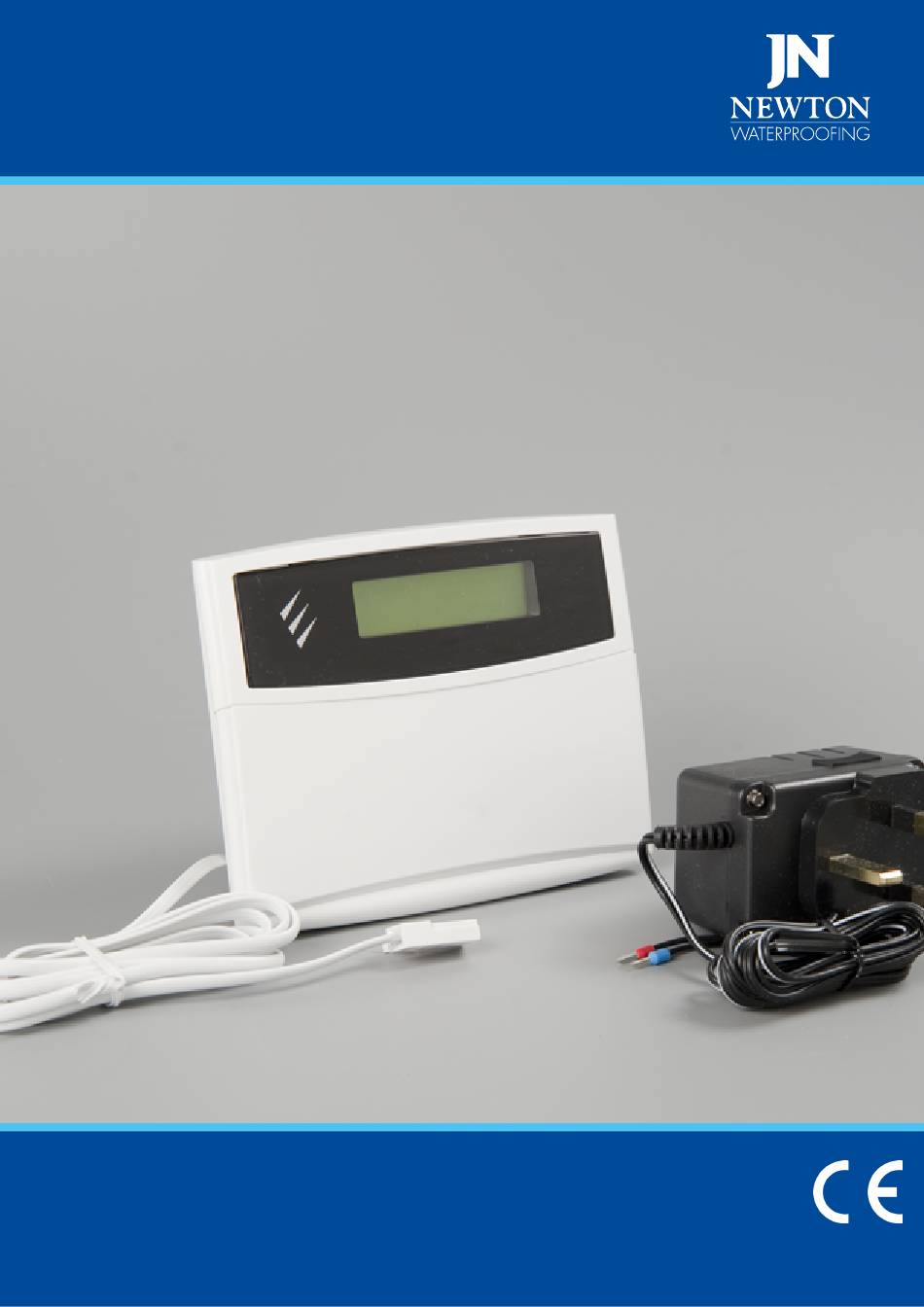

- Page 1 ® Pumps, Pumping Systems and Ancillaries NEWTON DIALER Operational Manual Enhanced Alarm Capability Rev 1.1 - 28 July 2017 © Newton Waterproofing Systems...
- Page 2 INTRODUCTION Newton Dialer provides a means of communicating alarm information from a Newton High Water Level Alarm (PA50), Newton Pump Controller (CP9) or Newton Control Panel Pro (CP2), to a standard or mobile telephone. The unit is normally included within systems that include a...
- Page 3 PAGE INPUTS CONTACTS VOICE MESSAGES TEXT MESSAGES ACKNOWLEDGEMENT CONTEXT SENSITIVE HELP PCB LAYOUT SPECIFICATIONS INSTALLATION & MOUNTING TRIGGER CONNECTIONS TELEPHONE CONNECTIONS & COMMISSIONING STANDARDS & WARRANTY Call us for more information on +44 (0)1732 360095...
- Page 4 INFORMATION INPUTS The Dialer has four trigger inputs; each input can be assigned a voice message and/or a text message (Speech & Text only). The trigger inputs are connected to the Newton Alarm (1 x Alarm trigger), Pump Controller (1 x Alarm trigger) or Control Panel Pro (3 x trigger outputs - Alarm, Power Cut &...
-
Page 5: Pcb Layout
PCB LAYOUT & SPECIFICATIONS Speech Dialler Installation Manual PCB Layout PCB LAYOUT 4 0V 12V Trigger Inputs Tamp OP1- OP2- 1. Telephone connections (TNV) Telephone connections (TNV) 2. Tamper switch (Not used) Tamper switch 3. Programmable outputs, tamper and remote microphone connections (SELV) 4. - Page 6 INFORMATION & INSTRUCTIONS INSTALLATION: GENERAL The unit requires a 12V @100mA DC power source. One of the following must be purchased with the dialer: a) If the Dialer is to be used with a Newton Victron Power Inverter Battery Back-up System, the battery Connection for Dialler is required - Purchase Code PA6.
- Page 7 Speech Dialler Installation Manual Speech Dialler Installation Manual CONNECTIONS & COMMISSIONING Connections to the Telephone Line Connections to the Telephone Line The easiest way to connect the dialler to the telephone line is to use the telephone The easiest way to connect the dialler to the telephone line is to use the telephone CONNECTIONS TO THE TELEPHONE LINE lead that is provided with the unit as shown below: lead that is provided with the unit as shown below:...
- Page 8 As a result the Speech Dialer is covered by a two-year warranty against defects in material or workmanship. Newton Waterproofing Systems standard terms and conditions apply and we will not accept responsibility or liability for any damages whatsoever based on a claim that the Dialer failed to function correctly.
