DIGITECH Audio CS2433 User Manual

8” active subwoofer with satellite output

Subwoof placement

The subwoofer should be placed facing the main listening position.

Connect your front speakers and your sound source to the subwoofer.

Turn it on and put on a piece of music which your are familiar with and set the Volume level.

You can now adjust the subwoofer level to the overall music level.

In the beginning, you'll need to get up & adjust the subwoofer volume, then return to your seat

to check the result. Once you determine the proper subwoofer volume, LEAVE IT ALONE...From

this point on, the subwoofer volume will rise & fall with the overall volume of the subwoofer.

Speciﬁcations :

- Power output: Satellite: 15W x 2 RMS

Bass: 30W RMS

- THD: <=0.5%

- Signal-to-noise ratio (ampliﬁer): >=85db

- Input impedance: 10K Ohms

- Input sensitivity: 380mV max

- Input port: Stereo RCA Line-in

- Frequency response: Woofer: 50 –150Hz variable

- Controllers: Volume, Subwoofer volume, Crossover frequency, On/Off

- Speaker impedance: 8 Ohms

- Bass driver unit: 8" cone, long throw

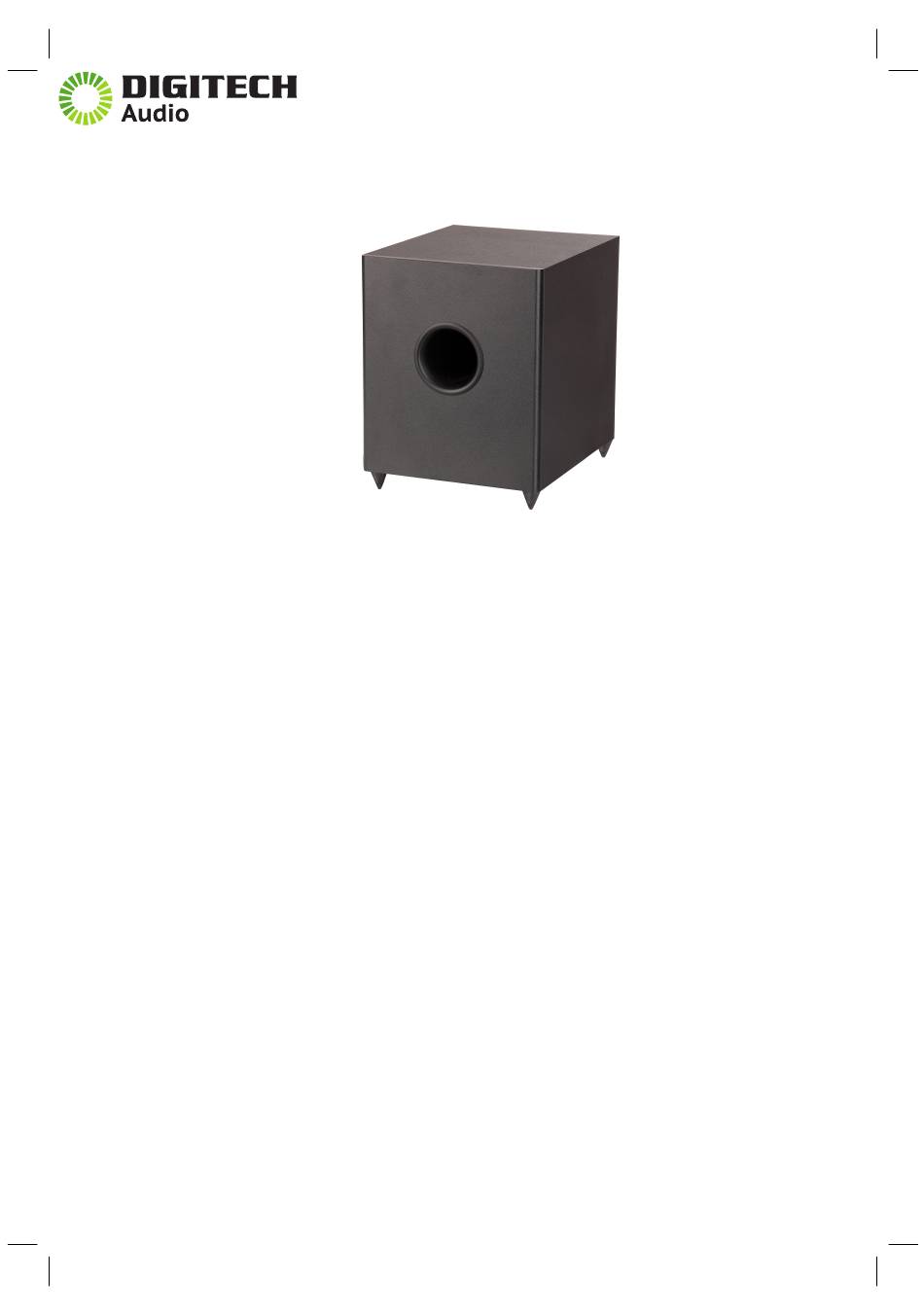

8" Active Subwoofer

With Satellite Output

CS2433

User Manual

Table of Contents

Need help?

Do you have a question about the CS2433 and is the answer not in the manual?

Page 1 8” Active Subwoofer With Satellite Output CS2433 User Manual Subwoof placement The subwoofer should be placed facing the main listening position. Connect your front speakers and your sound source to the subwoofer. Turn it on and put on a piece of music which your are familiar with and set the Volume level.
Page 2: Subwoofer Controls
Subwoofer Controls 1. Power Switch: This two-position switch controls the power status of the subwoofer. OFF turns the subwoofer off. ON turns the subwoofer ON, regardless of whether a signal is present or not. 2. Volume Level control: This rotary control adjusts the overall volume of the subwoofer system. 3.
