Binary input
Binary input 4-gang, 230 V
Art. No. 2114 REG
Binary input 8-gang, 230 V
Art. No. 2118 REG
Binary input 6-gang, 24 V
Art. No. 2126 REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Do not connect FELV and SELV/PELV systems together. When
connecting SELV/PELV systems, ensure safe isolation from other voltages.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
82540413
J:0082540413

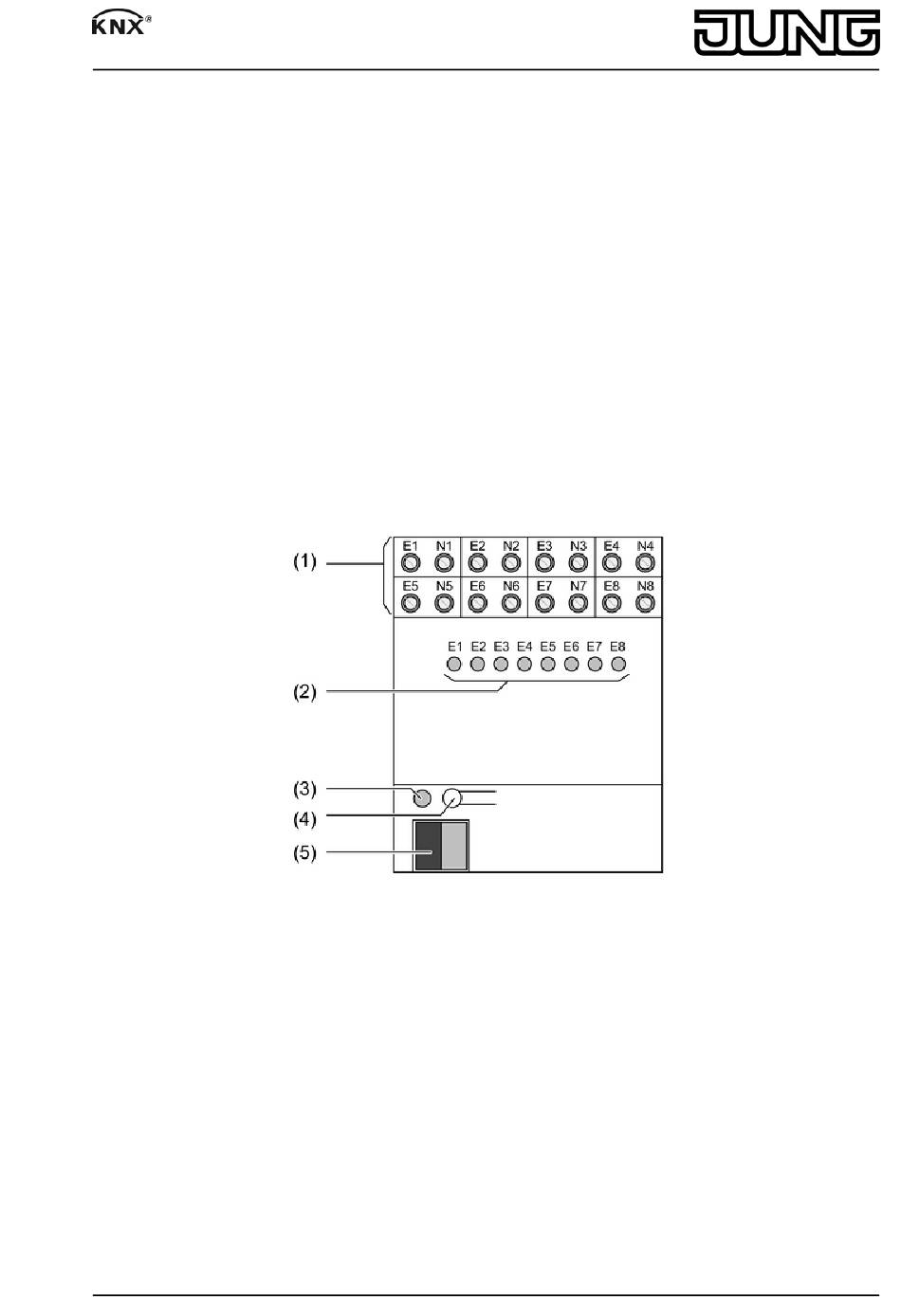

Figure 1: Binary input 8gang 230 V
1/7
06.08.2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung 2114 REG
Summary of Contents for Jung 2114 REG
- Page 1 Binary input Binary input 4-gang, 230 V Art. No. 2114 REG Binary input 8-gang, 230 V Art. No. 2118 REG Binary input 6-gang, 24 V Art. No. 2126 REG Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons.
- Page 2 Binary input Figure 2: Binary input 6gang 24 V (1) Connection for inputs (2) Status LED inputs, red On: voltage for signal level '1' present. Off: voltage for signal level '0' present. (3) Programming LED (4) Programming button (5) KNX connection 3 Function System information This device is a product of the KNX system and complies with the KNX directives.
- Page 3 Binary input Characteristics of 24 V binary input AC and DC voltages can be connected Separate reference potentials for inputs E1...E3 and E4...E6 4 Information for electrically skilled persons 4.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal.
- Page 4 Binary input Connect 24 V binary input Figure 4: Connection example for 24 V binary input For DC operation: observe polarity of the input voltage. Connect device as shown in the connection example (figure 4). Common reference potential for inputs E1...E3 and E4...E6. Installing the cover It is necessary to install a cover to protect the bus connection against hazardous voltages in the connection area.
- Page 5 Assign physical address. Load the application software into the device. Note the physical address on the device label. 5 Appendix 5.1 Technical data Binary input 4-gang, 230 V, Art. No. 2114 REG Mark of approval KNX medium TP 1 Commissioning mode...
- Page 6 Binary input Connection single stranded 0.5 ... 4 mm² finely stranded without conductor sleeve 0.5 ... 4 mm² finely stranded with conductor sleeve 0.5 ... 2.5 mm² Cable length max. 100 m Binary input 8-gang, 230 V, Art. No. 2118 REG Mark of approval KNX medium TP 1...
-
Page 7: Warranty
We provide a warranty as provided for by law. Please send the device with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
