GE KTS-250-16 Installation Instructions

Video distribution amplifier.
Hide thumbs


Advertisement

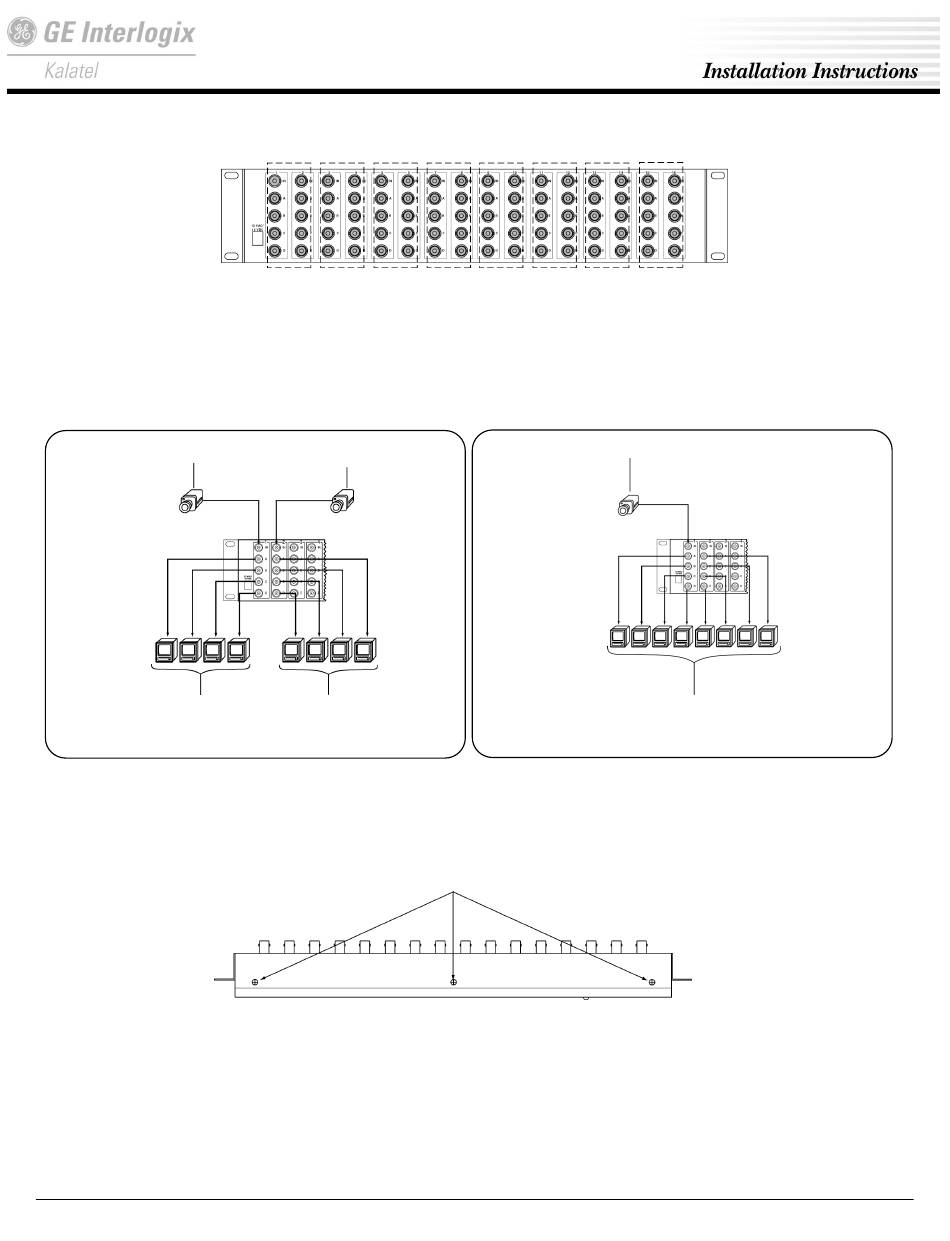

This unit distributes up to 16 composite video signals to multiple isolated outputs. Its input/output channels are internally
organized into eight pairs (see Figure 1).
Figure 1. Input/Output pairs
Each pair can be set to function in one of two modes: 2-input x 4-output, which distributes each video input to four
outputs; or 1-input x 8-output, which distributes one video input to eight video outputs (see Figures 2 and 3). All of the
unit's input/output pairs are preset to be in the 2-input x 4-output mode. If you intend to use this product in 2-input x 4-
output mode, skip the section on Selecting Modes and proceed to Installation.
Video 1 input
Video 1 outputs
Figure 2. 2-input x 4-output distribution mode
S
M
ELECTING
ODES
1)
Unscrew the cover screws on the top and bottom of the unit (see Figure 4).
2)
Remove the front cover.
Figure 4. Remove cover screws on top and bottom of unit
3)
Locate the mode selector switches on the circuit board (see Figure 5).
Note: When you are looking at the circuit board from the front, the mode selector switch on the far left controls input/output channels 15 and 16,
and the mode selector switch on the far right controls input/output channels 1 and 2.
4)
Slide each switch so that it lines up with the appropriate mode, 1 x 8 or 2 x 4 (See Figure 5).
5)
Reinstall the cover and the cover screws.
1036614B / February 2003
Video 2 input
Video 2 outputs
Technical Support: 800-469-1676
KTS-250-16 Video Distribution Amplifier
Video 1 input
Video 1 outputs
Figure 3. 1-input x 8-output distribution mode
1

Advertisement

Table of Contents

   Related Manuals for GE KTS-250-16

   Summary of Contents for GE KTS-250-16

  • Page 1 KTS-250-16 Video Distribution Amplifier This unit distributes up to 16 composite video signals to multiple isolated outputs. Its input/output channels are internally organized into eight pairs (see Figure 1). Figure 1. Input/Output pairs Each pair can be set to function in one of two modes: 2-input x 4-output, which distributes each video input to four outputs;...
  • Page 2 Note: It is not necessary to use all of the unit’s video inputs or outputs. Supply power to the unit (see Figure 6). Video input cable Video output cables Power input Figure 6. Cable connections 1036614B / February 2003 © 2003 Kalatel, a GE Interlogix company...
