Summary of Contents for TCS FVY1200-0600

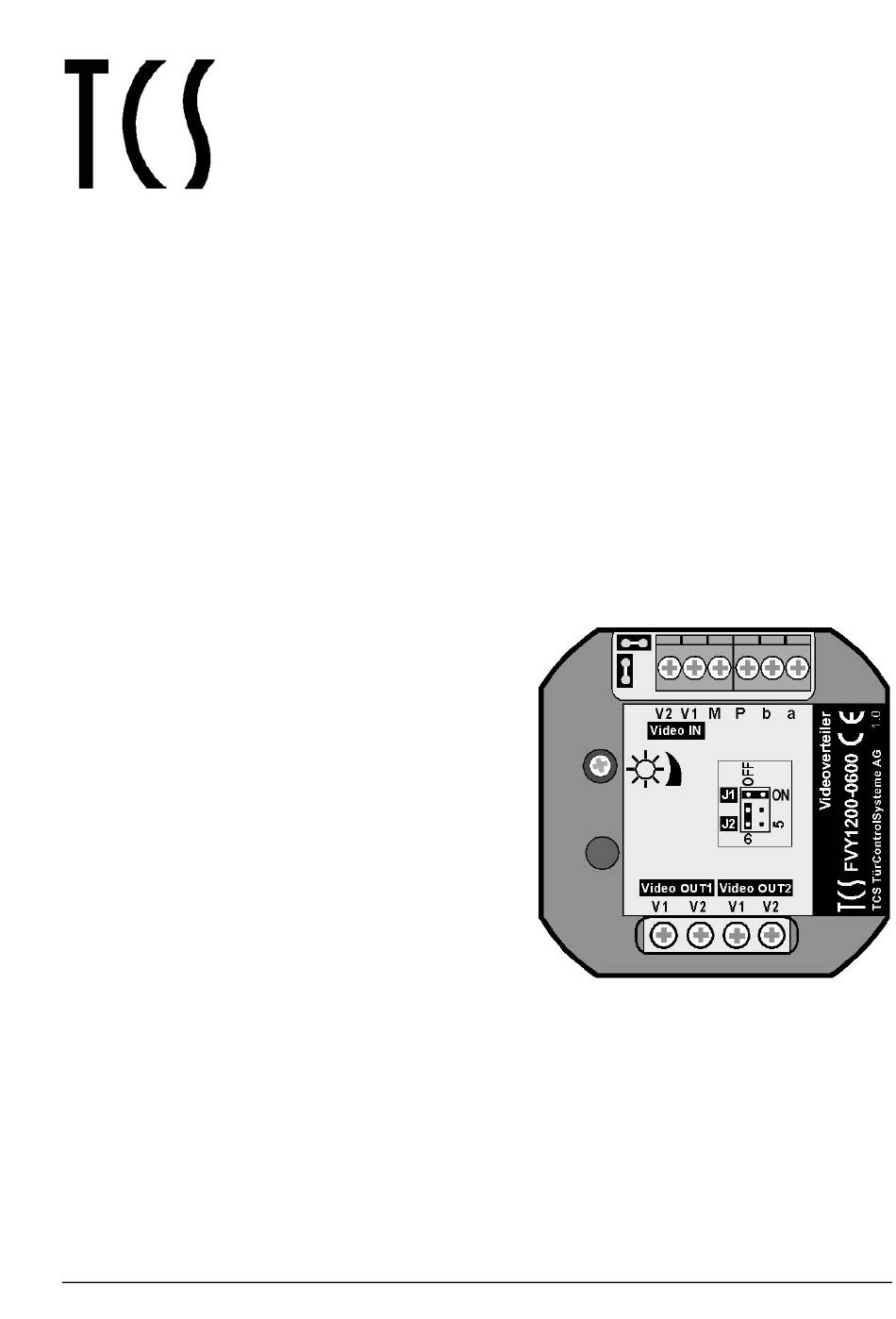

- Page 1 Product information Dual video distributor FVY1200-0600 for flush-mounting TCS TürControlSysteme AG • Geschwister-Scholl-Str. 7 • D-39307 Genthin Technische Änderungen vorbehalten. Tel.: 03933/879910 • FAX: 03933/879911 • www.tcs-germany.de PI_GB_FVY1200-x600_Art0017593_1v0.doc...
-
Page 2: Scope Of Delivery
For work on systems with 230 V AC mains voltage the safety requirements of DIN VDE 0100 must be observed. When installing TCS:BUS systems the general safety rules for telecommunication systems in accordance with VDE 0800 must be observed: • separate cabling for high and low voltage lines, •... -
Page 3: Device Overview
4 Vpp at 100 Ohm (by 1 Vpp at input) Application • The FVY1200-0600 accepts an video signal and distributes it to two active independent outputs. • The device is suitable for installation in a one gang box behind the front-door station or directly in the flush-mounted installation box of the flush-mounted front-door station. -
Page 4: Brief Description
0 dB (1 Vpp)* Maximum amplification 12 dB (4 Vpp)* * by 1 Vpp at input and 100 Ohm, terminated. Block circuit diagram TCS TürControlSysteme AG • Geschwister-Scholl-Str. 7 • D-39307 Genthin Technische Änderungen vorbehalten. Tel.: 03933/879910 • FAX: 03933/879911 • www.tcs-germany.de PI_GB_FVY1200-x600_Art0017593_1v0.doc... -
Page 5: Installation
• Always remove the termination resistor. Only if the device is installed as the termi- nal device at the end of a TCS:BUS video line, it has to be fitted! • For cable connecting auxiliar terminals are nessesary on site. - Page 6 Wiring diagramm 5-wire-connection Wiring diagramm 6-wire-connection TCS TürControlSysteme AG • Geschwister-Scholl-Str. 7 • D-39307 Genthin Technische Änderungen vorbehalten. Tel.: 03933/879910 • FAX: 03933/879911 • www.tcs-germany.de PI_GB_FVY1200-x600_Art0017593_1v0.doc...
- Page 7 FVY1200 as terminal device. Fitted (horizontal, fitted to both upper contacts), the video distributor is instal- led as the terminal device at the end of a TCS:BUS video line. It activates the termination resistor at the input.
- Page 8 1. Create a voice communication via the second person through the door communication system. See also the product information and operating instructions for the connected in-house and front-door stations and in "TCS Installer Audio". 2. Turn the brightness control, until the brightness is optimal.
