Summary of Contents for ASTEL CCTV TS 081

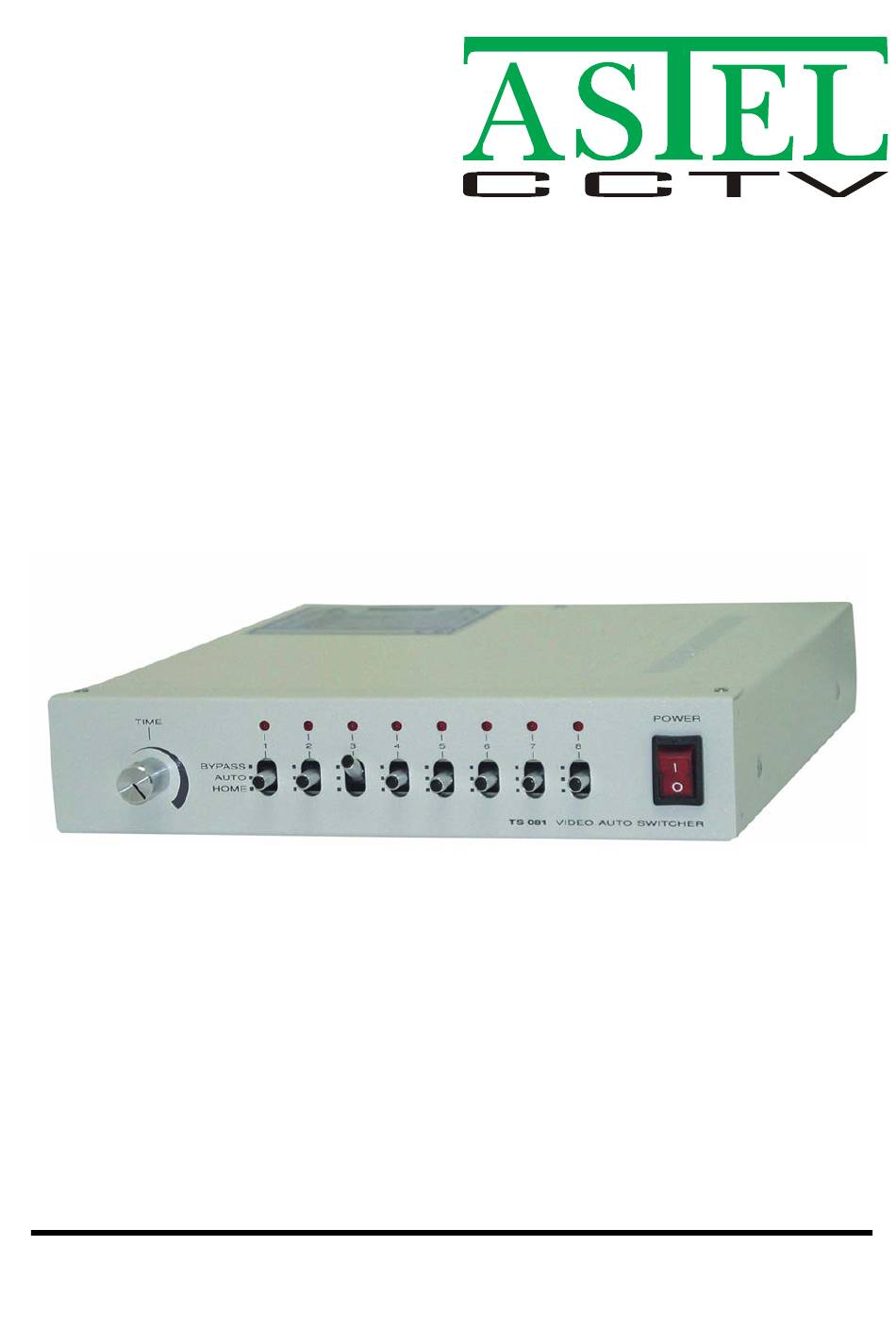

- Page 1 TS 081 VIDEO AUTO SWITCHER OPERATING INSTRUCTIONS v2.0...
- Page 2 CONTENTS Safety precautions ........................2 Preface............................3 Features............................3 Precautions ..........................3 Controls and connectors ......................4 Connections ..........................5 Specifications..........................5 SAFETY PRECAUTIONS In order to prevent any fatal accidents caused WARNING: by misoperation or mishandling of the video switcher, be fully aware of all the following THIS APPARATUS MUST BE EARTHED precautions.
- Page 3 PREFACE PRECAUTIONS The TS 081 is a video switcher which is Use only the power source specified on the suitable to connect up to eight cameras or rating label located on rear of the cabinet. other video sources.
- Page 4 CONTROLS AND CONNECTORS FRONT PANEL REAR PANEL MODEL No. TS 081 FUSE Ser.No: LED indicators - for each video input. Power cord. Sequential time adjustment. Video input connectors. By pass/auto/home selectors. Video output connector. Power switch. Fuse socket.
- Page 5 AC outlet before connecting to other equipment. Also refer to the instruction manual of the equipment to be connected. CAM 2 CAM 6 CAM 4 CAM 8 MODEL No. TS 081 FUSE Ser.No: CAM 3 CAM 7 AC MAINS CAM 1 CAM 5 SPECIFICATIONS Video input 1Vpp/75, BNC...
- Page 8 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 E-mail: sales@astel-cctv.com Web: www.astel-cctv.com...
