Summary of Contents for Tenker SM9126N

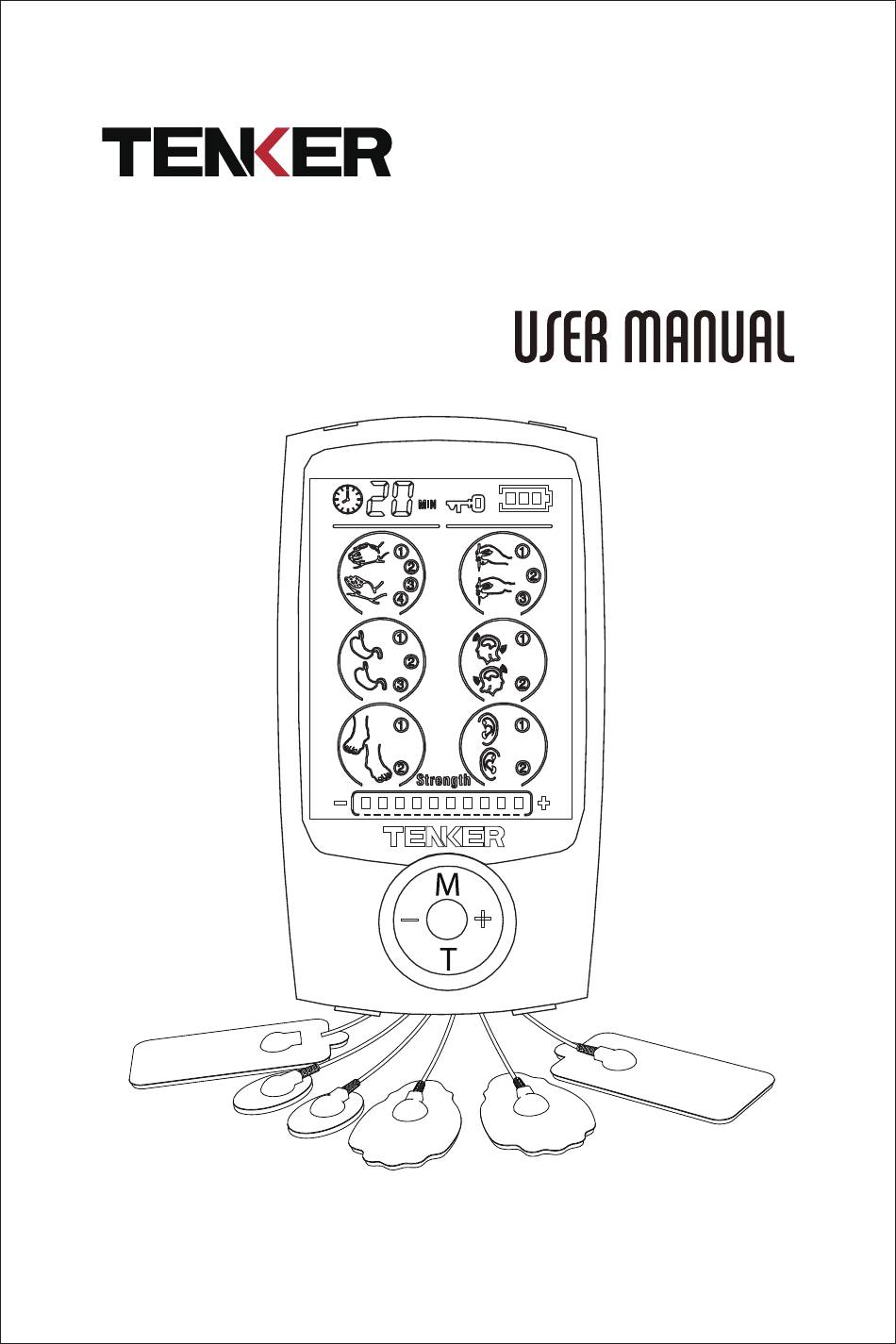

- Page 1 MINI MASSAGER SM9126N Explore Your Adventure www.tenker.co/warranty facebook.com/Tenkerofficial...
- Page 2 ACTIVATE YOUR 12 MONTH WARRANTY & GET EXCLUSIVE GIFT Register within 2 weeks after receiving your new product. PLEASE VISIT NOW www.tenker.co/warranty CUSTOMER SERVICE support@tenker.co @Tenkerofficial 1. Avoid touching the pads when the device is turned on. 2. Do not place pads near the heart, head or carotid.
- Page 3 A Big Thank You We’re thrilled that you have chosen to purchase the Electronic Massager Machine. At TENKER, we’re committed to providing you with products that enhance your daily life. We also aim to give our customers excellent support. Should you have any questions or...
-
Page 5: Table Of Contents
CONTENTS Introduction Safety Warning Transport and Storage Symbols Cleaning and Maintenance Product Specifications Set up Operating Instruction Mode Instruction Recommended Use Positions Recommended Practice Trouble Shooting Warranty Card Contact Information... -
Page 6: Introduction
@Tenkerofficial support@tenker.co INTRODUCTION This Electronic Pulse Massager is a user friendly product. This Electronic Pulse Massager delivers electronic impulses to tired and sore muscles. These impulses are generated by the device and delivered through electrodes to the direct proximity of the target muscles. The impulses mimic the action potential coming from the central nervous system to trigger contraction of the muscles. -
Page 7: Safety Warning
@Tenkerofficial support@tenker.co SAFETY WARNINGS Danger 1. Do not use this unit if you are using an implanted electronic medical device such as pacemaker or other life-maintaining device. 2. Do not use this unit if you are wearing electrode medical devices for monitoring health functions. -
Page 8: Transport And Storage Symbols
@Tenkerofficial support@tenker.co 11.Medical electrical equipment needs special precautions regarding 12.Portable and mobile RF communication equipment can affect medical electrical equipment. TRANSPORT AND STORAGE SYMBOLS Fragile, handle with care Type B applied part Keep the product in a Attention, see operating... -
Page 9: Cleaning And Maintenance
@Tenkerofficial support@tenker.co CLEANING AND MAINTENANCE Device 1.Please use a lightly moistened cloth to clean the device and wipe gently. 2.Make sure the device is off when you clean it. 3.Do not let water to get into the device. Pads 1.Make sure both pads not overlapping and make sure your skin is free from any dirt, oil or lotion. -
Page 10: Set Up

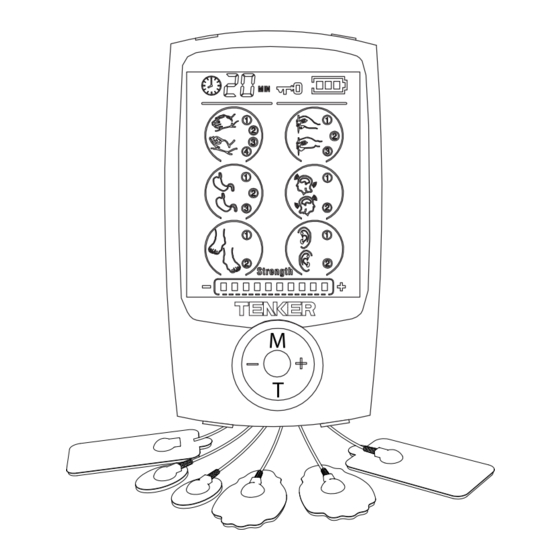

@Tenkerofficial support@tenker.co Features Big size blue LCD screen 2 outputs with 16 modes 20 level intensity 20 minutes default timer, can be adjustable from 10-60 minutes Rechargeable lithium battery Battery indicator to know when need to recharge battery AC adapter 110-240v, USB Charger 5v... - Page 11 @Tenkerofficial support@tenker.co 1. Two output connector 2. USB port 3. LCD screen 4. Battery indicator 5. On/ off switch 6. Intensity adjustment 7. Mode selector 8. Time adjustment 9. Built-in Mode Selector - 06 -...
- Page 12 @Tenkerofficial support@tenker.co 10. Pads- sticking board 11. Charger 12. USB cable 13. Massage pads 14. Pad wires - 07 -...
-
Page 13: Operating Instruction
@Tenkerofficial support@tenker.co OPERATING THE PRODUCT Connect the pads to the wire by clipping them on, and then remove the protective film. Place the pads where the massage sensation is desired, and plug into one of the ports on the device. For additional relief, repeat the procedure by putting another two pads on the desired area and plug into the second port. -
Page 14: Mode Instruction
@Tenkerofficial support@tenker.co MODE INTRODUCTION There are several modes to choose from; The "M" cycles through the 6 main modes, while the silver middle button allows choices (from 2 to 4 varieties) within that mode. There are 16 small modes in total: 1.Kneading... -
Page 15: Recommended Use Positions
@Tenkerofficial support@tenker.co RECOMMEND USE POSITIONS Mode 1,4,5,6,7,10,11 Mode 1,2,3,4,5 Attach both pads on the lower back Attach on pad below with the backbone in the center. and above the region in pain, Do not place on the backbone or spine. - Page 16 @Tenkerofficial support@tenker.co Mode 1,2,3,4,5,6,7,10 Mode 1,2,3,4,5,6,7,8,14,15 Attach both pads above the knee Attach both pads on the calf/leg or above and below joint. where you feel pain. (Do not place electrode pads simultaneously to the calves of both legs.) Mode 1,4,5,6,7,10,11,12,14,15,16 Mode 1,2,14,15 Attach pads per the illustration.
-
Page 17: Recommended Practice
@Tenkerofficial support@tenker.co RECOMMENDED PRACTICE Duration suggested for each skin area is 20 min and 2 times per day. Consult with your physician for longer and more frequent uses. Start from the lowest intensity and gradually adjust the intensity to a comfortable level at a scale from 1 to 20. -
Page 18: Trouble Shooting
If your device is not operating properly, please check below for common problems and suggested solutions. If the recommended action does not solve the problem, please contact the seller at Official email : support@tenker.co Tel No: 1-855-558-8666 Problem Possible Cause... - Page 19 @Tenkerofficial support@tenker.co Problem Possible Cause Solution No power source; no The battery capacity is Charge the battery display on LCD. depleted The battery is weak Charge the battery Power cuts off during The cord is broken Replace the cord Have you remove the Peel off film on the adhesive...
-
Page 20: Warranty Card
@Tenkerofficial support@tenker.co WARRANTY CARD Certificate of Quality Warranty Card Product model SM9126N Product name Electronic Mini Massager Date of purchase Purchase Location Retailer’s Name Retailer’s TEL Problems of the Product - 15 -... -
Page 21: Contact Information
@Tenkerofficial support@tenker.co CONTACT INFORMATION Manufactured by: Hong Qiangxing (Shenzhen) Electronics Limited Address:4F, Jingcheng Building,Xicheng Industrial Area, Xixiang Street,Bao'an District,Shenzhen, Guangdong,China Wellkang, Ltd Suite B, 29 Harley Street London, United Kingdom WIG 9QR OMGD INC ADD:245 East Main Street,Suite 115,Alhambra,CA 91801... - Page 22 ACTIVATE YOUR 12 MONTH WARRANTY & GET EXCLUSIVE GIFT Register within 2 weeks after receiving your new product. PLEASE VISIT NOW www.tenker.co/warranty CUSTOMER SERVICE support@tenker.co @Tenkerofficial 1. Avoid touching the pads when the device is turned on. 2. Do not place pads near the heart, head or carotid.
- Page 24 1-855-558-8666 (Mon - Fri 9:00 AM - 5:00 PM EST) Made in China...
