Selmo Dynamic Manual

Electronic control for towel heaters
Hide thumbs

Advertisement

Table of Contents

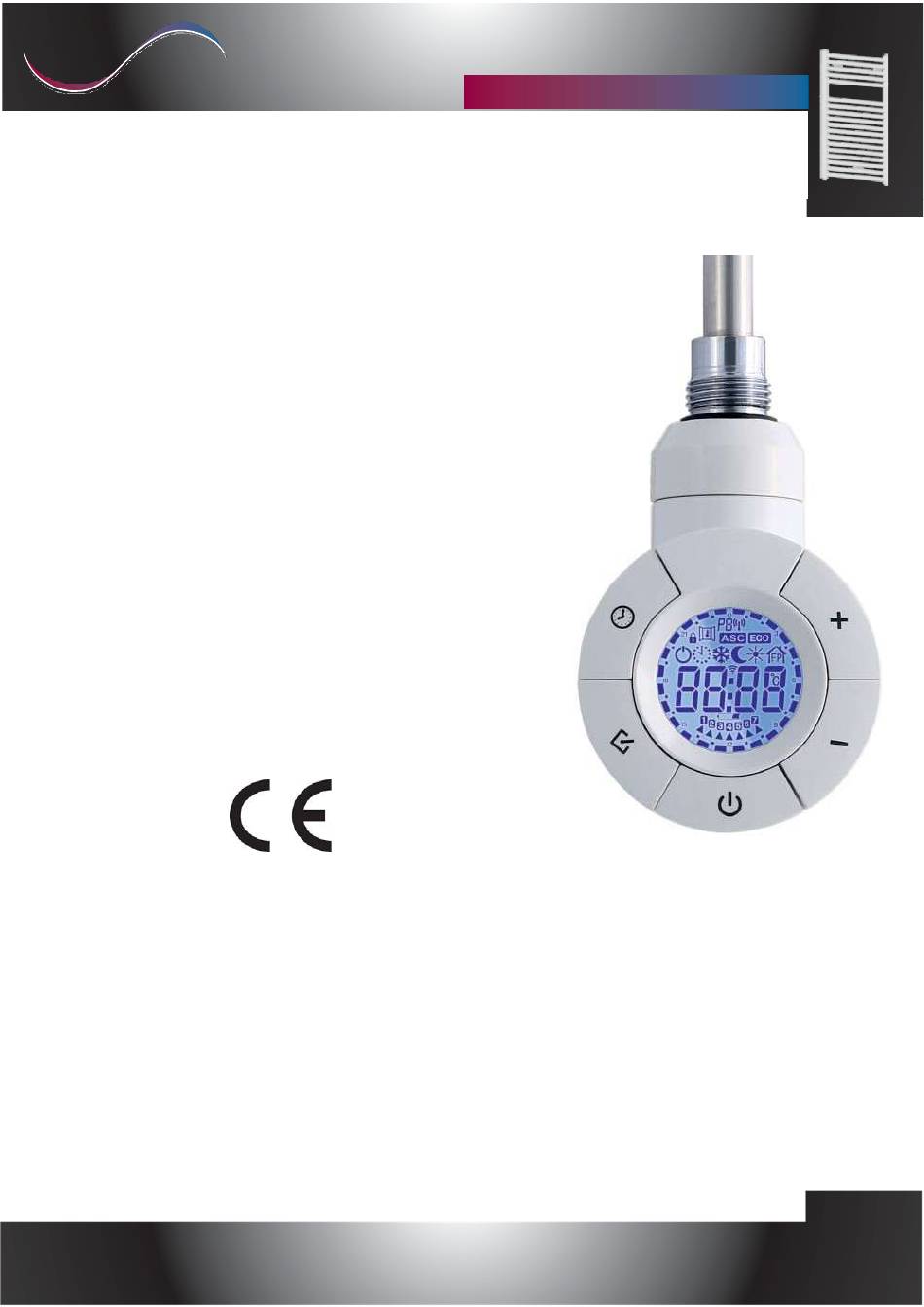

Selmo
Electronic control for towel heaters
Dynamic
is an advanced digital thermostat
for electric towel with fluid heat transfer and
control of environmental
temperature through ambient sensor.
Dynamic
is composed by a fixed unity
(placeable in the left or in the right of the
towel warmer) and its provided of a
particular heating element that can rotate
his body of 350°.
the backlight display offers a wide visual of
information about time , mode and
temperature.
Dynamic
is a certified product.
Dynamic
is according to directives:
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
EN 62233:2008
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001 + IS1:2007 + A2:2008 ===> Cat. 2
EN 61000-3-2:2014
EN 61000-3-3:201
Selmo
Electronic
Via Pacinotti, 24 - 35030 Rubano
"Dynamic"
(PD) Italy- Tel 049.8976761, Fax 049.8976085 -
Comfort technology division
Available colors: - White
Rev. Beta - March 2018
- Chrome
www.selmo.it
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dynamic and is the answer not in the manual?

Questions and answers

Joel Briscoe
April 9, 2025

can you let me know when this document was uploaded to ManualsLib please? this is important for some records I am collating for this product.

0

Subscribe to Our Youtube Channel

Summary of Contents for Selmo Dynamic

  • Page 1 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Dynamic is an advanced digital thermostat for electric towel with fluid heat transfer and control of environmental temperature through ambient sensor. Dynamic is composed by a fixed unity (placeable in the left or in the right of the...

  • Page 2: Functional Characteristics

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Functional characteristics Function mode: Comfort, Night, Antifreeze, Fil-pilote, Chrono, Timer 2h, Stand -by. - In ‘’Comfort’’ mode: the electronic control maintains the set temperature at the value set by the user.

  • Page 3: Technical Features

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Technical Features Functions Comfort, Night, Antifreeze (7°C), Stand-by, Chrono, Timer 2h, ECO, Fil-Pilote (on II Class), Open window detection, ASC Certifications Voltage and Frequency 230 VAC - 50 Hz Disponible Powers...
  • Page 4 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Caution Danger of electric shock. Disconnect the power supply before installation. Keep this instruction sheet carefully and read it carefully before using this device. •This device has been designed exclusively for use on towel warmers.

  • Page 5: Installation Instructions

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Installation instructions Installer use only • Disconnect the appliance from the mains before installation or maintenance. • Protect the device with a 30mAdifferential switch (RCD). Insert the heating element into the threaded opening in the lower part of the heated towel rail.
  • Page 6 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters DISPLAY key [ + ] key [Crono] BACKLIT Display: Offers a wide visual of information key [Prog] key [ - ] [On/stand-by] BODY Back Warming element NTC Probe 350° revolving...
  • Page 7 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Connection to the Fil-Pilote system (only for versions with "Fil-Pilote") Example Living room Bath Bedroom1 Bedroom2 Thermostat Thermostat Thermostat Thermostat class II class II class II class I "Fil-Pilote" HASE...
  • Page 8 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Current Chrono program Function: "Open window detection". ASC & ECO functions indicator "keys lock" icon. Function mode icons: 6- Fil-Pilote 5-Comfort; 4-Night; 3-Antifreeze; 2-Crono; 1-Stand-By Clock / selected temperature Comfort/Night bar "Chrono"...

  • Page 9: Operative Mode

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters COMFORT / NIGHT MODE Two different temperature levels can be set: - "COMFORT" TEMPERATURE: this is the temperature used for the "Chrono", "Fil-Pilote" and "Comfort" modes. - "NIGHT" TEMPERATURE: this is the temperature used for "Night" and "Chrono" modes.

  • Page 10: Chrono Mode

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters FIL-PILOTE MODE (Only for models equipped with "Fil-Pilote" connection). In "Fil-Pilote" mode the appliance is managed by a central system, which sets the operating mode for all connected thermostats. The device also recognizes the most advanced "Fil-Pilote" system with six orders that allows the use of the functions described below.
  • Page 11 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters CHRONO MODE c) To use a predefined mode (P1 P2 P3) or the programmable mode (P4) press the [Stand-By / ON] key and exit stand-by mode, press the [Prog] key until symbol appears in the display.

  • Page 12: Open Window Function

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Keys lock This feature allows the user to lock the keypad to prevent accidental changes. All buttons on the remote control are locked. To activate the key lock function, press [Prog] for 3 seconds. To deactivate the function, repeat the procedure.
  • Page 13 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters The thermostat is supplied in 2 different versions; in the first version on the lower left, the heating element is supplied together with the thermostat, already mounted. In the second version, however, it will be necessary to provide for the assembly of the element itself as supplied separately.
  • Page 14 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Assembly (For without resistance elements) 1- Remove the rear half of the plastic trim cover 2- Also remove the front half of the ring nut 3- Remove the 4 screws (A, B, C, D) of the rear cover to...
  • Page 15 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Heating element mounting 1- Place the resistive element in such a way that the two rubber o-rings match with the corresponding guides, in the plastic body of the chrono thermostat.

  • Page 16: Heating Element

    Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Heating Element The following resistive element is supplied. Below are the instructions for connecting the thermostat resistance. Rev. Beta - March 2018 Selmo Electronic Via Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel 049.8976761, Fax 049.8976085 -...
  • Page 17 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Assembly (For on-board heating element versions) 1- For versions with 2- Insert the heating resistance on board, only element into one of the the thermostat must be two lower holes of the installed.
  • Page 18 Selmo Comfort technology division “Dynamic” Electronic control for towel heaters Assembly (For on-board heating element versions) 5- Once assembled and 6- Insert the front part first, verified the circular with protruding and movement excursion, it will perforated flaps be necessary to mount the plastic protections for the resistance base.
