Texas Instruments MC-780PIx User Manual

Texas instruments ccd camera user's guide mc-780pix
Hide thumbs
Table of Contents

Advertisement

Quick Links

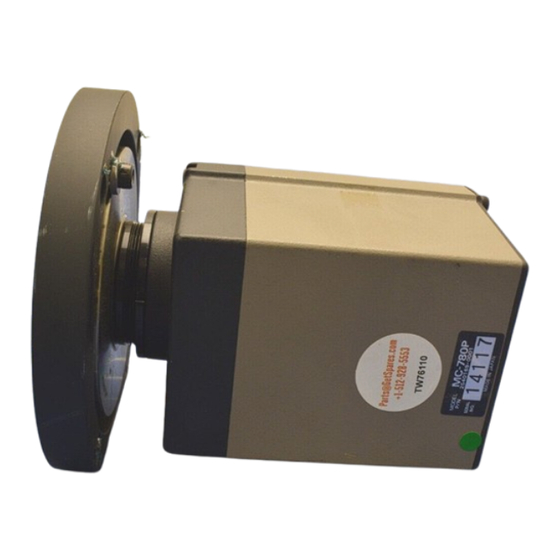

MC-780PIx CCD Camera
User's Guide
SOCU006
July 1998
Printed on Recycled Paper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-780PIx and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments MC-780PIx

Summary of Contents for Texas Instruments MC-780PIx

  • Page 1 MC-780PIx CCD Camera User’s Guide SOCU006 July 1998 Printed on Recycled Paper...
  • Page 2 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation of liability.

  • Page 3: Read This First

    About This Manual This User’s Guide describes the characteristics and operation of the MC-780PIA and MC-780PIH CCD Video Camera Modules. How to Use This Manual Use this manual for technical data, operating characteristics, and general fa- miliarization with the products before, during, and after installation. Information About Cautions and Warnings This book may contain cautions and warnings.
  • Page 4 If You Need Assistance If You Need Assistance . . . If you want to . . . Contact Texas Instruments at . . . Visit TI online Receive general information or assistance North America, South America: (214) 644–5580 Europe, Middle East, Africa Japan (Japanese or English) Korea (Korean or English): 82–2–551–2804...

  • Page 5: Table Of Contents

    Overview ............... . Main Features .
  • Page 6 Contents Random Shutter (Fixed V Sync) Random Shutter (V Sync Reset) VI Mode Shutter ............Precautionary Items .
  • Page 7 2–1 Rear Panel ..............2–2 External Synchronization Terminal Resistance Switch SW4 2–3...
  • Page 8 Tables Tables 2–1 Shutter Speed Control Switch SW1 2–2 External Synchronization Terminal Resistance Switch SW4 2–3 Mode Switches SW3 ............2–4 Shutter list .

  • Page 9: Overview

    This User’s Guide describes the operation and characteristics of the MC-780PIA and MC780PIH video cameras. This chapter gives an overview of the cameras and their features. Please read and keep this document as a reference. Topic Main Features ..........Other Features .

  • Page 10: 1.1 Main Features

    Main Features 1.1 Main Features The MC-780PIA and MC-780PIH are black-and-white video cameras that use fixed-sensor charge-coupled devices (CCDs). The following paragraphs de- scribe some of the main features of the cameras. 1.1.1 High Image Quality With 380,000 image-sensing elements, the CCDs reproduce very detailed images.

  • Page 11: 1.2 Other Features

    1.2 Other Features Long life span, high reliability Low distortion, high precision image High near infrared sensitivity Quick starting Other Features Overview...
  • Page 12 Overview...

  • Page 13: Nomenclature And Use Of Each Component

    Nomenclature and Use of Each Component This chapter describes the location and use of components, connectors, and controls. Topic Mounting System Rear Panel Switches and Terminals Internal Switches Nomenclature and Use of Each Component Chapter 2 ..........

  • Page 14: 2.1 Mounting System

    Mounting System 2.1 Mounting System The following paragraphs describe the mounting system for the camera modules. 2.1.1 Focus Ring C-Mount type lens and optical equipment are installed. If there is difficulty fo- cusing with the lens, fine adjustments can be made by loosening the two screws located on the ring.

  • Page 15: 2.2 Rear Panel Switches And Terminals

    2.2 Rear Panel Switches and Terminals This paragraph explains the functions of the rear panel switches and termi- nals. Figure 2–1 shows their locations. Changing Switch Settings Always disconnect power when changing the switch settings. Figure 2–1. Rear Panel (DC IN) (LENS) 2.2.1 Shutter Speed Control Switch SW1...

  • Page 16: Mode Switches Sw3

    Rear Panel Switches and Terminals Table 2–2. External Synchronization Terminal Resistance Switch SW4 Switch Position Left Center Right Figure 2–2. External Synchronization Terminal Resistance Switch SW4 Note: When outputting internal sync signal, set the switch to 100 k . 2.2.3 Mode Switches SW3 The SW3 mode switches control the functions listed in Table 2–2 and Table 2–4.

  • Page 17: Gain Variable Volume Control Vr1

    Table 2–5. Gain Mode Switch SW2 Figure 2–3. Gain Mode Switch SW2 2.2.5 Gain Variable Volume Control VR1 When variable gain is selected with gain mode switch SW2 in the right position, gain is increased by turning VR1 counterclockwise as shown in Figure 2–4. Figure 2–4.

  • Page 18: Dc In/Sync Terminal

    DC IN/SYNC Terminal The odd fields are low and the even fields are high for the pin 1 field index output. The pin 5 image signal is provided for auto-iris use so it cannot be con- nected to a monitor. The dc voltage output from pin 6 is the same as the input voltage.

  • Page 19: Internal Switches

    2.3 Internal Switches Remove the camera cover to set the internal switches. Viewing the camera from the front, the switches are located on boards in the center and the left. The center board is called the clock board, and the left board is called the pro- cess board.

  • Page 20: Internal Switches

    Internal Switches Table 2–9. Option Output Switch S1 Switch Position Upper Lower Figure 2–7. Option Output Switch S1 2.3.3 Gamma Switch SW1 Gamma switch SW1 changes the gamma characteristics as listed in Table 2–10 and shown in Figure 2–8. Table 2–10.Gamma Switch SW1 Switch Position Upper Center...

  • Page 21: Outline Emphasis Circuit On/Off Switch Sw2

    2.3.5 Outline Emphasis Circuit ON/OFF Switch SW2 Switch SW2 controls the outline emphasis circuit on the MC-780PIH. Do not move this switch on the MC-780PIA. The outline emphasis circuit makes the image easier to see by emphasizing the image outline when the camera is used for surveillance.
  • Page 22 2-10 Nomenclature and Use of Each Component...

  • Page 23: Using The External Sync Mode

    Using the External SYNC Mode The camera can be synchronized externally by inputting an external sync sig- nal. When using external sync, set the clock board’s sync signal input/output switch (SW1) to the external sync signal in (upper switch position) and switches 3 and 4 to the mode switch (SW3), located on the rear panel, to ON.

  • Page 24: External Sync Signal Input Conditions

    External Sync With Interlace 3.1 External Sync With Interlace On the rear panel, set switch 5 of mode switch SW3 to ON. 3.1.1 External Sync Signal Input Conditions HD signals: 15.734 kHz VD signals: 262.5 H Phase In Figure 3–1, when the last VD transition is between 47.42 s ahead and 16.13 s behind relative to the last HD transition, it becomes the ODD field.

  • Page 25: External Sync Signal Input Conditions

    3.2 External Sync With No Interlace On the rear panel, set switch 5 of mode switch SW3 to OFF. 3.2.1 External Sync Signal Input Conditions HD signals: 15.734 kHz VD signals: 244 ~ 1021 H, (see Notes 1, and 2) Phase Figure 3–2.
  • Page 26 Using the External SYNC Mode...

  • Page 27: Using The Shutter Modes

    Using the Shutter Modes This chapter describes the various shutter modes and how to use them. Topic Continuous Shutter ......... . . Random Shutter (Fixed V Sync) Random Shutter (V Sync Reset) VI Mode Shutter...

  • Page 28: Continuous Shutter

    Continuous Shutter 4.1 Continuous Shutter On the rear panel mode switch SW3, set switch 1 to ON and switch 2 to OFF. Use the shutter speed control switch SW1 to set the shutter speed. Figure 4–1 shows the continuous shutter speed control timing. Figure 4–1.

  • Page 29: Random Shutter Control Timing (Fixed V Sync)

    4.2 Random Shutter (Fixed V Sync) On the rear panel mode switch SW3, set switch 1 to ON and switch 2 to OFF. Use the shutter speed control switch SW1 to set the shutter speed. The random shutter operates only when the shutter command has been added, so continuous shutter is the normal operating mode.

  • Page 30: Random Shutter (V Sync Reset)

    Random Shutter (V Sync Reset) 4.3 Random Shutter (V Sync Reset) On the rear panel mode switch SW3, set switch 1 to OFF and switch 2 to ON. Use the shutter speed control switch SW1 to set the shutter speed. Figure 4–3 shows the random shutter speed control timing with V sync reset.

  • Page 31: Vi Mode Shutter Timing

    4.4 VI Mode Shutter On the rear panel mode switch SW3, set switches 1 and 2 to ON. At this point there will be no image output. When an external VI command is input, expo- sure will occur for the period of the command. This mode is only for non-inter- lace.

  • Page 32: Precautionary Items

    Precautionary Items 4.5 Precautionary Items Observe the following precautions when operating the electronic shutter. The CCD for this camera uses the frame transfer method. At shutter speeds of 1/500, 1/1000, and 1/1500 second, the exposure period and the transfer period conflict with the readout period. There is black output from the line count, which conforms to the shutter speed;...

  • Page 33: Modes And Initial Switch Settings

    Chapter 5 Initial Settings This chapter describes the modes of operation and the initial switch settings. Topic Page Modes and Initial Switch Settings ......Initial Settings...

  • Page 34: 5.1 Modes And Initial Switch Settings

    Modes and Initial Switch Settings 5.1 Modes and Initial Switch Settings With this unit it is possible to switch the operating modes to suit the intended use. All mode settings can be set with switches. Table 5–1 summarizes the modes and initial switch settings. Table 5–1.

  • Page 35: Precautions For Use

    Precautions for Use Topic Precautions for Use ......... . . Maintenance .
  • Page 36 Precautions for Use 6.1 Precautions for Use 6.1.1 Power Source The camera operates on +12 V. Use a stable ripple- and noise-free power source. 6.1.2 Heat Reduction To keep the temperature inside the camera from rising in some situations (such as when operating the camera inside a tightly sealed case) it may be necessary to use forced air conditioning.

  • Page 37: Maintenance

    Maintenance 6.2 Maintenance Use a blower to remove dirt or dust adhering to the CCD glass cover. Wiping the glass forcefully can damage the glass or create static electricity that can damage the CCD. Use a soft, dry cloth to clean dirt off the exterior. If it is extremely dirty, use a small amount of a neutral detergent on a cloth to remove it, and then wipe with a dry cloth.
  • Page 38 Precautions for Use...

  • Page 39: Optical Elements And Other Specifications

    This chapter lists the specifications for the cameras. Topic Image System ..........Optical Elements and Other Specifications Chapter 7 Specifications...

  • Page 40: Image System

    Image System 7.1 Image System Table 7–1 lists the image system specifications for the MC–780PIA; Table 7–2 lists specifications for the MC–780PIH. Table 7–1. MC–780PIA Image System Specifications Item Specification Imager Frame Transfer Method CCD (TI manufactured CCD TC241-30) Effective Pixel Count Sensor Screen Area 2/3 inch format (screen size 8.8 mm Signal System...

  • Page 41: Exterior Dimensions

    7.2 Optical Elements and Other Specifications Table 7–3 lists other specifications common to the two cameras. Table 7–3. Optical Elements and Other Specifications Item Specification Lens Mount C-mount Flange back 17.526 mm (can be fine adjusted) Synchronization System Internal/External Sync Input/Output HD/VD (signal level:TTL level) Jitter Within 60 nsec...
  • Page 42 Specifications...

  • Page 43: Exterior Dimensions

    Chapter 8 Exterior Dimensions This chapter lists exterior dimensions. Topic Page Exterior Dimensions ......... . Exterior Dimensions...
  • Page 44 Exterior Dimensions 8.1 Exterior Dimensions Figure 8–1 shows the exterior dimensions for the camera. The following notes apply: 1) unit:mm 2) Since the focus ring is adjustable, this is the middle value (1.2 mm). 3) The TI logo for the camera cover is a sticker with one adhesive side. 4) The shape and designation may change due to improvements.
  • Page 45 Figure 8–1. Exterior Dimensions Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Î Î Exterior Dimensions Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï...

  • Page 46: Exterior Dimensions

    Exterior Dimensions...

  • Page 47: Other Issues

    Chapter 9 Other Issues This chapter discusses cable and connector issues. Topic Page Connectors ........... Other Issues...
  • Page 48 Connectors 9.1 Connectors We do not sell cable connectors. They can be obtained from appropriate de- partments of Hirose Electrical Co. Main Business Office Gotanda I-S Building, 10th Floor 1-11 Osaki 5-chome, Shinagawa-ku, Tokyo 141 Telephone: (03)3492-2162 Fax: (03)3490-9229 Osaka Business Office 2-22 Tai deramachi, Kita-ku, Osaka 530, Osaka Telephone: (06)312-4661 Fax: (06)312-4335...
  • Page 49 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation of liability.
