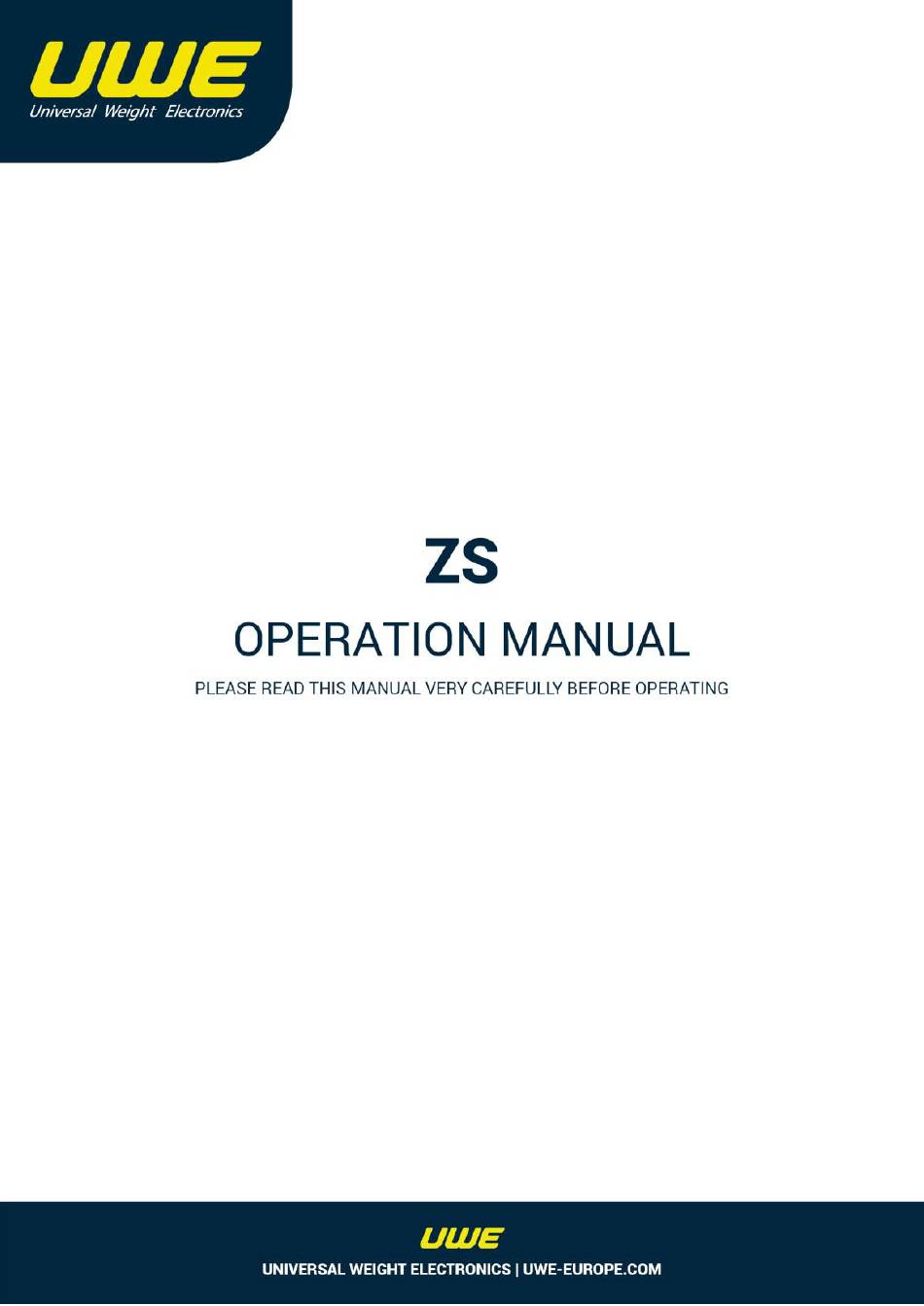

Summary of Contents for Universal Weight Electronics ZS Series
-
Page 2: Table Of Contents
INDEX Installation Specifications Key Layout & Functions Internal Functions Initial Setup Instructions for Use Error Codes & Troubleshooting Daily Care & Maintenance... -
Page 3: Installation
INSTALLATION 1. Check and make sure that the following accessories are included: Operation Manual X 1 ZS Scale X 1 Stainless Steel Platter X 1 Power Adaptor X 1 Contact your dealer if any item is missing. 2. Install stainless steel platter. 3. -
Page 4: Specifications
SPECIFICATIONS Model Capacity Division ZS-600 600g/1lb 5.195oz 0.1g/0.005oz ZS-1200 1200g/2lb 10.40oz 0.2g/0.01oz ZS-3000 3000g/6lb 9.98oz 0.5g/0.02oz ZS-2500 2500g/5lb 8.50oz 1g/0.05oz Power 9V battery or External Power Adaptor Source Max. Zero 2% of Rated capacity Range Max. Tare 100% of Rated capacity (Subtractive) Range Weight Units Metric (g), Avoirdupois (lb &... -
Page 5: Key Layout & Functions
KEY LAYOUT & FUNCTIONS OFF KEY Press this key to turn scale off. ON/ZERO KEY Press this key to turn scale on or set weight to zero. TARE KEY Press this key to tare off the weight of a container. MODE KEY Press this key to switch between weight units. - Page 6 KEY LAYOUT & FUNCTIONS ZERO INDICATOR This indicator appears to indicate zero weight status. MINUS INDICATOR This indicator appears to indicate negative weight values. LO-BAT INDICATOR When this indicator appears, recharge the scale immediately. WEIGHT INDICATOR Displays the weight of the item placed on the scale. NET INDICATOR This indicator appears to indicate the tare function is in operation and weight shown is net weight.
-
Page 7: Internal Functions
INTERNAL FUNCTIONS The scale is equipped with 12 internal functions, which are: FUNCTION FUNCTION DESCRIPTION NUMBER Fun 1 For Qualified Technical Personnel Only Fun 2 Check Display Segment Fun 3 Select Auxiliary Weight Units Fun 4 Select Auto Power Off **Fun 5 Select Rs-232 Baud Rate &... - Page 8 INTERNAL FUNCTIONS ** Fun 5, Fun 7, Fun 8, Fun 12, and Fun 15 have been reserved for future use; they are not functional. Do not alter any parameters set in Fun 1 & 19, which may cause system unstable, error, or non accurate weighing result. If entered by mistake, press OFF immediately.
-
Page 9: Initial Setup
INITIAL SETUP How to select internal functions Turn scale off b. Press and hold TARE, then press ON/ZERO Scale displays Fun-1 d. Press TARE until scale displays the desired internal function number Press MODE to enter and trigger various setting values. Press TARE to select g. - Page 10 INITIAL SETUP Below numeric number 600.1 is the capacity and division of MII-600 (600g x 0.1g), which is used for illustration. 600.1 g (metric only) 600.1 g lb/oz (metric and Avoirdupois weight unit enable) 6.0.0.1 g lb/oz (metric, Avoirdupois and Taiwanese weight units all enable) Select Auto Power Off Function 5 parameters are available: -...
- Page 11 INITIAL SETUP Select Digital Motion Filtering Function 3 parameters are available: Filt.0 (filtering function disable) Filt.1 (filter 1) Filt.2 (filter 2) Use digital motion filtering function when the operation environment is subject to disturbances like vibration, wind flow, etc. Select higher filter values for worse environments. Filt2 gives the slowest response compared with other 2 parameters.
-
Page 12: Instructions For Use
INSTRUCTION FOR USE Before Weighing Make sure that The scale is placed on a level and strong surface. The stainless steel platter is placed correctly on top of load receptor. The scale is turned on. The ZERO INDICATOR is on. If not, press ON/ZERO to set display to zero. - Page 13 INSTRUCTION FOR USE Selecting Weight Unit Press MODE to shift among various weight units (gram, lb/oz and Taiwanese) with or without backlight if required. Refer to page 8 for internal setting procedures. The weight unit (used before power off) would be employed when the scale is turned on again.
- Page 14 INSTRUCTION FOR USE After TARE is pressed, NET INDICATOR and then a zero weight value would be displayed. In this case, the ZERO INDICATOR will not appear even though a zero weight is displayed. Refer to page 11 for weighing procedures. Weight displayed is the net weight of the subject matter.
- Page 15 INSTRUCTION FOR USE Lo-Bat Indicator When the LO-BAT INDICATOR appears, it means that the battery is faded out. Replace all battery with new ones, or apply the external power adaptor immediately. Caution When the power adaptor is being used, remove all batteries from the battery pack.
-
Page 16: Error Codes & Troubleshooting
ERROR CODES & TROUBLESHOOTING Error Codes Error Code Description Nostbl Calibration weight is not stable Err_1 IC U2(93C46) failure Err_2 Offset Value too low Err_3 Offset Value too high Troubleshooting Syndrome Scale cannot be turned on Check: Is the scale powered or battery faded out? Action: Replace the battery with a new one or apply the power adaptor. - Page 17 ERROR CODES & TROUBLESHOOTING Syndrome Scale turned off automatically Is the AUTO POWER OFF FUNCTION being employed? Refer to page 9 in the Select Auto Power Off Function to disable the Auto Power Off Function. Check: Is the LO-BAT INDICATOR on? Action: Replace the battery with a new one, or apply the power adaptor immediately.
-
Page 18: Daily Care & Maintenance
DAILY CARE & MAINTENANCE Clean the scale with a soft and damp cloth. If necessary, apply a mild detergent. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary.
